The following setup and installation diagrams show the different video and audio connections to TV, VCR or CD
Recorder
Important
Make sure the ACVoltage matches yourlocalvoltage.
Connect the AC cord only after the speakers, antennas, and all optional equipment have been
connected,

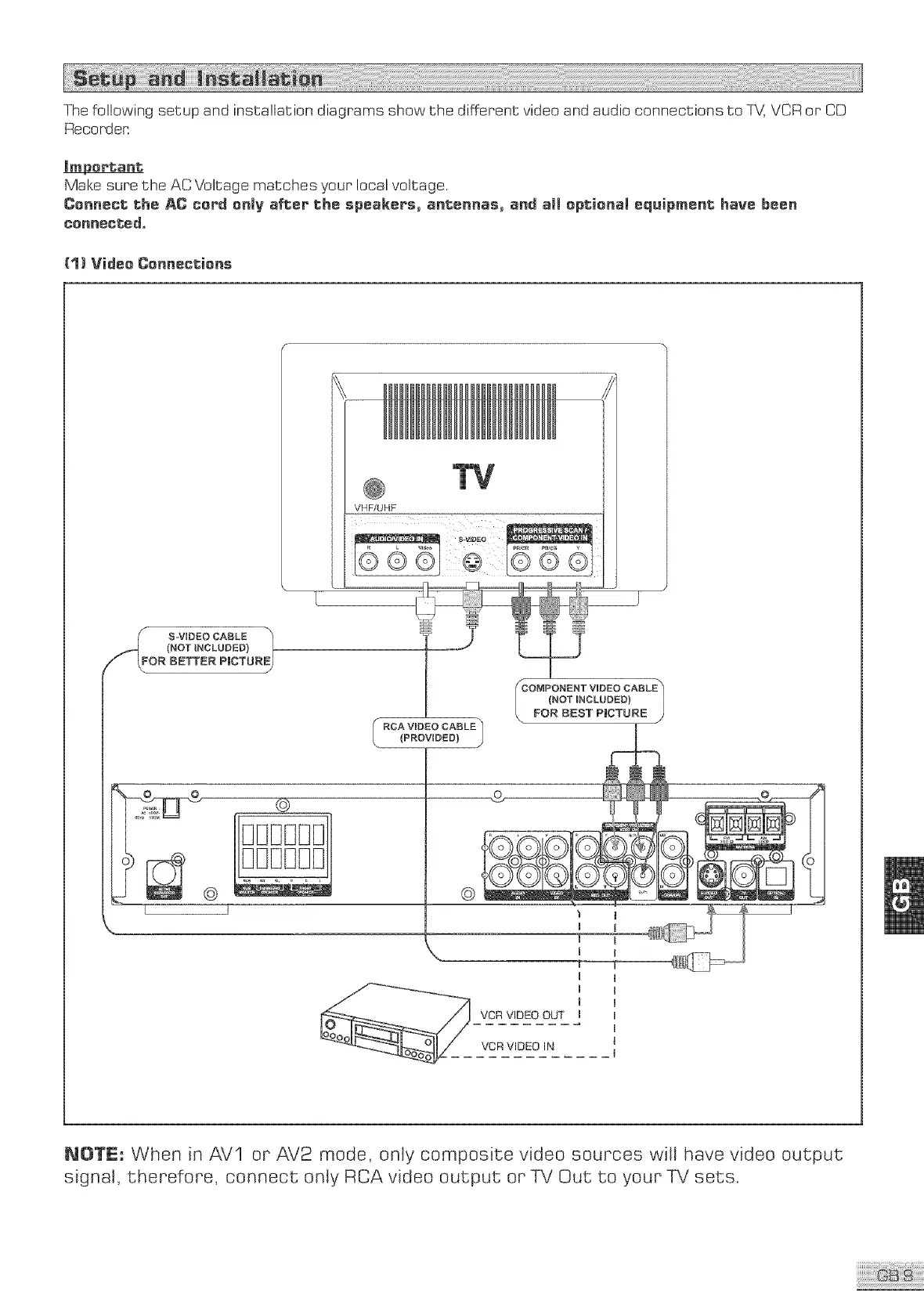

{I) Vides Connections
VHF/UHF
S-V_DEO
© © G
S-VmDEO CABLE
(NOT INCLUDED)
OR BETTER
(PROVIDED)
(NOTINCLUDED)
FOR BEST PICTURE
I
VCR VIDEO OUT
VCR VIDEO IN
NOTE: When in AVI or AV2 mode, only composite video sources will have video output
signal, therefore, connect only RCA video output or TV Out to your TV sets.
To Next Page
