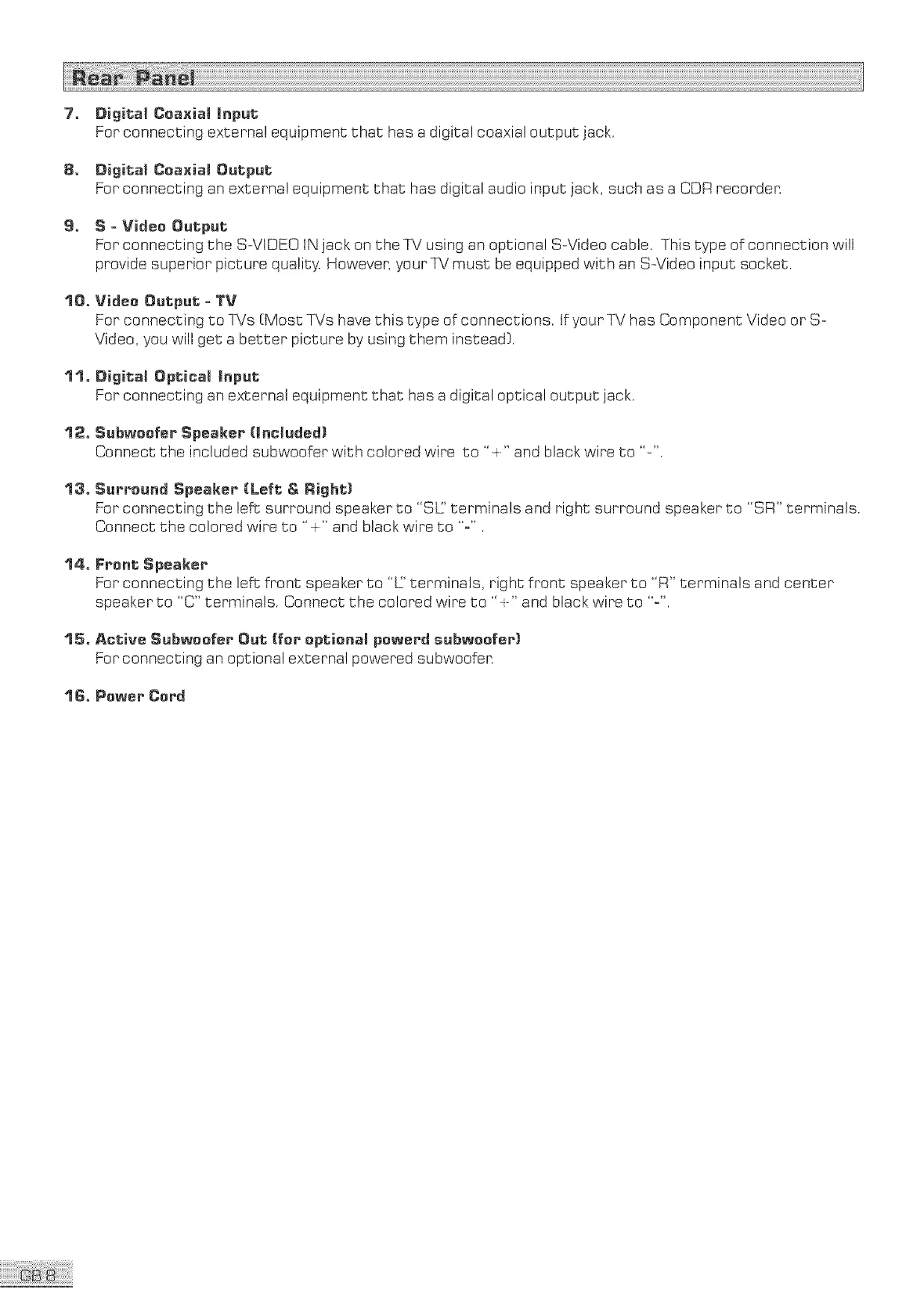

7, Dig!tam Caa×ial mnput
For connecting external equipment that has a digital coaxial output jack.
8.
9.
10.
11.
12.
13.
14.
15.
16.
Digital 8aaxial Output
For connecting an external equipment that has digital audio input jack, such as a CDR recorden
S = Video Output
For connecting the S-VIDEO IN jack on the TV using an optional S-Video cable. This type of connection will
provide superior picture quality. However, yourR/must be equipped with an S-Video input socket.
Video Output =TV
For connecting to TVs [Most TVs have this type of connections, tf yourR/has Component Video or S-
Video, you will get a better picture by using them instead}.
Digital Optical IJnput
For connecting an external equipment that has a digital optical output jack.
Subweafer Speaker {Included_
Connect the included subwoofer with colored wire to "q" and black wire to "-'.
Surraund Speaker {Left & Right}
For connecting the left surround speaker to "SLt' terminals and right surround speaker to "SR" terminals.
Connect the colored wire to "_" and black wire to "=".
Frant Speaker
For connecting the lefS front speaker to "L:' terminals, right front speaker to 'R" terminals and center
speaker to "C" terminals. Connect the colored wire to " " and black wire to "='.
Active Subweafer Out {far aptienal pawerd subwaafer}
For connecting an optional external powered subwoofen
rawer Card
