6.2 Operating a Single Machine
By default, the VS-1616A is setup for use as a single machine. This
means that it is a 16x16 balanced stereo audio matrix switcher. In
particular, be sure that the DIP-switches are set as
Figure 5
illustrates (see
section
6.6 for further details). To operate a single machine, see Table 3.

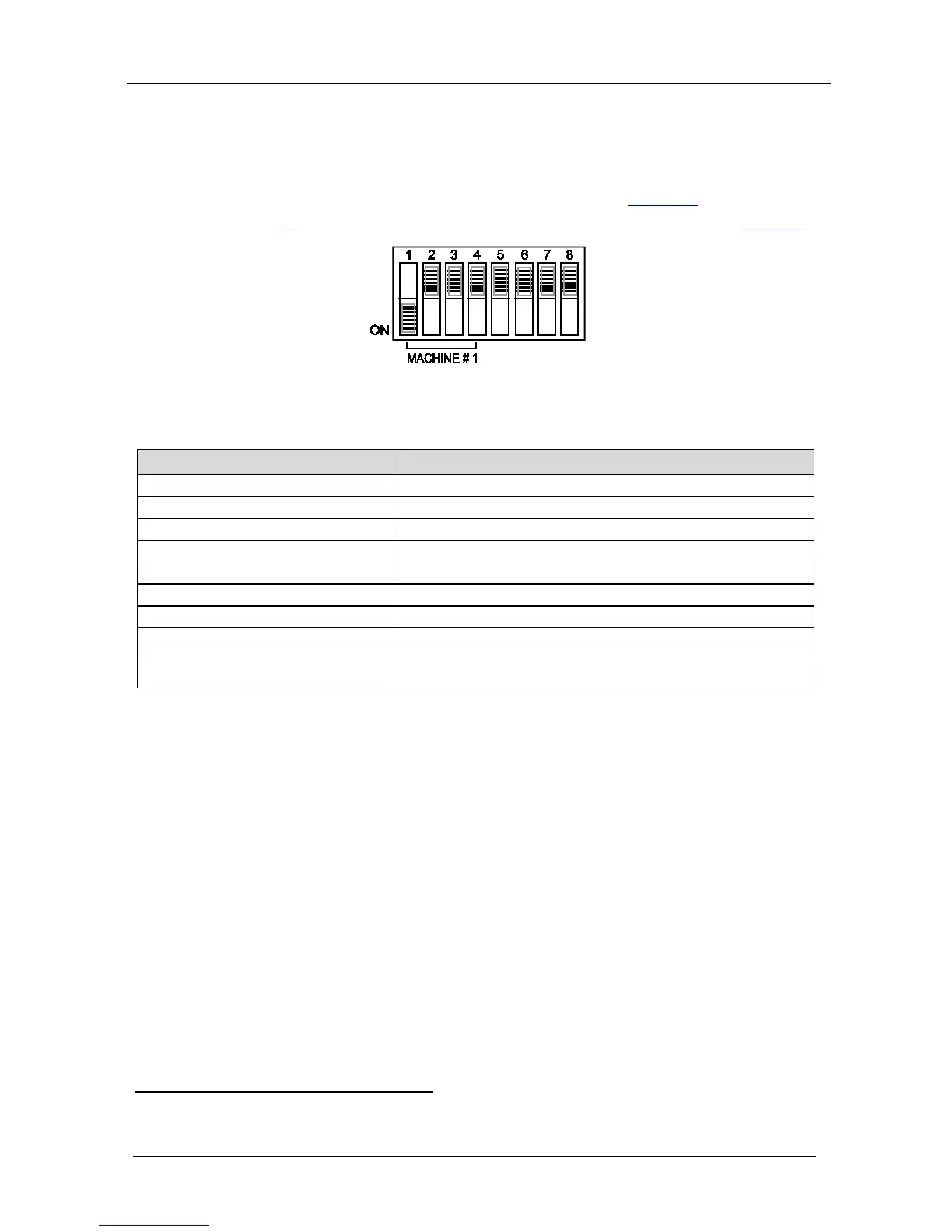

Figure 5: DIP-Switch Setup on a Single Machine
Table 3: Quick Reference Operating Guide for a Single Machine
To perform this command: Press:
Connect an input with an output OUT #; IN #
Reset a specific output OUT #; OFF
Reset all outputs ALL; OFF
Connect all outputs to a specific input ALL; IN #
Store a setup STO; OUT #; TAKE
Recall a setup RCL; OUT #; TAKE
Lock front panel MENU; TAKE
Unlock front panel TAKE; TAKE
Change default setup Press the Menu button several times until you reach the
appropriate Menu setup command and follow the instructions
6.3 Assembling a Multi-channel Audio Switcher
Configure several VS-1616A units as a 16x16 expanded multi-channel
audio switcher. In a multi-channel audio switcher configuration, only one
unit is the Master (with DIP 6 OFF). The other units are Slaves (with DIP
6 ON).
The front panel of each Slave unit is always locked and the MATRIX and
STATUS LCD Displays do not illuminate. The Slave units follow the
Master. The Master unit operates in the regular way
1
To activate a multi-channel audio switcher so that each unit is in the same
state from the outset, do not turn on the power on the Slave unit after the
Master unit.
, leading the Slaves
in the background.
1 The front panel is not locked and the MATRIX and STATUS LCD Displays illuminate
