VW-16 Using VW-16 Embedded Webpages
27
Color Settings
VW-16 allows users to adjust the color settings: brightness, contrast, hue, and saturation.
To adjust the color settings:
1. From the Navigation List, select Multi-Viewer.
2. Adjust the Color settings, move the slider right or left to adjust color (RGB).
a. Brightness adjusts brightness values between 0-100.
b. Contrast adjusts contrast values between -100.
c. Hue adjust hue values between 0-100.
d. Saturation Adjust saturation values between 0-100.
3. Click Apply.
The color settings are adjusted.
Layout Settings
There are two mode options to set up the screen layout settings.
Option 1: Pre-Defined Layout Settings
When the screen layout is in Pre-defined mode, the settings for Aspect Ratio and Border
Color show for the user to configure.
To use a Pre-defined layout setting:
1. From the Navigation List, select Multi-Viewer > Layout settings.
2. In Pre-defined, select a Layout. See the table below for a description of each layout
option:

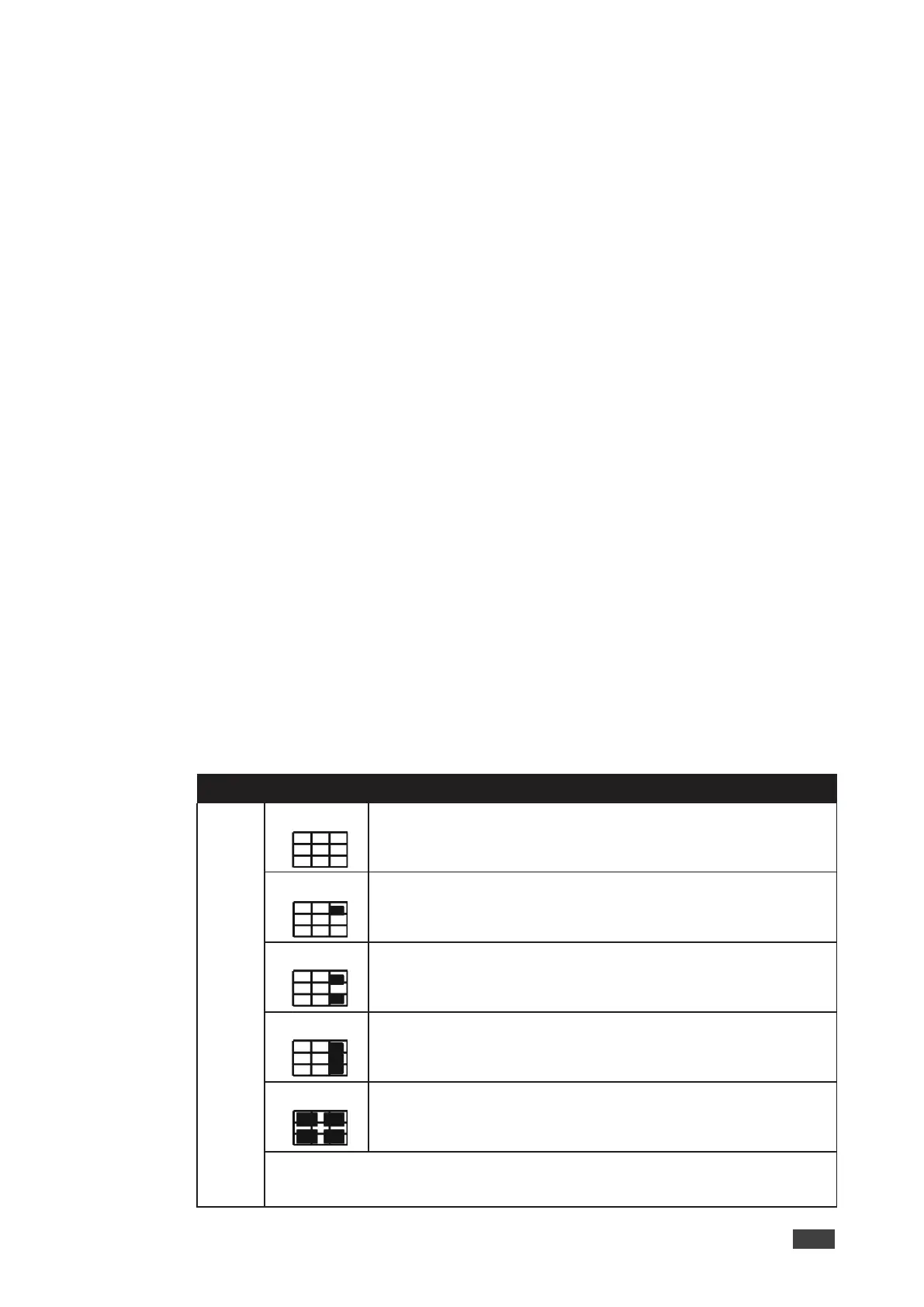

Pre-Defined
Layout A
Video wall mode is the video of one source only is presented over
the video wall.
Layout B
Multiview mode presents 1 PiP window over a parent picture in the
video wall.
Layout C
Multiview mode presents 2 PiP windows over a parent picture in
the video wall.
Layout D
Multiview mode presents 3 PiP windows over a parent picture in
the video wall.
Layout E
Multiview mode presents 4 windows over the video wall.
Note
In this setting, input sources are fixed to the corresponding
window.
