• Insert the start of the film into the machine as follows:
Pos: 4.30 /Bei packs/Rundball enpressen/Folienbi ndung/Modulg ruppen Folie ei nlegen / LED Lic htleiste/ZBBP 1797: Folie nverlauf @ 468\ mod_14697886 43716_78.doc x @ 3161484 @ @ 1

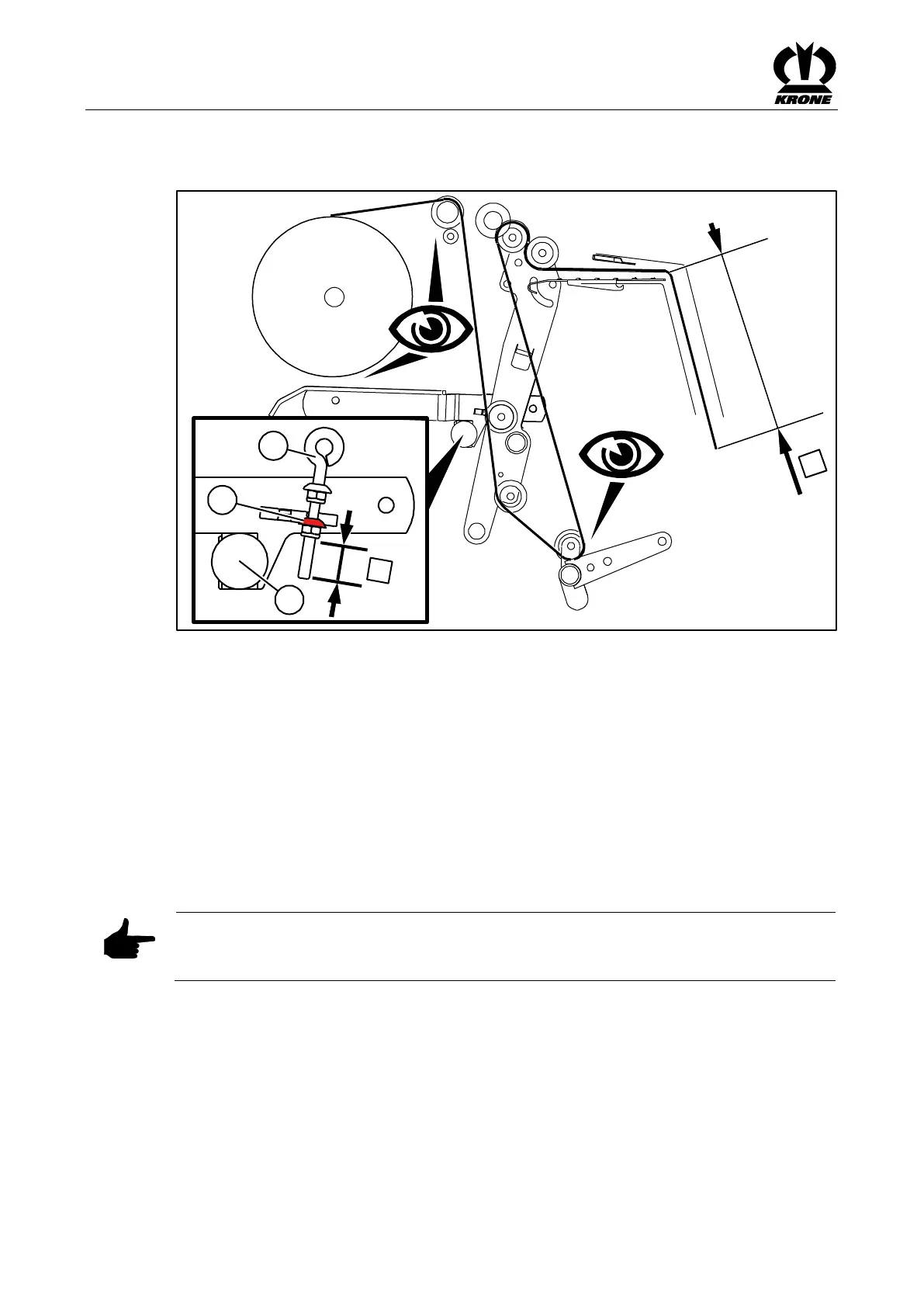

ZBBP1797_3
X
Y
1
2
3
Fig.
7
Pos: 4.31 /Bei packs/Rundball enpressen/Folienbi ndung/Modulg ruppen Folie ei nlegen / LED Lic htleiste/Beschr eibung 3: Foli e einlegen @ 47 0\mod_14 71437037800_7 8.docx @ 31768 30 @ @ 1
• Pay attention to the points along the path of the film that are identified with an eye.
• Make sure that the film overhang is at least X=250 mm.
• Hook the eyelet bolt (1) at the upper cone (2) into the support/holder on the clamping
lever.
The dimension Y=30 mm is set at the factory.
• Check whether the locking pin with the knob (3) is locked.
If the locking pin with the knob (3) is not locked, see chapter Settings, "Adjust film brake".
If film tying is started, the net rocker arm moves down and the film overhang X=250 mm is
conveyed from the first two rollers to the round baler. At this point, the film sticks to the round
bale and is pulled along with it.
Pos: 4.32 /BA/Bedi enung /Run dballenpresse/Folie nbindung/Hinw eis auf Ter minal "Auswahl Bi ndeart"_nurBA_C omprima @ 38 9\mod_14 45412274043 _78.docx @ 278 0185 @ @ 1
Note
Before starting with film tying, film tying must be selected in the terminal, refer to chapter
Terminal - Menus, “Selection of Type of Tying”.
