Start-up
32
Pos: 17.14 /BA/Sicherheit/Hydraulik/Achtung - Verschmutzung der Hydraulikanlage @ 2\mod_1202393336803_78.docx @ 59155 @ @ 1
Caution! - Soiling of the hydraulic system
Effect: Damages to the machine
• When connecting the quick couplings, ensure that these are clean and dry.
• Note chafing areas or points of contact.
Pos: 17.15 /BA/Sicherheit/Betätigungsseil/GEFAHR! – Unbeabsichtigte Aktionen ausgelöst Betätigungsseil verlegen @ 8\mod_1219298996457_78.docx @ 111447 @ @ 1
Danger! - Unintended actions triggered.
Effect: Danger to life, injuries or damage to the machine.
• The actuating rope must be routed in such a way that no movements are unintentionally
triggered in any transport or working positions.
• The actuating rope must not come into contact with the tractor tyres
• Note chafing areas or points of contact.
Pos: 17.16 /BA/Inbetriebnahme/EasyCut/Hydraulik/Hydraulikanschluss Bild EC 280/320 @ 9\mod_1220872378720_78.docx @ 128225 @ @ 1

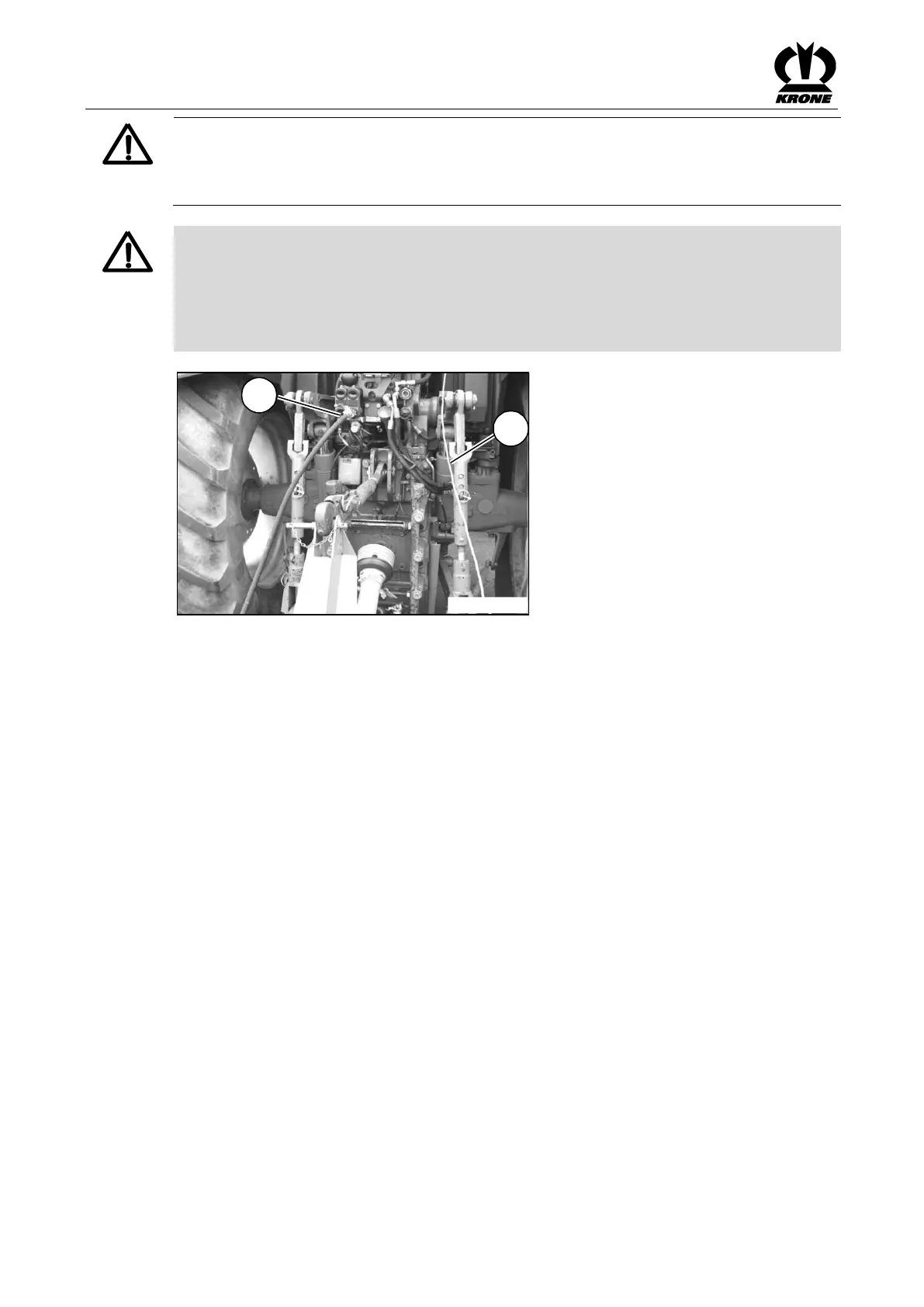

EC-106-1
3
1
Figure
8
Pos: 17.17 /BA/Inbetriebnahme/EasyCut/Hydraulik/Steuergerät 1xEW @ 10\mod_1221486740745_78.docx @ 134020 @ @ 1
A single-action control unit is required on the tractor to operate the machine.
Pos: 17.18 /BA/Inbetriebnahme/EasyCut/Hydraulik/Anschluss Hydraulikleitung EC R 280/320 @ 207\mod_1386776131827_78.docx @ 1716454 @ @ 1
• Set the control units of the tractor to float position.
• Turn off the tractor and secure it against the possibility of rolling back.
• Connect the hydraulic coupling of the machine to a single-action control unit of the tractor.
Pos: 17.19 /BA/Inbetriebnahme/EasyCut/Hydraulik/Betätigungsseil ablegen @ 207\mod_1386776765488_78.docx @ 1716483 @ @ 1
• Put down the actuating rope (3) in the tractor cab.
