Krone EasyCut 320 User Manual

Maintenance
63
Pos: 25.26.24 /Überschriften/Überschriften 3/K-O/MMesserschraubverschluss @ 0\mod_1197270941296_78.docx @ 16578 @ 3 @ 1
10.9.1 Blade Screw Connection
Pos: 25.26.25 /BA/Wartung/Mähwerke/Messerschraub / Messerschnellverschluss/Beschreibung Messerwechsel Messerschraubverschluss @ 47\mod_1285661949953_78.docx @ 456898 @ @ 1

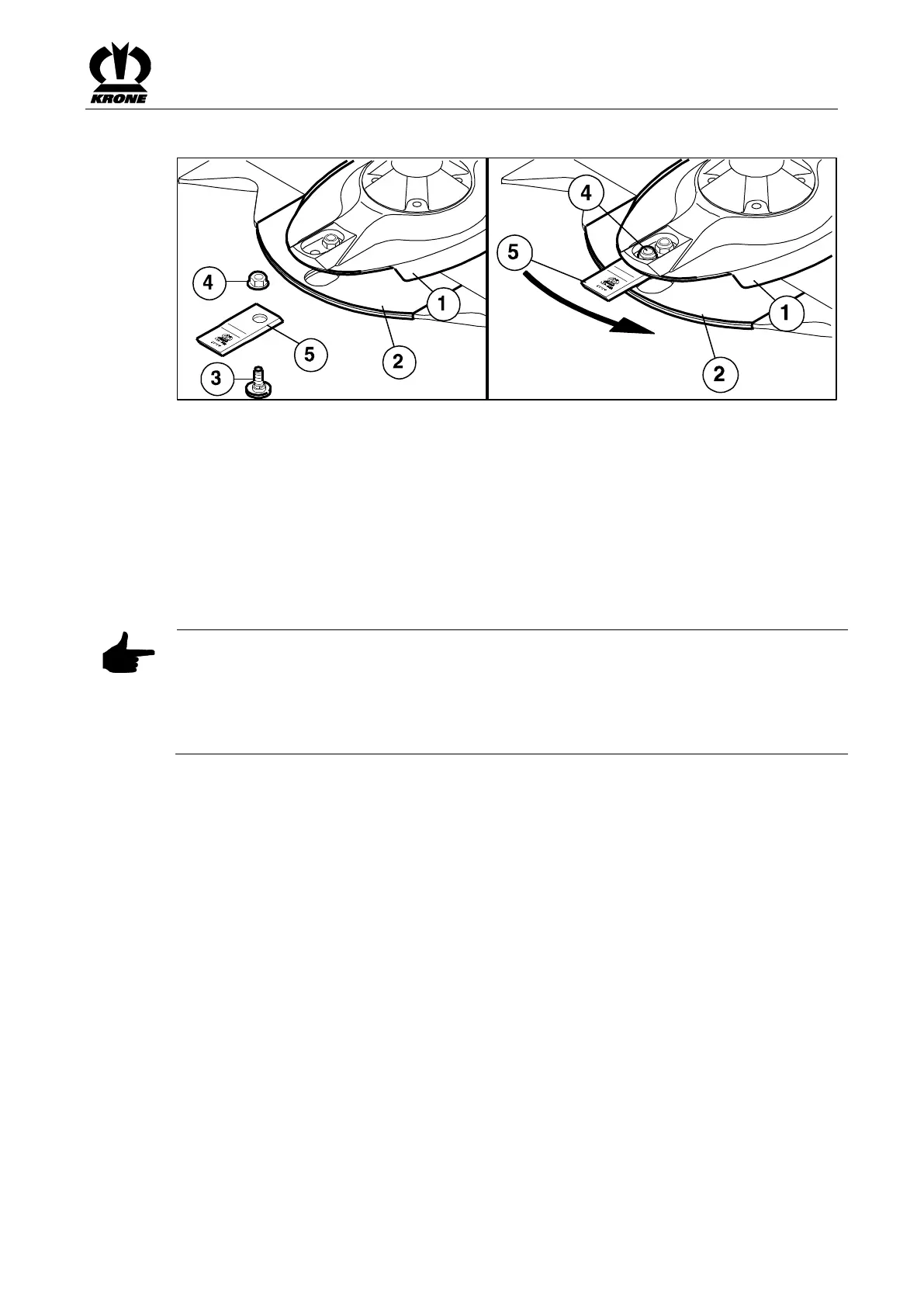

EC-0-250
Pic.
32
• Fold up safety device
• Clean the area
• Remove damaged or worn blades
• To fit the blades, insert the blade (5) between the wear skid (2) and the cutting disc (1)
• Insert the retaining bolt (3) from below through the wear skid, the blade and the cutting disc
• Place the locknut (4) on the retaining bolt from above and tighten it firmly (tightening torque
refer to chapter “Torques”)
• Repeat the process for all blades
• After fitting the blades, fold the safety device down again
Note
• The cutter blades of anticlockwise rotating cutting discs / blade drums are different to those
of clockwise rotating ones. Make certain the direction of rotation is correct when installing!
• The arrow on the cutter blades must match the direction of rotation of the corresponding
cutting discs / blade drums
• The locknut (4) used to secure the retaining bolts must not be used more than once
Order No. for clockwise rotating blade: 139-889
Order No. for anticlockwise rotating blade: 139-888
