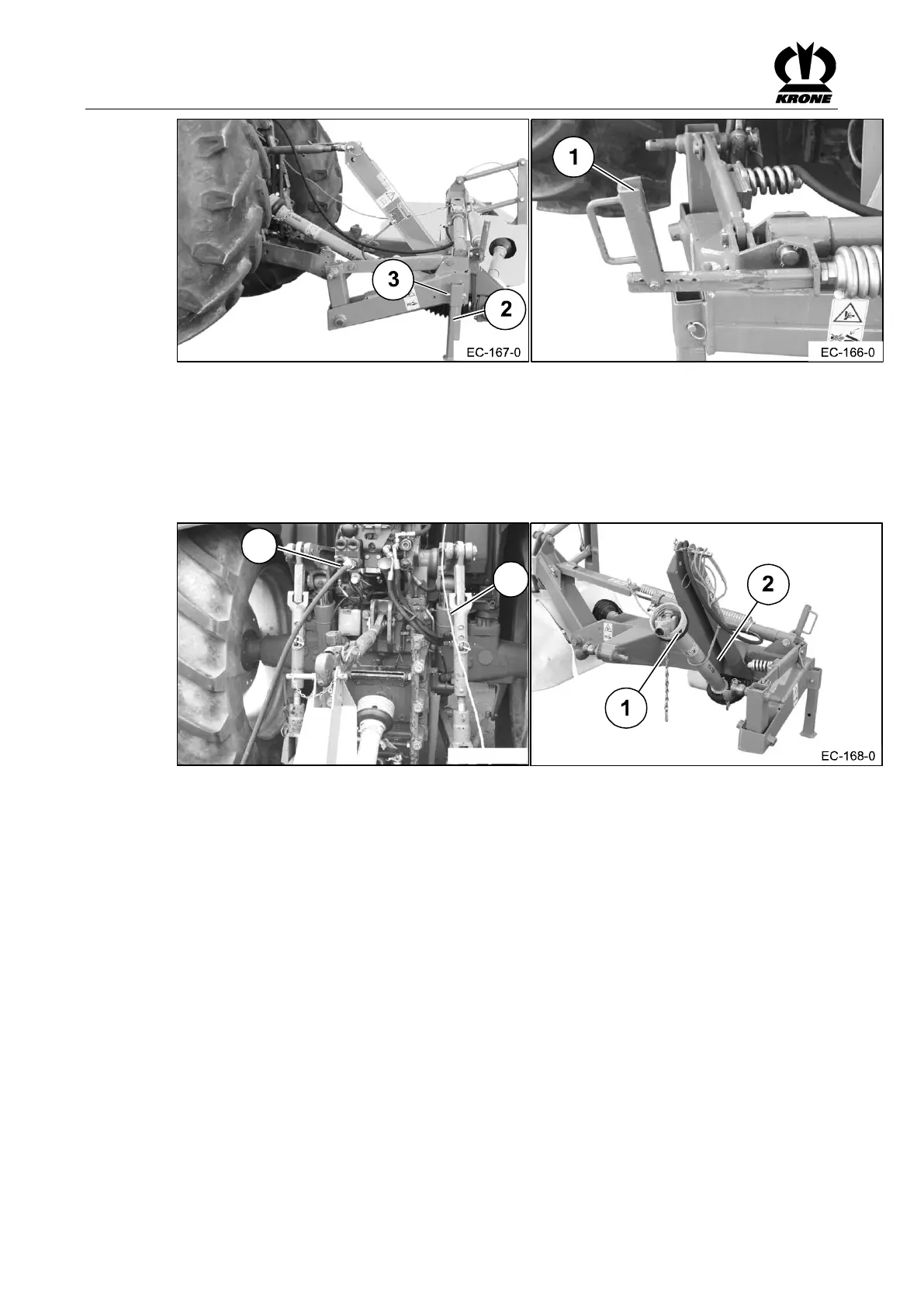

• Disable the compensation springs by reversing the adjusting lever (1) (only possible
in transport position).
• Move the mower into the working position.
Pos: 21.37 /BA/Bedienung /EasyCut/Abstellstütze/Abstellstütze herunterlassen @ 10\mod_1221545028276_78.docx @ 134459 @ @ 1
• Lower the parking support (2) and secure it in place with the bolt (3).
• Via the tractor hydraulics, lower the machine to the ground.
Pos: 21.38 /BA/Bedienung /EasyCut/Gelenkwelle/Gelenkwelle / Hydraulikschlauch abkuppeln Bild EC 280/320 @ 9\mod_1220884855579_78.docx @ 128988 @ @ 1
EC-277-0
4
3
Figure.
18
Pos: 21.39 /BA/Bedienung /EasyCut/Gelenkwelle/Gelenkwelle / Hydraulikschlauch abkuppeln Text EC 280/320 @ 9\mod_1220884945345_78.docx @ 129009 @ @ 1
• Remove the PTO shaft (1) from the tractor and place it onto the storage surface (2).
• Disconnect the hydraulic hose (3) from the tractor (set the dust cap in place).
• Remove the synthetic rope (4) from the tractor.
• Release the upper link and pull out the bolt on the machine side or unhook the upper link.
• Pull off the lower suspension arm / release the catch hook.
