KSB Guard - Technical Data

4 Description
13 of 50
KSB Guard
4079.83/01-EN
8265/55-2110
Steuerung / control panel
PTB 06 ATEX 1077
II 2(1) G Ex db eb mb [ia Ga] IIC T4 Gb
IP65
AC
238784_V01
143494_V09
110-240 V
1NPE
50/60 Hz
max. 45 mA
IEC 61439-2
Date
Order no.: 751742/0010
HQ: R. STAHL, D-74638 Waldenburg x r-stahl.com x Made in Germany
serial number
-20°C x Ta x +40°C
0158
1
2
3 4 5 6
7 8

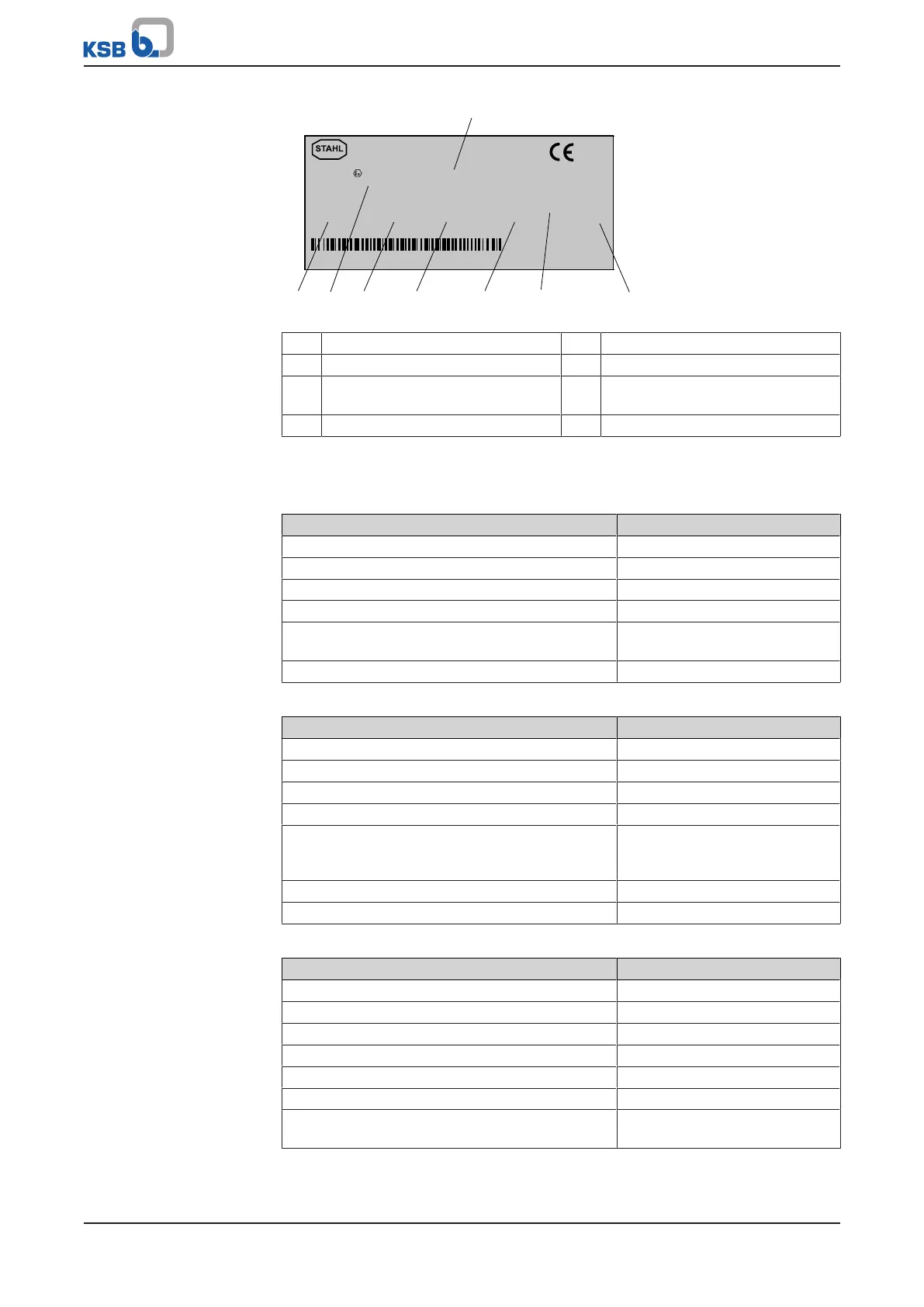

Fig.3: Name plate of KSB Guard Gateway (example)
1 ATEX marking 2 Type of power supply: AC voltage
3 Enclosure 4 Supply voltage range
5 Connection with 3-core cable (L1 /
N / PE)
6 Frequency of mains voltage
7 Ambient temperature 8 Supply current
4.4 Technical data
Sensor unit Table5: Technical data of sensor unit
Characteristic Value
Material Aluminium
Dimensions (L×W×H) [mm] 50x45x30
Enclosure IP65
Cable type 1.5m, PUR, 6-core
Permissible surface temperature of the pump
(process temperature)
-40 to90°C
Ambient temperature -20to+70°C
Transmission and battery
unit
Table6: Technical data of transmission and battery unit
Characteristic Value
Material Glass fibre reinforced polyester
Dimensions (L×W×H) [mm] 110x75x75
Enclosure IP66
Permissible surface temperature -20to+70°C
Power supply Battery pack with lithium thionyl
chloride battery (max. 17Ah, not
rechargeable)
Wireless module ISM band, 2.4GHz
Connection M8, 6-pin
KSBGuardGateway Table7: Technical data of KSBGuardGateway
Characteristic Value
Supply voltage 110 - 240V, AC voltage
Mains frequency 50/60Hz
Power input <5W
In-service ambient temperature -20to40°C
Weight Approx. 25kg
Dimensions Approx. 500×300×230
TypeN connector, connectionA Antenna for 2.4 GHz (WLAN/
Bluetooth)
