5 Installation/ Commissioning
27 of 50
KSB Guard
4079.83/01-EN
5.2.7 Routing the connecting cable
WARNING
Work in the immediate vicinity of rotating parts
Risk of hand injury!
▷ Always have this work performed by trained personnel.
▷ Take particular caution when performing this work.
WARNING
Hot surfaces (pump and piping take on the temperature of the fluid handled).
Risk of burns!
▷ Do not touch hot surfaces.
CAUTION
Improper routing
Damage to the connecting cable!
▷ Never kink or crush the connecting cable.

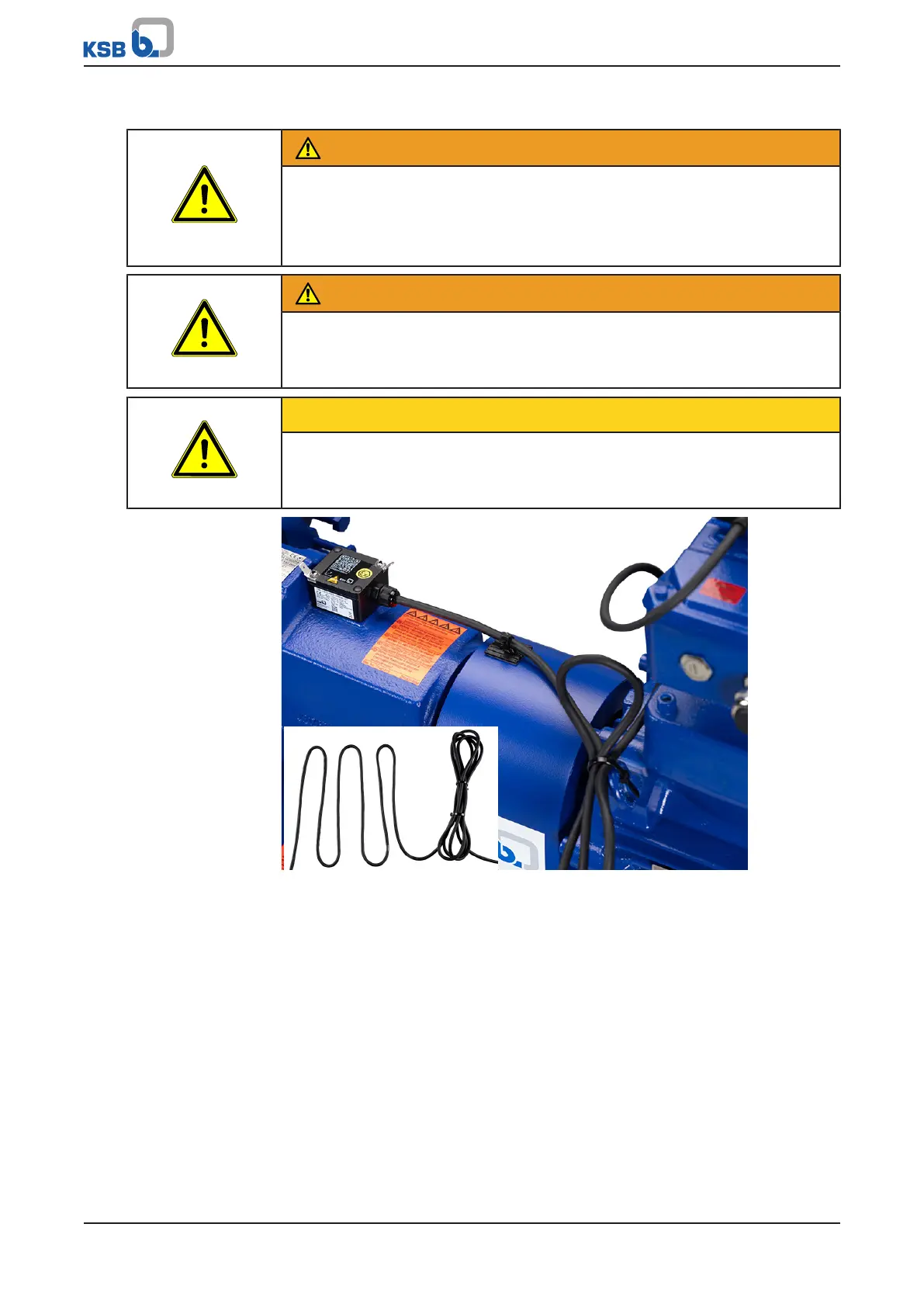

Fig.14: Routing the connecting cable in a meander pattern
1. Secure the connecting cable between the sensor unit and the battery and
transmission unit in such a way that no hazard (tripping, entrapment) can arise
from it.
2. Route the excess length of the connecting cable in a meander pattern
(ðFig.14) and fasten it with the supplied fastening elements.
