5 Installation/ Commissioning
24 of 50
KSB Guard
4079.83/01-EN

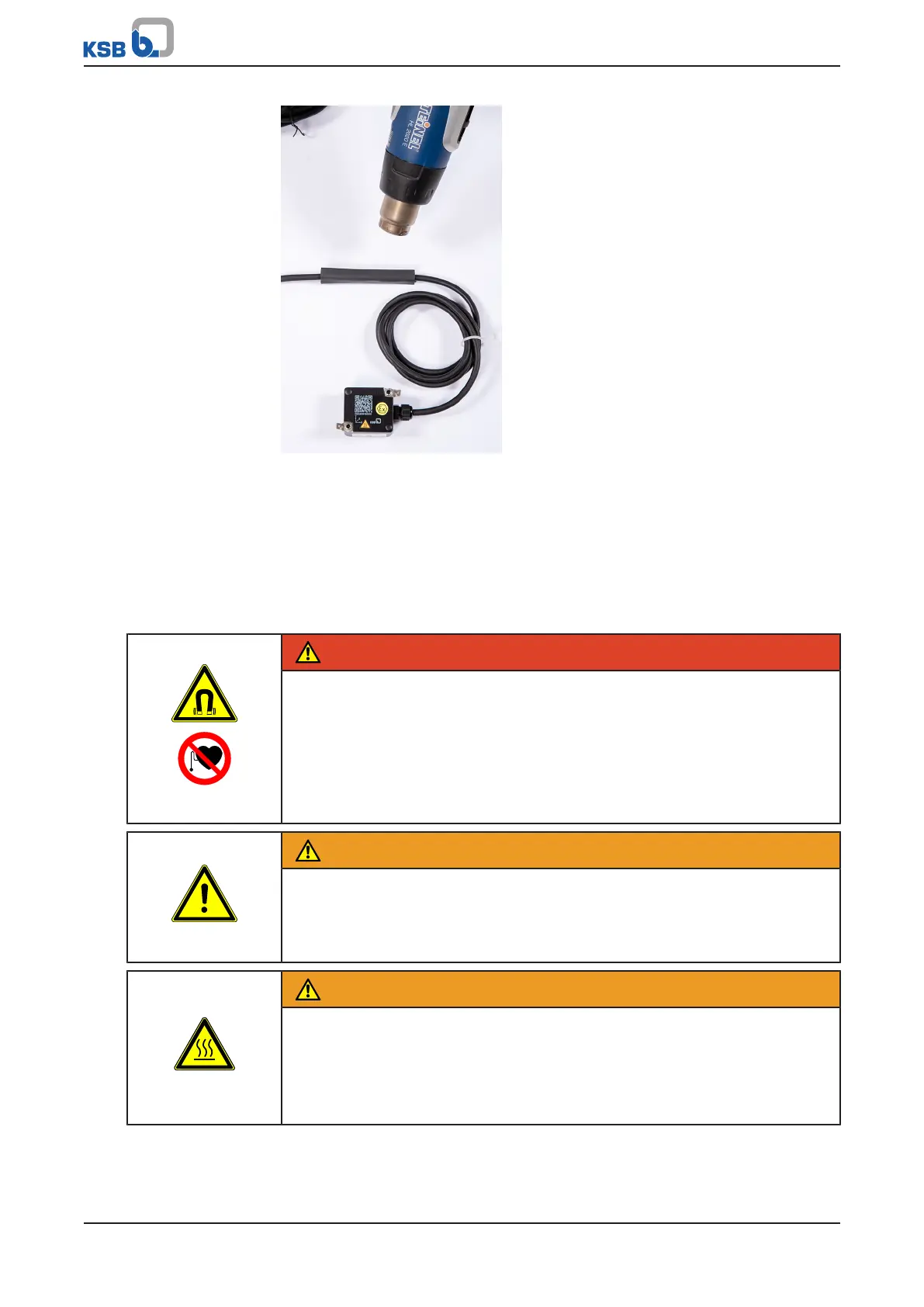

Fig.12: Heating up the heat shrink tube
1. Slide the supplied heat shrink tube onto one of the cable ends.
2. Connect the cable ends with each other.
3. Slide the heat shrink tube over the cable connection.
4. Evenly heat up the heat shrink tube with a stream of hot air, e.g. with a hot air
gun.
5.2.5 Installing the sensor unit
DANGER
Strong magnetic field
Danger of death for persons with pacemaker!
Interference with magnetic data carriers, electronic devices, components and
instruments!
Uncontrolled magnetic attraction forces between magnet-equipped components,
tools or similar!
▷ Keep a safety distance of at least 0.3m.
WARNING
Hot surfaces of pump set
Risk of burns!
▷ Observe the manufacturer’s safety instructions for fastening the sensor unit and
using the adhesive.
WARNING
Sensor unit takes on temperature of bearing bracket or drive lantern
Risk of burns!
▷ Observe the operating manual of the pump set.
▷ When the pump set is being operated, only touch the sensor unit using suitable
protective gloves.
