10 Related Documents
10.1 Recommended mounting position for sensor unit
NOTE
Do not install the sensor unit facing downwards as glue will be used during the
installation.
The position of the sensor unit as shown in the illustrations is recommended,
depending on the type series.
If installation locationA is accessible and not otherwise used, fasten the sensor unit
to this location.
If installation locationA is used or inaccessible, use installation locationsB, C or D.
Etanorm

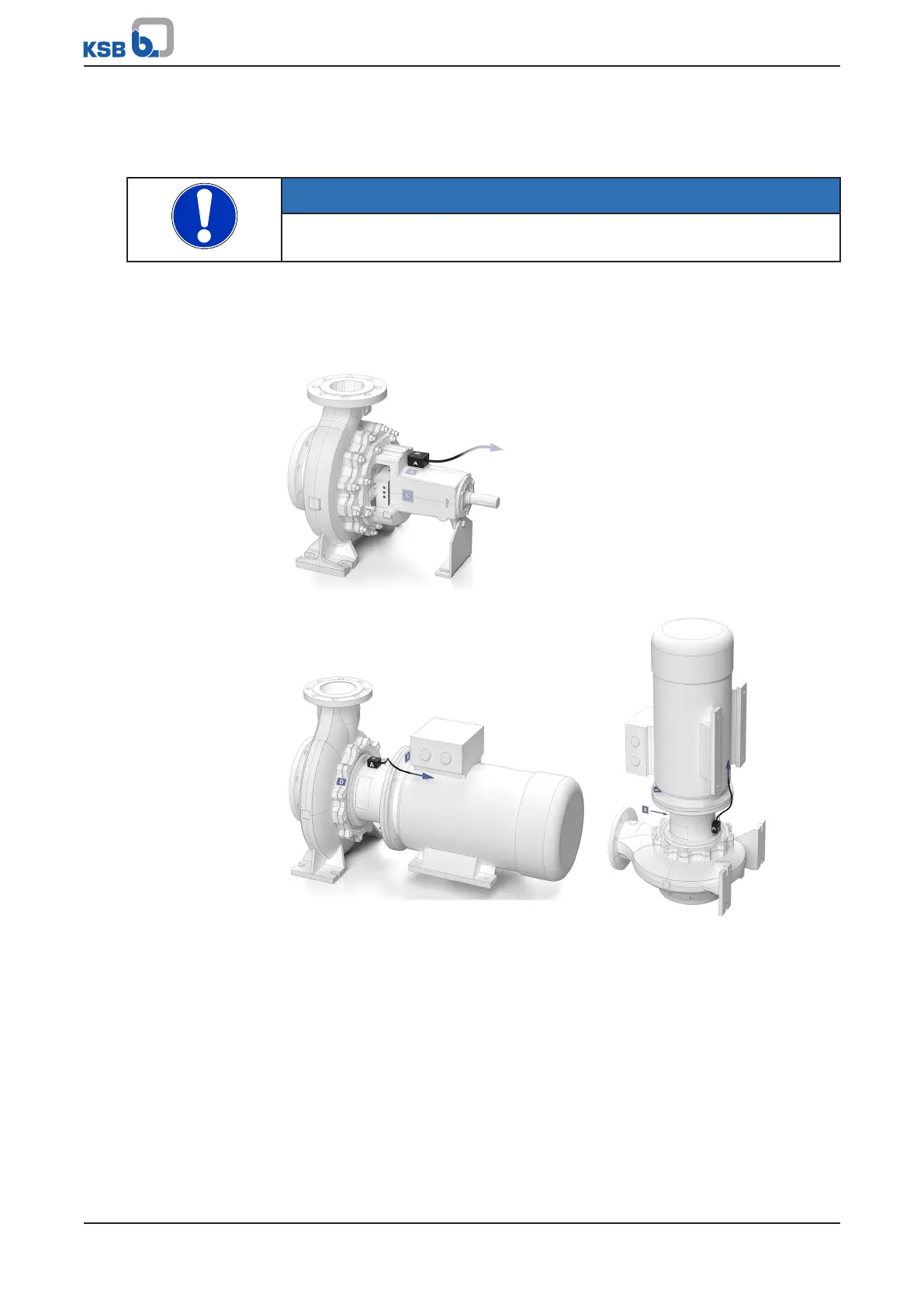

Fig.18: Etanorm with sensor unit
Etabloc
Fig.19: Sensor unit mounted on horizontally and vertically installed Etabloc pumps
