KSB Guard - KSB Guard Gateway Details; Gateway LED Indicators

4 Description
15 of 50
KSB Guard
4079.83/01-EN
1
2
3
4
5

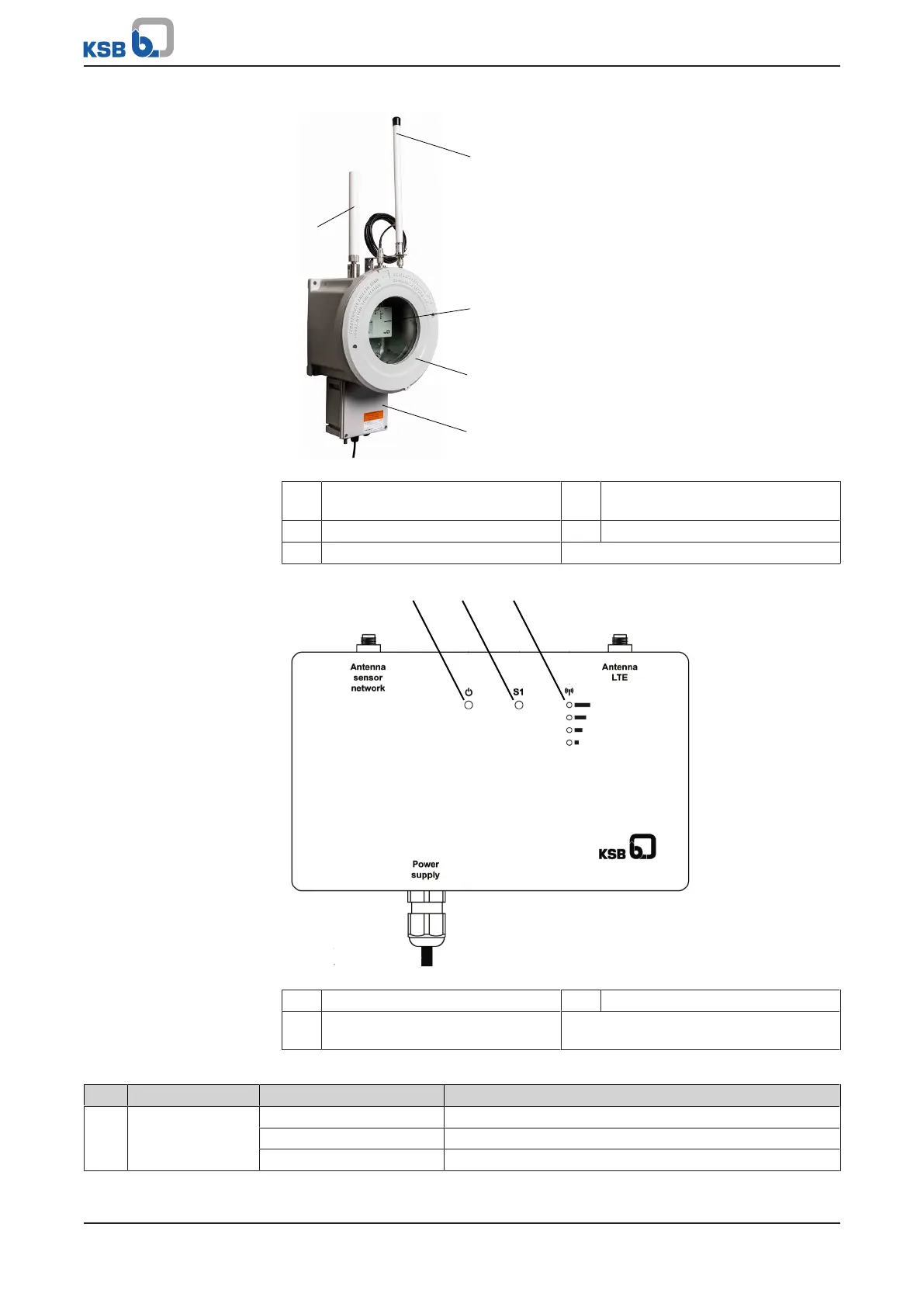

Fig.4: KSBGuardGateway in flameproof enclosure
1 Antenna connection for mobile
data (LTE)
2 Sensor network antenna
connection
3 KSB Guard Gateway 4 Flameproof enclosure
5 Terminal box
1
2 3
Fig.5: KSBGuardGateway
1 Status LED for supply voltage 2 Status LED S1 for connection status
3 Level LEDs for mobile network
signal strength
Table8: Description of LED indicators
No. LED Status Description
1 Supply voltage OFF Device is out of operation or in the initialisation phase.
Green Device is in operation. No faults present.
Red or flashing red Device is in operation. Faults are present.
