5 Installation at Site
31 of 80
HPK
1121.8/06-EN
B
A
A
B
1
1
2

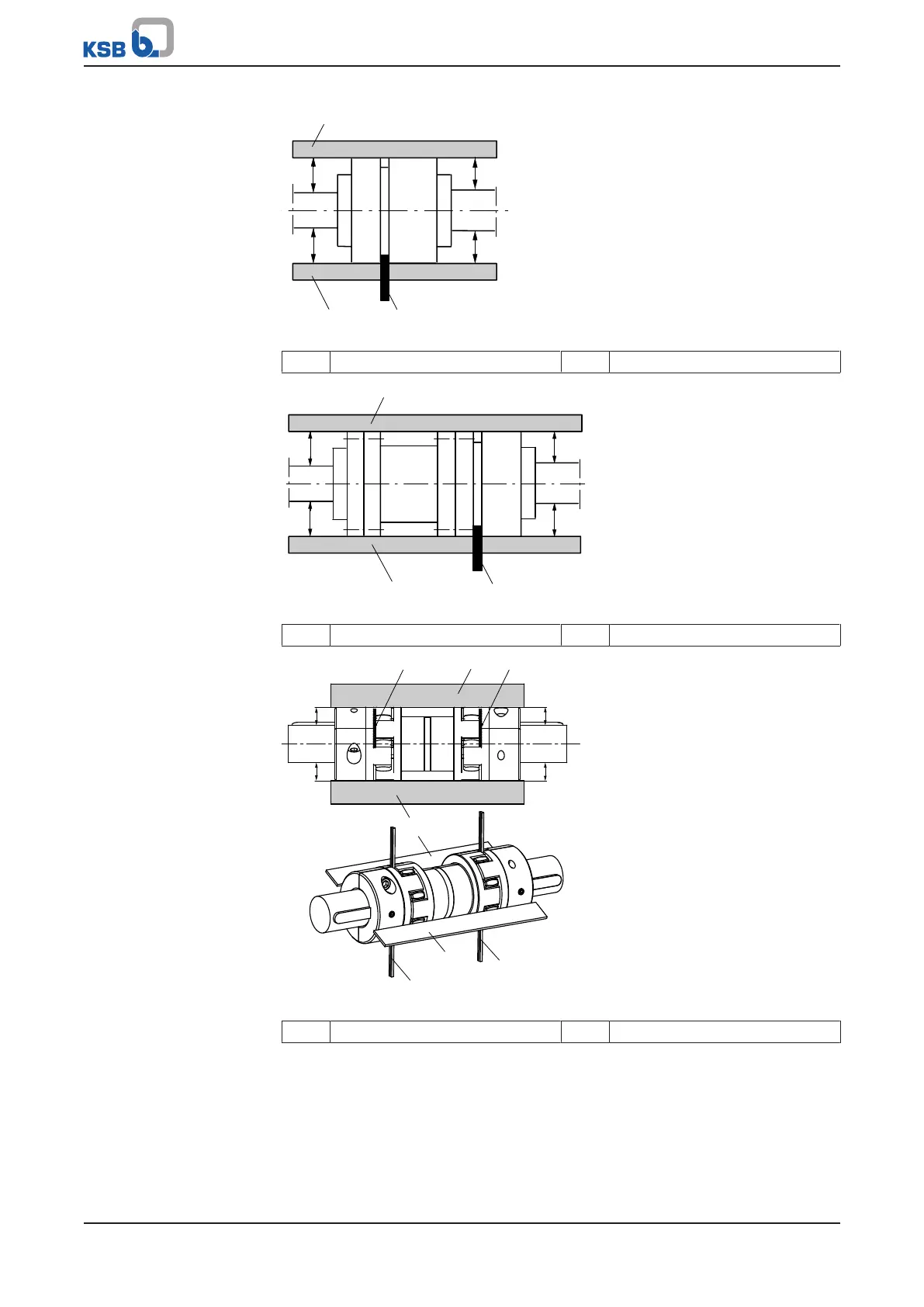

Fig.11:
Non-spacer-type coupling, checking the coupling alignment
1
Straight edge
2
Gauge
B
B
A
A
2
1
1
Fig.12:
Spacer-type coupling, checking the coupling alignment
1
Straight edge
2
Gauge
B
A
A
B
1
1
2
2
1
2
2
Fig.13:
Double Cardan spacer-type coupling, checking the coupling alignment
1
Straight edge
2
Gauge
