8 Operating the Pressure Booster System
26 of 44
Hya-Solo DSV
The password can be changed after entering the factory default password.
Table13: Parameters for changing passwords
Parameter Description Possible settings Factory setting
1-1-5 Customer Access ID
Changing the customer access ID
0000...9999 -
1-1-6 Service Access ID
Changing the service access ID
0000...9999 -
8.1.2.1.2 Operating values for input and output signals
The status of the digital inputs/relay outputs is displayed via the Digital Inputs
(1-2-4-6) and Digital Outputs (1-2-4-7) parameters.
Table14: Example of status of digital inputs (1-2-4-6). 24V is applied to digital input 1: System Start
Optional IO card Standard
Digital input DI8 DI7 DI6 DI5 DI4 DI3 DI2 DI1
Bit pattern on display 0 0 0 0 0 0 0 I
Table15: Example of status of digital outputs (1-2-4-7). The following is reported via relay output 1: General fault
message (configurable)
Optional IO card Standard
Digital output R8 R7 R6 R5 R4 R3 DO2 D01 R2 R1
Bit pattern on
display
0 0 0 0 0 0 0 0 0 I
8.1.2.2 Menu: Diagnosis
In the Diagnosis section, the user is provided with information about faults and
warning messages that pertain to the pump set or process. The frequency inverter
can be in fault (standstill) or warning (operational) status. The user can also find
previous messages in the history.
Messages
All monitoring and protective functions trigger warnings or alerts. These are
signalled via the amber or red LED of the LED traffic light function.
A corresponding message is output on the control panel display. If more than one
message is output, the last one is displayed. Alerts have priority over warnings.
AUTO
17.48 m³/h
4.62 bar2893 rpm
W57
rpm
C M
RUN
Low flow
1
5
2
3
4

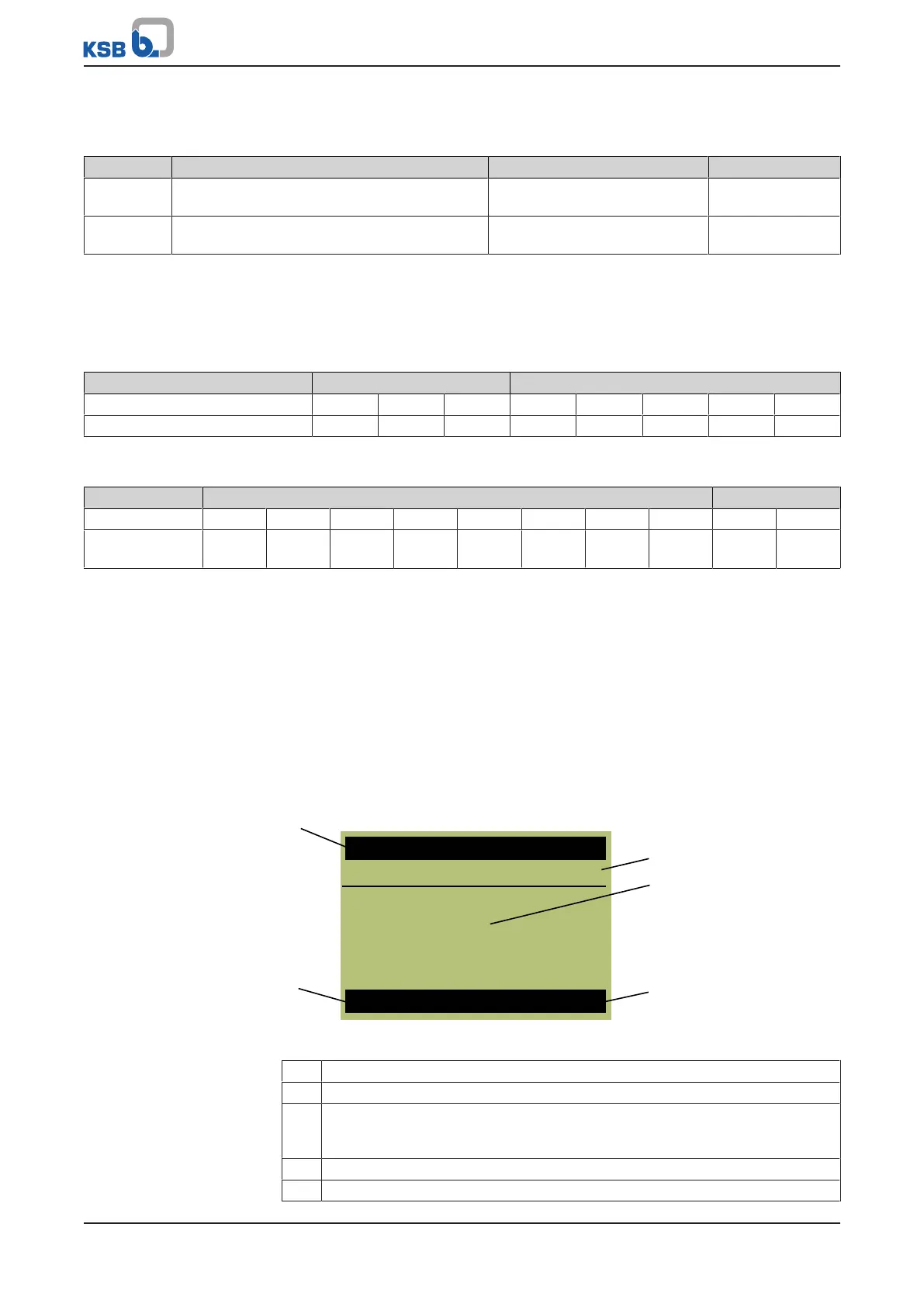

Fig.7: Message display
1 Name of the message displayed in the centre
2 Display of the master and login level
3 Display of the message: The most recently received message is displayed in
large format on the main screen. Three operating values are displayed in small
format.
4 Display of operating status
5 Displays the current operating mode
