8 Operating the Pressure Booster System
22 of 44
Hya-Solo DSV
8 Operating the Pressure Booster System
CAUTION
Incorrect operation
Water supply is not assured!
▷ Make sure to comply with all local regulations, particularly the EC Machinery
Directive and the EC Directive on Low-Voltage Equipment.
The pressure booster system is factory-set to the operating data indicated on the
name plate.
The settings can be modified via the control panel, if necessary.
8.1 Graphical control panel
OK
MAN
ESC
?
AUTO FUNC
OFF
3
1
2
3
4

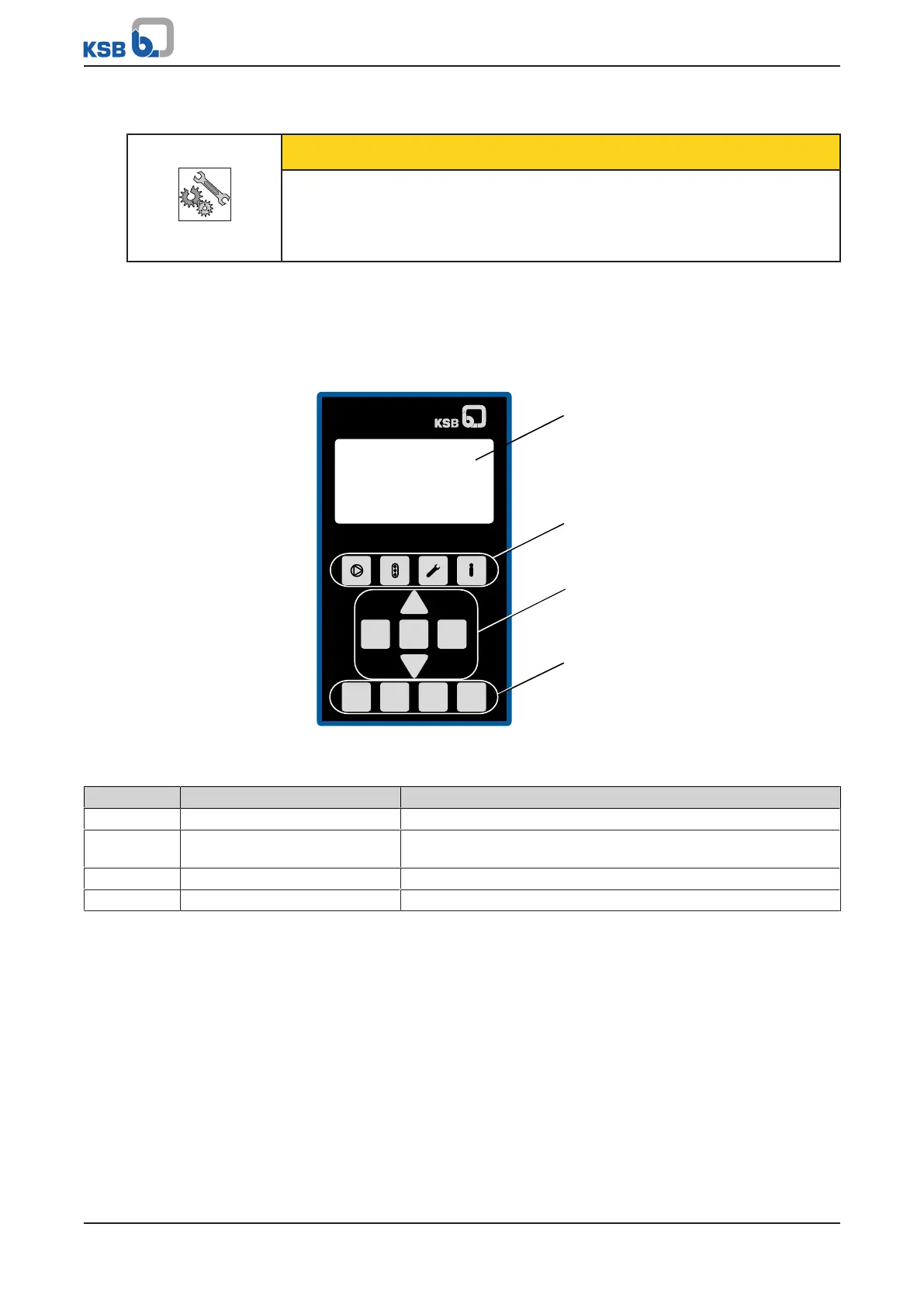

Fig.4: Graphical control panel
Table8: Description of graphical control panel
Position Description Function
1 Graphical display Displays information on frequency inverter operation
2 Menu keys Accessing the elements of the first menu level (Operation,
Diagnosis, Settings and Information)
3 Navigation keys Navigation and parameter setting
4 Operating keys Toggling operating modes
8.1.1 Graphical display
The main screen breaks down into 6areas.
