KSB Hya-Solo DSV Series User Manual

8 Operating the Pressure Booster System
23 of 44
Hya-Solo DSV
C M
H 1-2-1-1
2893
rpm
17.48 m³/h
4.62 bar 642.9 V
RUN
AUTO
Speed
8
1
4
5
7
6
3
2

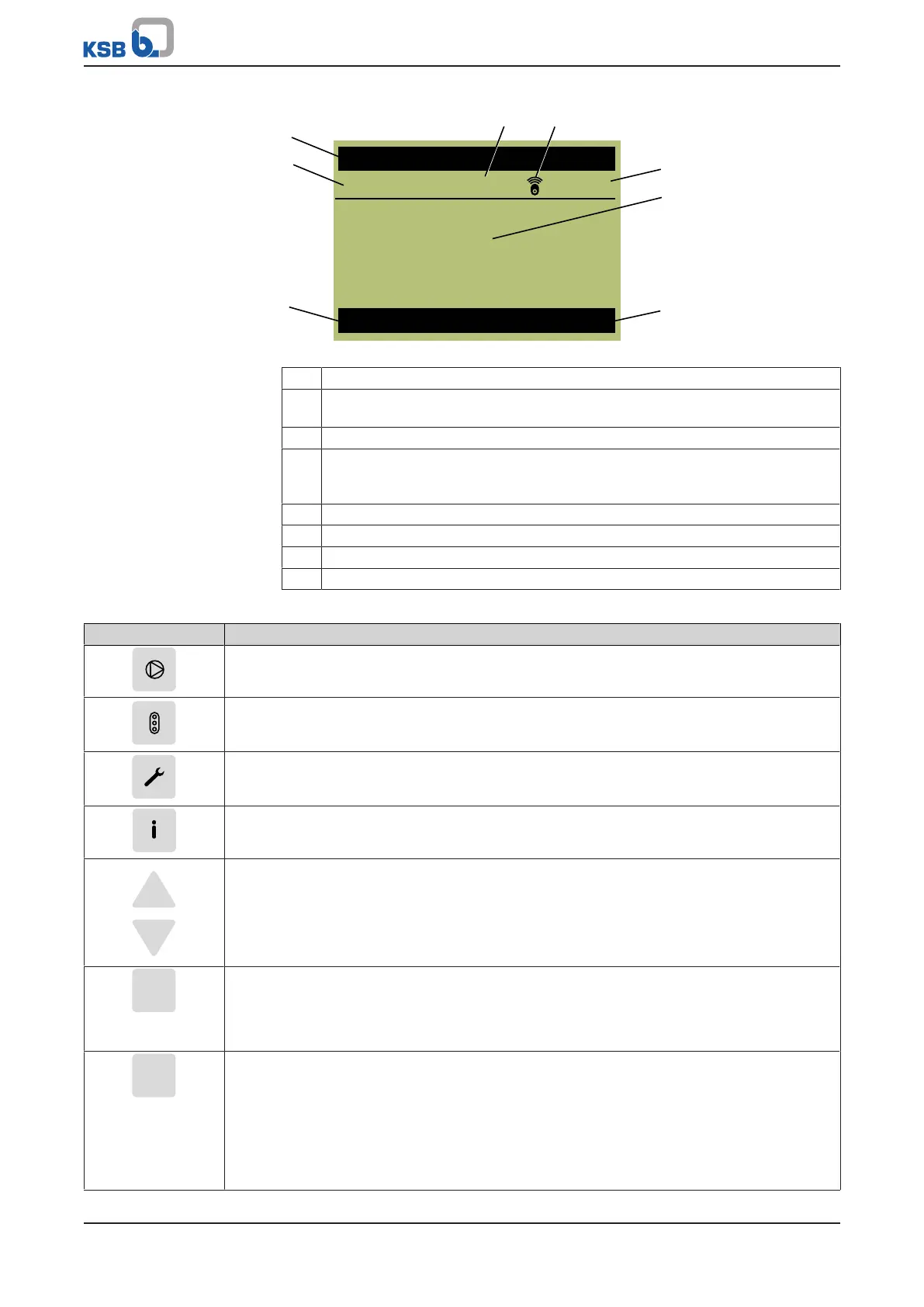

Fig.5: Main screen (example)
1 Motor standstill heater is switched on
2 The wireless icon illuminates when the Bluetooth module is inserted. The
wireless icon flashes when communication takes place.
3 Display of the master and login level
4 Display of up to four (4)operating values: One operating value is displayed in
large format. Three (3) operating values are displayed in small format. The
operating values scroll through cyclically.
5 Display of operating status
6 Display of the current operating mode
7 Parameter number of the operating value displayed in the centre
8 Name of the operating value displayed in the centre
Table9: Assignment of keys
Key Function
Operation menu key
Diagnosis menu key
Settings menu key
Information menu key
Arrow keys:
▪ Move up/down in the menu options.
▪ Increase/decrease the value displayed when you are entering numerals. (When an arrow
key is pressed and held down, the response repeats in ever shorter intervals.)
ESC
Escape key:
▪ Delete/reset entry
(the entry is not saved).
▪ Move up one menu level.
OK
OK key:
▪ Confirm settings.
▪ Confirm menu selection.
▪ Move to the next digit when entering numerals.
▪ Message display: Acknowledge alert.
▪ Measured value display: Go to Favourites menu.
