KSB Hya-Solo DSV Series User Manual

11 Related Documents
38 of 44
Hya-Solo DSV
11.1.2 Hya-SoloDSV with Movitec 25, 40, 60, 90
82-1
655
591
743
746
79-2
691 747
746

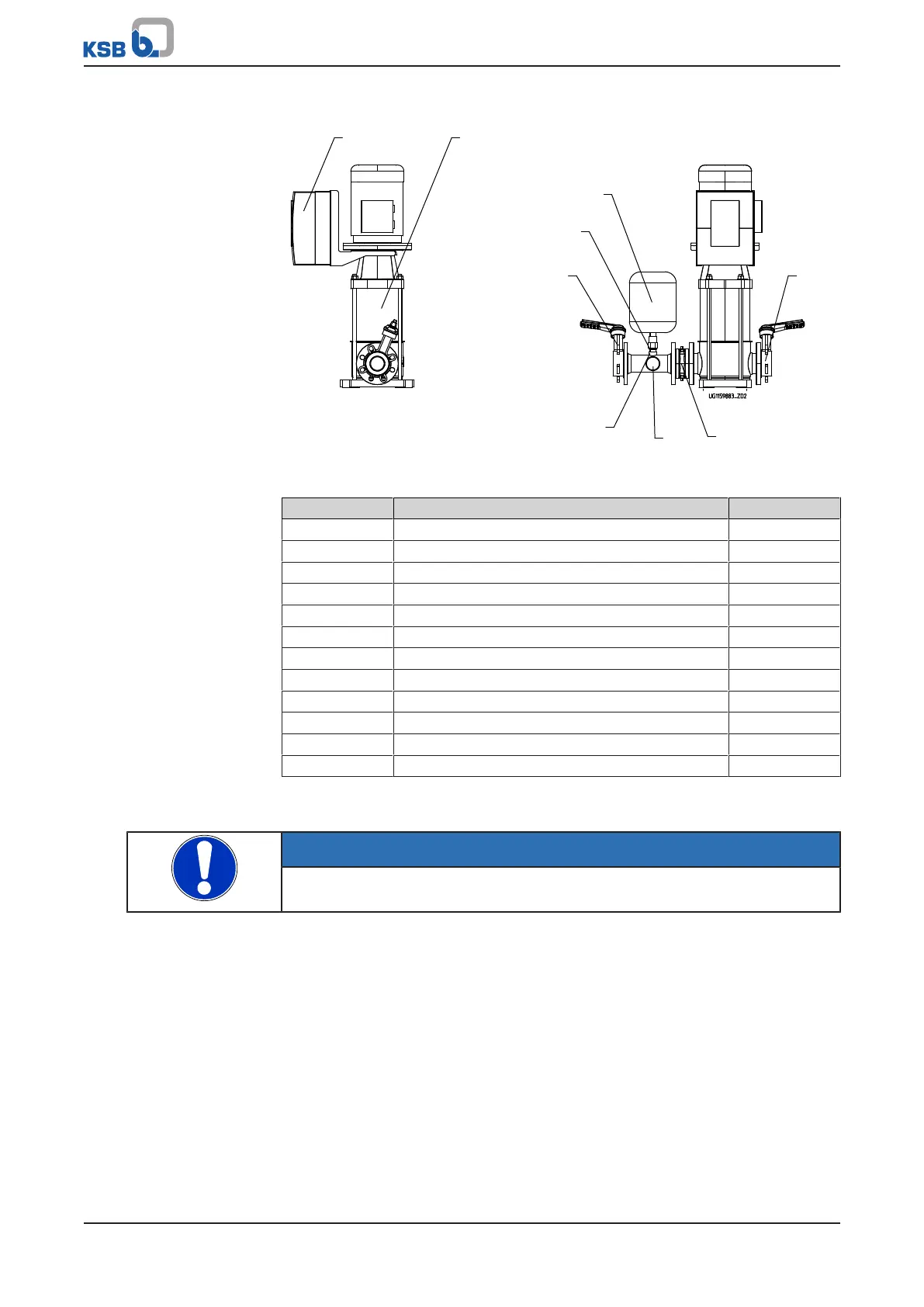

Fig.11: General assembly drawing of Hya-Solo DSV with Movitec 25, 40, 60, 90
Table23: Spare parts for Hya-SoloDSV with Movitec 25, 40, 60, 90
Part No. Description Ident. No.
591 Accumulator 01 079 764
655 Pump
691 Pressure gauge, discharge side 00 401 413
743 Ball valve (make Reflex) 01 079 765
746 Butterfly valve DN65 (Movitec 25) 40 982 350
746 Butterfly valve DN80 (Movitec 40) 40 982 351
746 Butterfly valve DN100 (Movitec 60, 90) 40 982 352
747 Swing check valve DN65 (Movitec 25) 01 086 243
747 Swing check valve DN80 (Movitec 40) 01 056 931
747 Swing check valve DN100 (Movitec 60, 90) 01 087 142
79-2 Measuring transducer 0-16bar 01 112 649
82-1 PumpDrive On request
For electric parts refer to the circuit diagram in the Annex.
Non-documented parts on request (please indicate serial No. or order No.)
NOTE
Pump spare parts correspond to Movitec in standard design (with round flange).
