Hya-Solo DSV
11 Related Documents
11.1 List of components
11.1.1 Hya-Solo DSV with Movitec 2, 4, 6, 10, 15
82-1 655
591
79-2
743.02
691 743.01742743.01

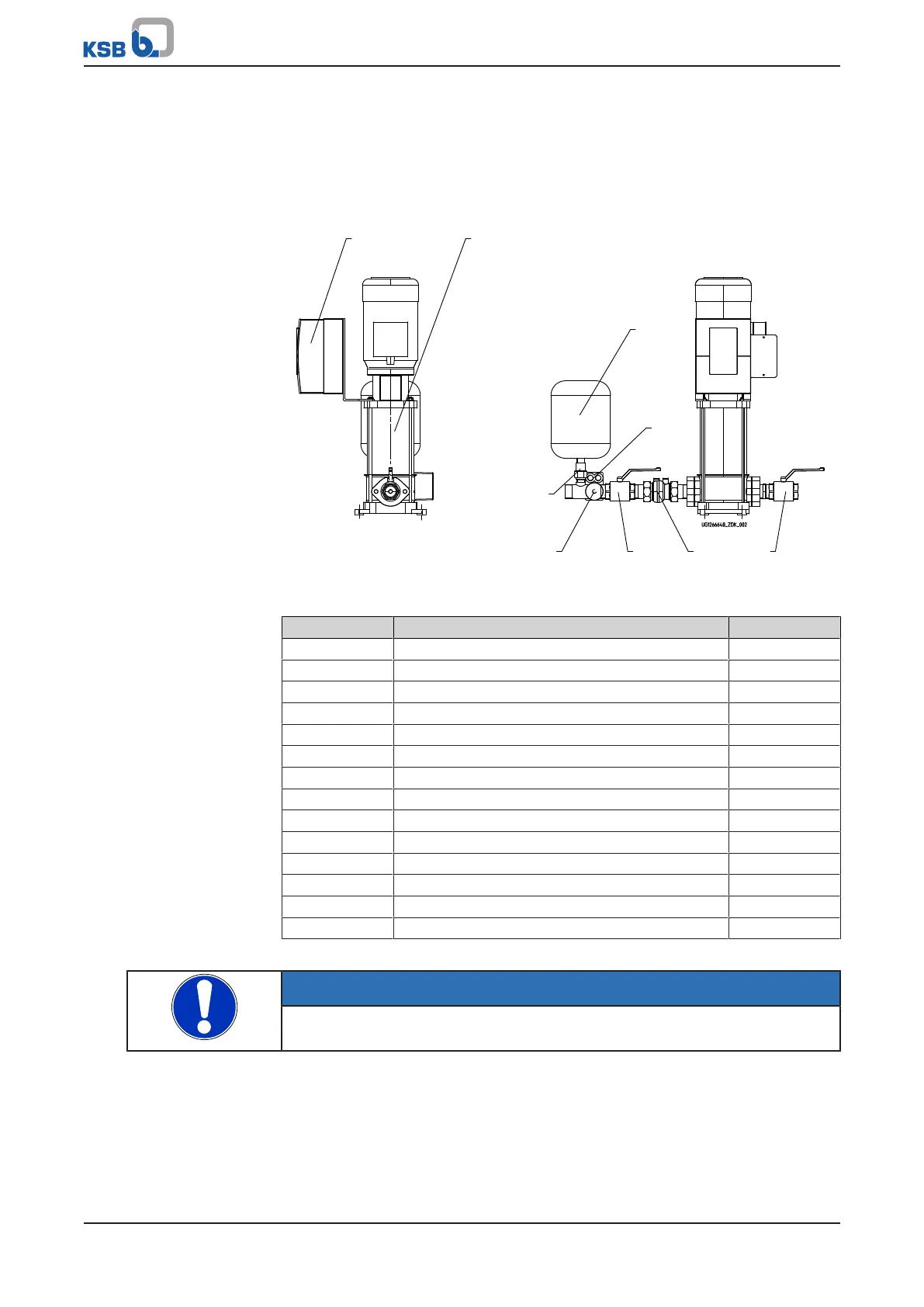

Fig.10: General assembly drawing of Hya-Solo DSV with Movitec 2, 4, 6, 10, 15
Table22: Spare parts for Hya-Solo DSV with Movitec 2, 4, 6, 10, 15
Part No. Description Ident. No.
591 Accumulator 01 079 764
655 Pump
691 Pressure gauge, discharge side 00 401 413
742 Lift check valve1 (Movitec 2, 4) 01 149 253
742 Lift check valve1
1
/
4
(Movitec 6) 01 149 254
742 Lift check valve1
1
/
2
(Movitec 10) 01 149 255
742 Lift check valve2 (Movitec 15) 01 149 256
743.01 Ball valve1 (Movitec 2, 4) 01 057 427
743.01 Ball valve1
1
/
4
(Movitec 6) 01 057 428
743.01 Ball valve1
1
/
2
(Movitec 10) 01 057 429
743.01 Ball valve2 (Movitec 15) 01 057 430
743.02 Ball valve (make Reflex) 01 079 765
79-2 Measuring transducer 0-16bar 01 112 649
82-1 PumpDrive On request
For electric parts refer to the circuit diagram in the Annex.
NOTE
Pump spare parts correspond to Movitec in standard design (with oval flange).
