KSB Omega User Manual

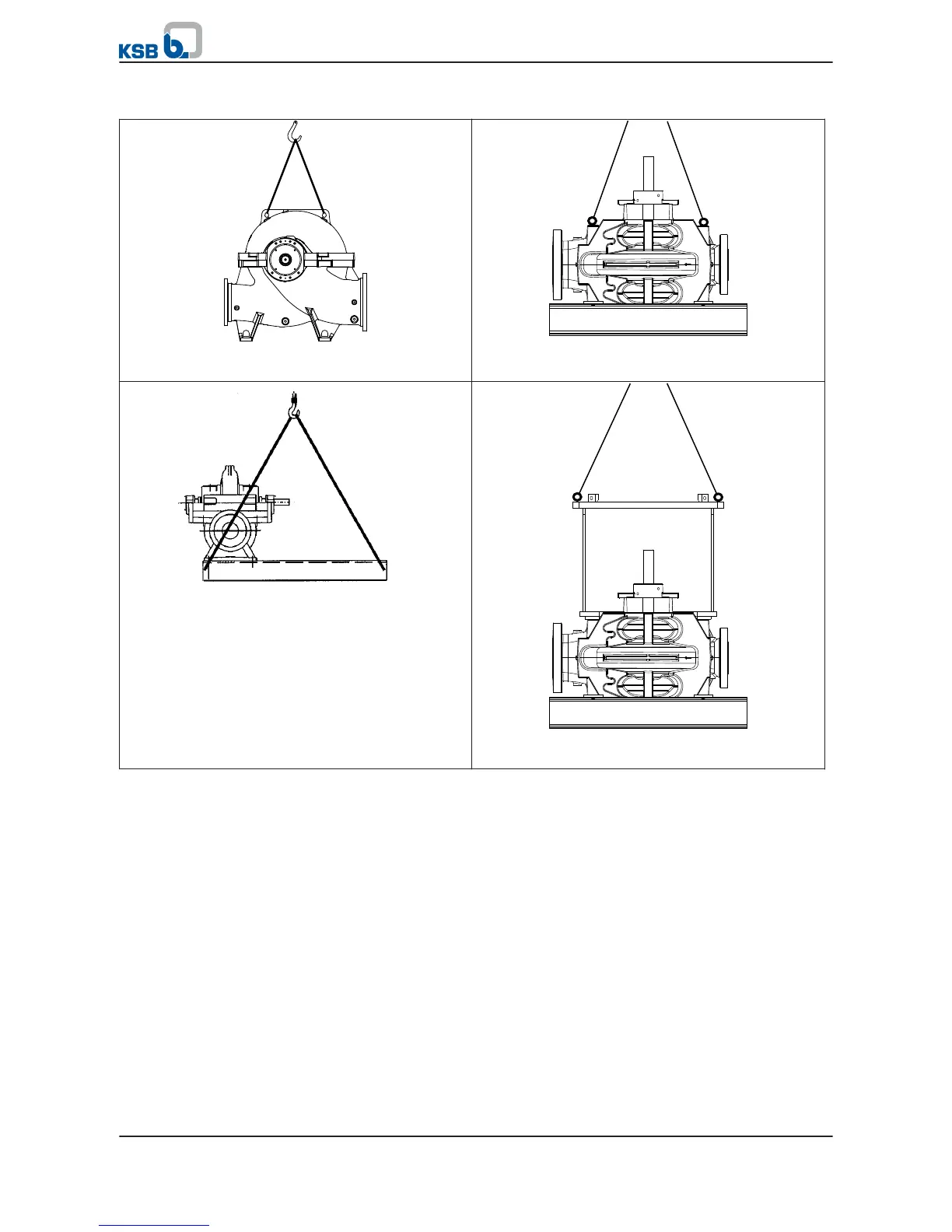

Table 5: Transport options
Transporting the pump horizontally
(figure 0)
Transporting the pump vertically
(figure 0 or installation type DJ)
Transporting the pump with base frame (figure 0)
▪ Motor size 315 and larger
▪ Total weight (of the pump set) more than 1500 kg
Transporting the pump vertically
(installation types DB and DK)
3 Transport/Temporary Storage/Disposal
Omega / Omega V
13 of 94

KSB Omega Specifications

General

Application	Water supply, irrigation
Operating pressure	Up to 16 bar
Speed	2900 rpm, 1450 rpm
Connection Size	DN 32 to DN 400
Housing Material	Cast iron, stainless steel
Impeller Material	Bronze, stainless steel, cast iron
Seal Type	Mechanical seal
Operating Temperature	-10°C to +120°C
