KSB Omega User Manual

9.2 General assembly drawing with list of components
9.2.1 Horizontally installed pump
940.02 525.02**** 471 411.01***
457.02 433 901.16 412.01
950 903.03 441
550.02 903.02 412.03
903.01 234 412.02 421.02* 903.04 932
102 502 524.01 550.01 550.01
920.05
550.11
904
421.01**
211
940.03
321
901.07
920.03
580
940.01
520
360
350.01
901.04
903.08

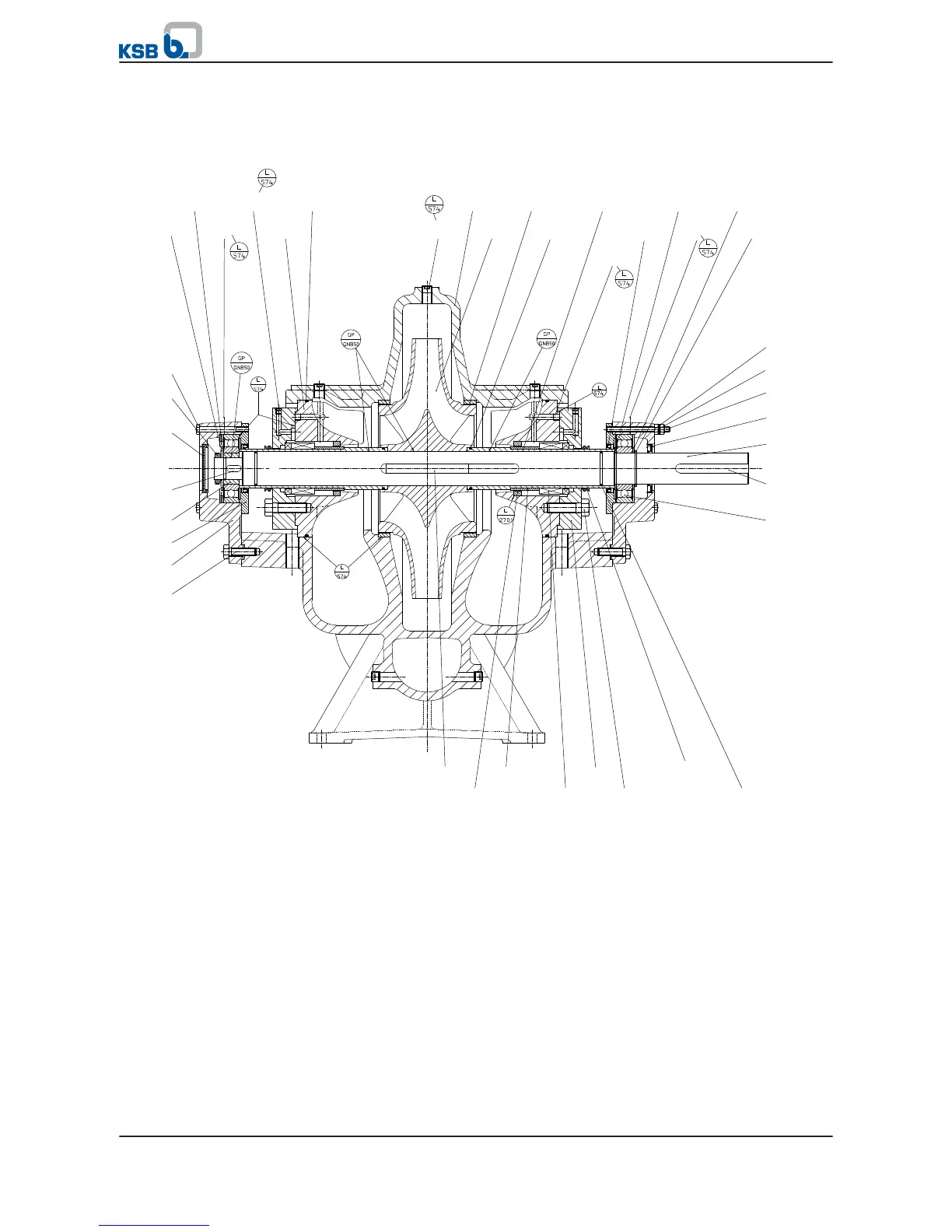

Fig. 35: General assembly drawing for horizontal installation
* For ATEX version labyrinth ring 423.02
** For ATEX version labyrinth ring 423.01
*** Does not apply to ATEX version
**** Does not apply to version with KSB mechanical seal 4OM
9 Related Documents
Omega / Omega V
75 of 94

KSB Omega Specifications

General

Application	Water supply, irrigation
Operating pressure	Up to 16 bar
Speed	2900 rpm, 1450 rpm
Connection Size	DN 32 to DN 400
Housing Material	Cast iron, stainless steel
Impeller Material	Bronze, stainless steel, cast iron
Seal Type	Mechanical seal
Operating Temperature	-10°C to +120°C
