KSB Omega User Manual

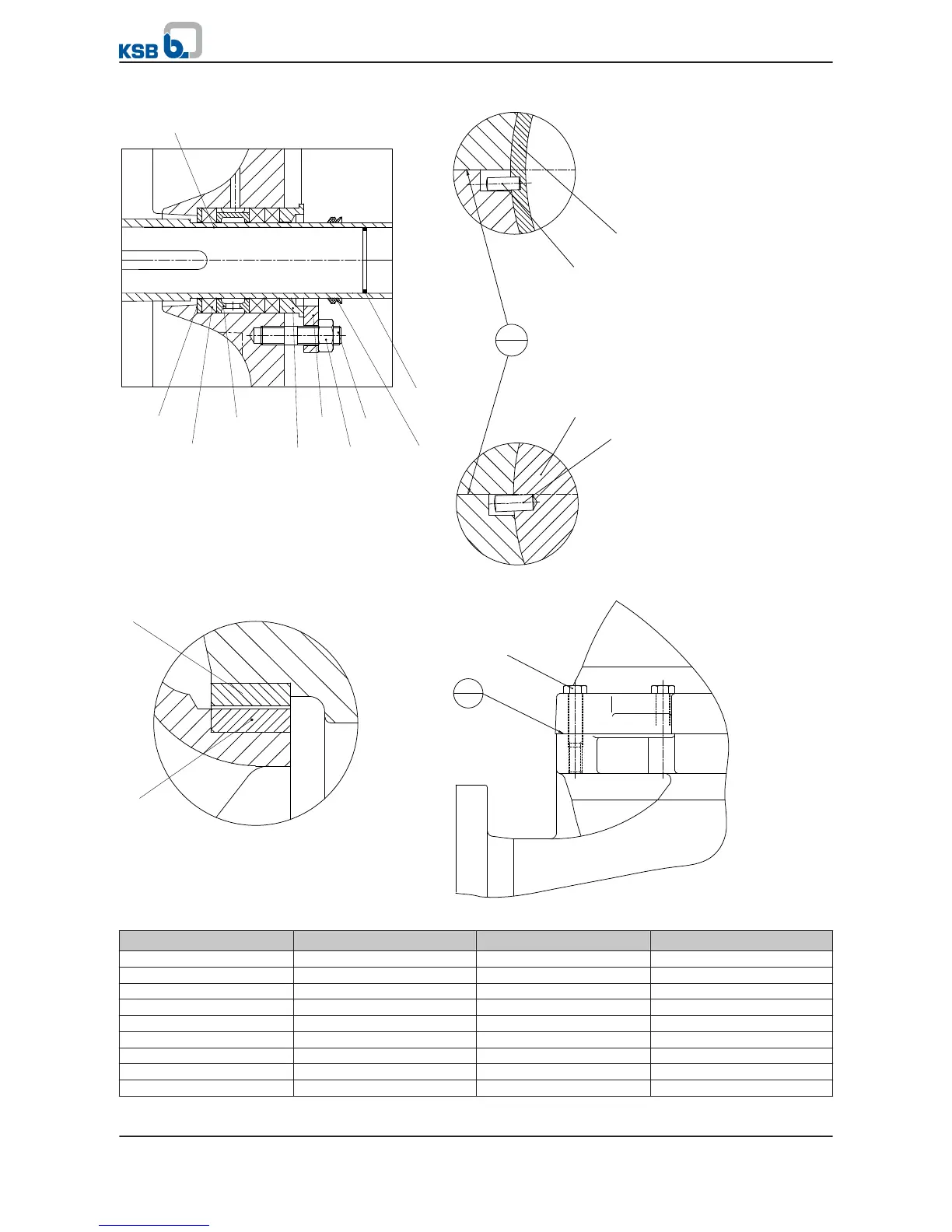

Detailed view: gland packing Detailed view: pin position
524.01
457
461
458
455
452
920.02
902.01
411.01
412.01
502
561.01
441
561.02
L
5203
Detailed view: casing wear ring / impeller wear ring Detailed view: bolts at the casing split flange
503
502
901.03
901.02
901.01
L
5203
Table 22: List of components
Part No. Description Part No. Description
102 Volute casing 471 Seal cover
211 Pump shaft 502 Casing wear ring
234 Impeller 503 Impeller wear ring
321 Radial ball bearing 520 Sleeve
350.01 Bearing housing 524.01 Shaft protecting sleeve
360 Bearing cover 525.02 Spacer sleeve
411.01 Joint ring 550.01/.02/.11 Disc
412.01/.02/.03 O-ring 561.01/.02 Grooved pin
421.01/.02 Lip seal 580 Cap
9 Related Documents
76 of 94
Omega / Omega V

KSB Omega Specifications

General

Application	Water supply, irrigation
Operating pressure	Up to 16 bar
Speed	2900 rpm, 1450 rpm
Connection Size	DN 32 to DN 400
Housing Material	Cast iron, stainless steel
Impeller Material	Bronze, stainless steel, cast iron
Seal Type	Mechanical seal
Operating Temperature	-10°C to +120°C
