KSB Omega User Manual

1
2
3
4
5
6

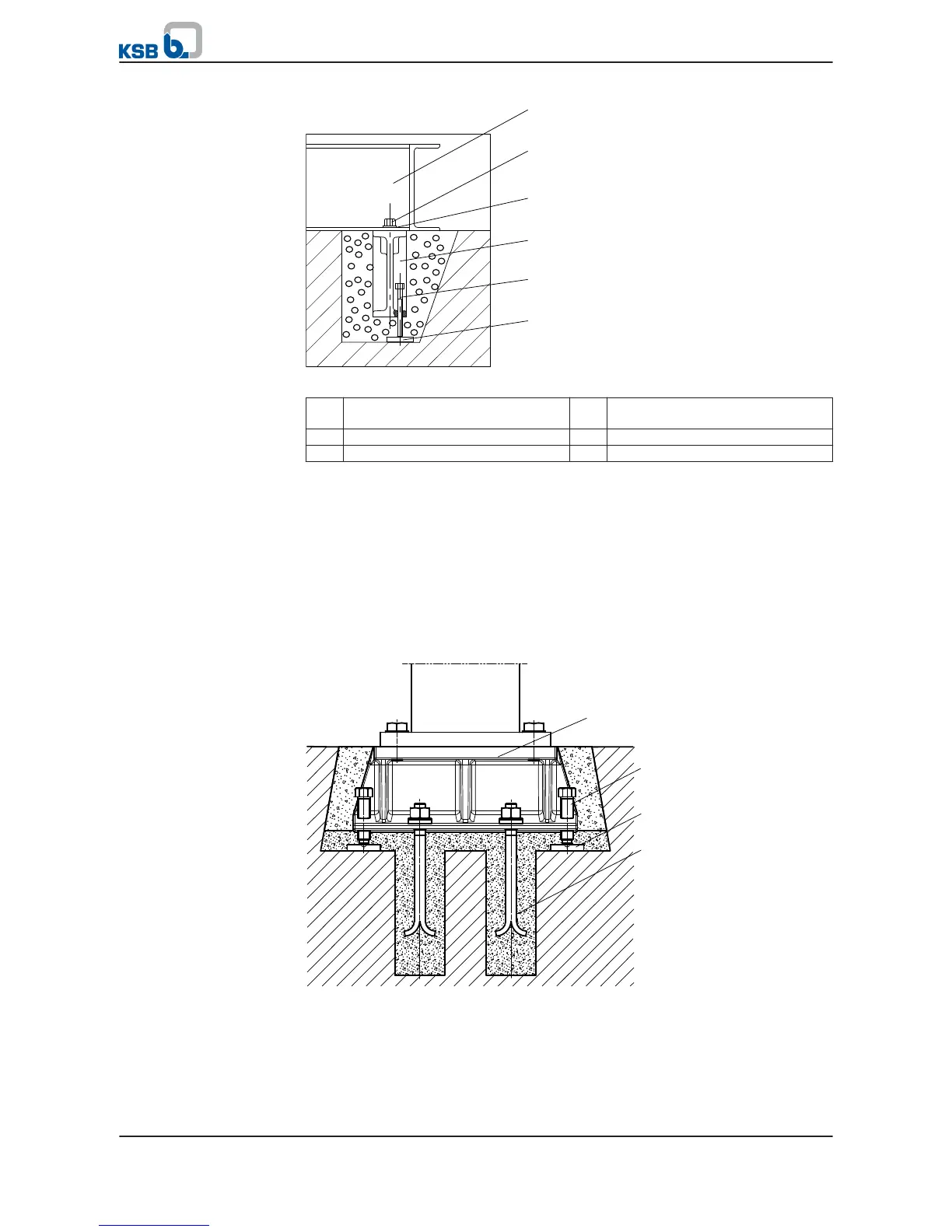

Fig. 11: Installation drawing
1
Foot, part No. 182 2 Hexagon head bolt, part No.
901-11
3 Disc, part No. 550.05 4 Foundation block, part No. 898.01
5 Adjusting screw, part No. 901.10 6 Shim, part No. 89-4.04
1. Screw the foundation blocks (4) with hexagon head bolts (2) and discs (3) to the
foot (1).
2. Screw the adjusting screws (5) into the foundation blocks (4).
3. Place the shim (6) into the recesses for the foundation blocks (4) in accordance
with the general arrangement drawing.
4. Align the pump with the piping.
5. Place the foot (4) including the foundation blocks (1) with the adjusting screws
(5) on the shims (6). Use the adjusting screws to align the foot.
Installing the motor support frame
1
2
3
4
Fig. 12: Installation drawing
1. Screw adjusting screws (2) into the foundation rails (1) in accordance with the
general arrangement drawing.
2. Insert the foundation bolts (4) into the drilled holes of the foundation rails (1).
3. Place shims (3) into the recesses for the foundation rails (1) in the foundation.
5 Installation at Site
Omega / Omega V
29 of 94

KSB Omega Specifications

General

Application	Water supply, irrigation
Operating pressure	Up to 16 bar
Speed	2900 rpm, 1450 rpm
Connection Size	DN 32 to DN 400
Housing Material	Cast iron, stainless steel
Impeller Material	Bronze, stainless steel, cast iron
Seal Type	Mechanical seal
Operating Temperature	-10°C to +120°C
