The forces and moments indicated refer to external, simultaneous loads in 3
dimensions (F
x
= F
y
= F
z
and M
x
= M
y
= M
z
). They only apply if the pump set has been
properly installed in accordance with the installation/operating manual. The forces
and moments in any direction must not exceed the values given in the table. The
data on forces and moments apply to static piping loads only. If the limits are
exceeded, the values must be checked and verified. The piping must be connected
without transmitting any stresses or strains. The pump must not be used as support
for the piping. The pump is not an anchorage point for the piping. The piping must
be fastened without transmitting any forces, vibrations or pipe weights to the pump.
Observe the limits for forces and moments at the suction and discharge nozzle. The
pump must not be connected with unbraced expansion joints.
F
x
F
z
F
y
M
y
M
z
M
x

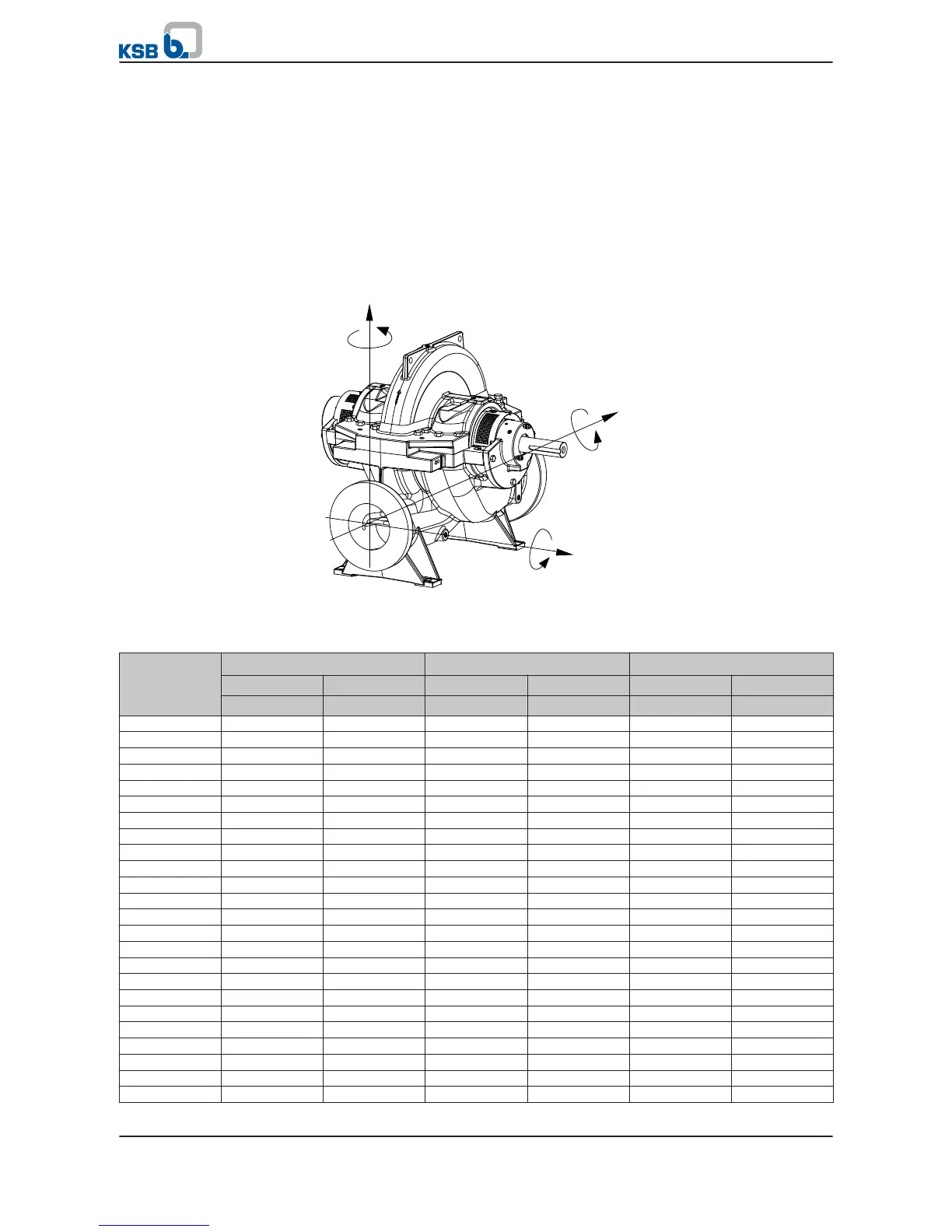

Fig. 18: Flange coordinates
Table 10: Forces and moments at the pump nozzles depending on the material [N/Nm]
Size Grey cast iron (GB/GC) Nodular cast iron (SB/SC) Cast steel (DD
35
)
Fx / Fy / Fz Mx / My / Mz Fx / Fy / Fz Mx / My / Mz Fx / Fy / Fz Mx / My / Mz
[N] [Nm] [N] [Nm] [N] [Nm]
80 - 210 800 500 1120 700 1520 950
80 - 270 800 500 1120 700 1520 950
80 - 370 800 500 1120 700 1520 950
100 - 250 1000 700 1400 980 1900 1330
100 - 310 1000 700 1400 980 1900 1330
100 - 375 1000 700 1400 980 1900 1330
125 - 230 1500 1000 2100 1400 2850 1900
125 - 290 1500 1000 2100 1400 2850 1900
125 - 365 2000 1500 2800 2100 3800 2850
125 - 500 2000 1500 2800 2100 3800 2850
150 - 290 2500 1500 3500 2100 4750 2850
150 - 360 2500 2000 3500 2800 4750 3800
150 - 460 2500 2000 3500 2800 4750 3800
150 - 605 3000 2000 4200 2800 5700 3800
200 - 320 4000 2750 5600 3850 7600 5225
200 - 420 4000 2750 5600 3850 7600 5225
200 - 520 4000 2750 5600 3850 7600 5225
200 - 670 4000 2750 5600 3850 7600 5225
250 - 370 4000 2750 5600 3850 7600 5225
250 - 480 4000 2750 5600 3850 7600 5225
250 - 600 4000 2750 5600 3850 7600 5225
250 - 800 4000 2750 5600 3850 7600 5225
300 - 300 4000 3000 5600 4200 7600 5700
300 - 435 4000 3000 5600 4200 7600 5700
5 Installation at Site
Omega / Omega V
35 of 94

KSB Omega Specifications

General

Application	Water supply, irrigation
Operating pressure	Up to 16 bar
Speed	2900 rpm, 1450 rpm
Connection Size	DN 32 to DN 400
Housing Material	Cast iron, stainless steel
Impeller Material	Bronze, stainless steel, cast iron
Seal Type	Mechanical seal
Operating Temperature	-10°C to +120°C
