KTM 125 Repair Manual

Repair manual KTM 125 / 200
Art No 3.206.005 -E
4-2C
FIG PART. NO. DESCRIPTIOIN
1 560.12.001.000 Universal engine work stand
3 503.29.003.000 Clutch holder 125 / 200
4 503.29.004.000 Holding spanner for primary gear wheel
5 546.29.009.044 Magneto extractor M27x1 Kokusan
7 510.12.011.000 Circlip plier
8 546.29.012.100 Holding spanner for flywheel Kokusan 2K-1/2/3/4
13 501.12.013.000 Dial gauge 1-10 mm
14 501.12.030.000 Dial gauge support
16 6 899 785 Loctite 243 blue 6 ccm
20 584.29.037.037 Mounting tool inner ring NJ206
22 503.29.022.000 Adjusting plate for control flap
38 503.29.038.000 Holding plate for locating drum

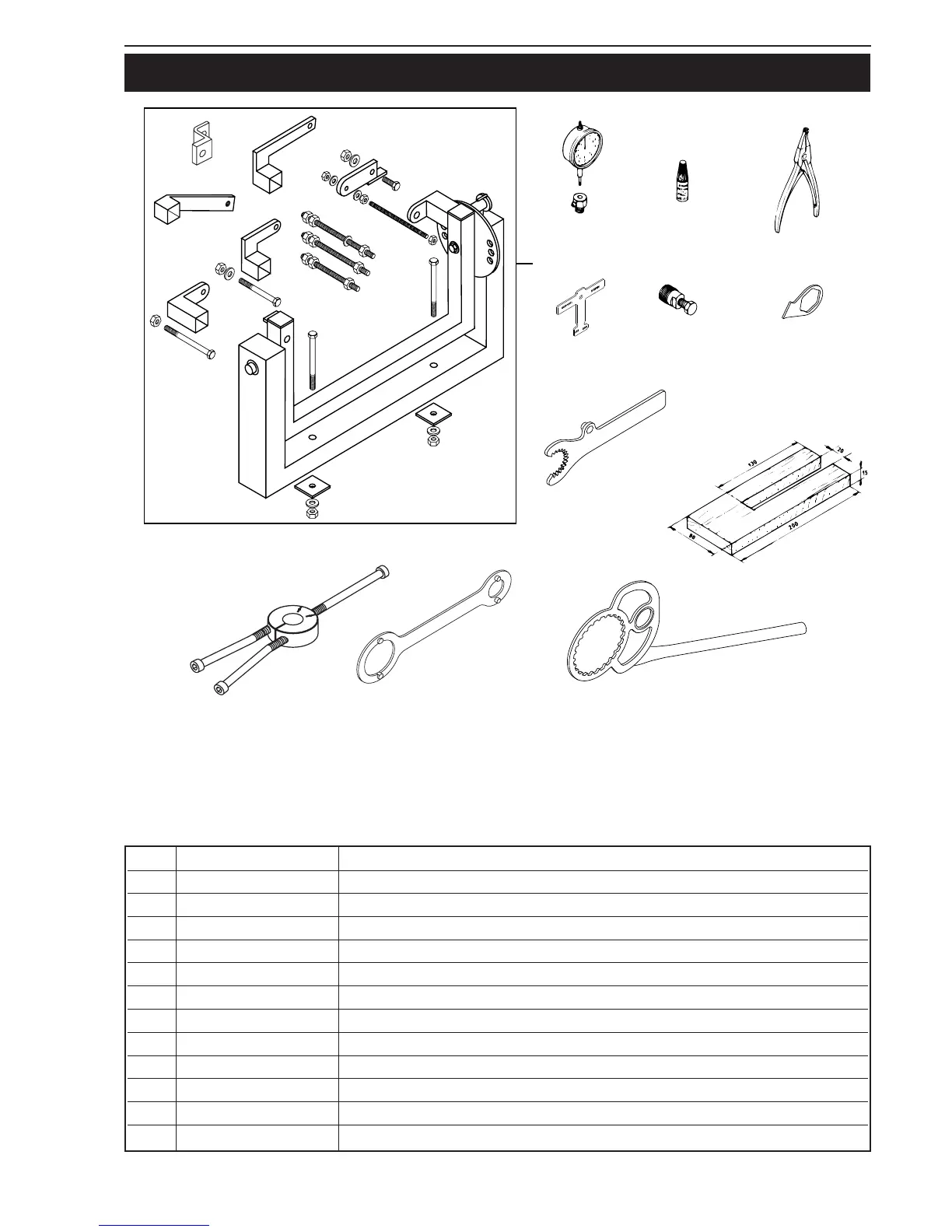

SPECIAL TOOLS – ENGINE 125 / 200
7
5
8
HOLZGABEL
SELBSTGEFERTIGT
WOODEN FORK PLATE
HOME MADE
38
22
1
20
3
4
13
14
16

KTM 125 Specifications

General

Bore x Stroke	54 mm x 54.5 mm
Starter	Kickstarter
Transmission	6-speed
Engine Type	Single-cylinder, 2-stroke
Displacement	124.8 cm³
Cooling System	Liquid cooled
Fuel System	Carburetor
Lubrication	Premix (oil-fuel mixture)
