KTM 125 - Mounting the Clutch Slave Cylinder; Filling in the Gear Oil

Repair manual KTM 125 / 200
Art No 3.206.005 -E
6-12C

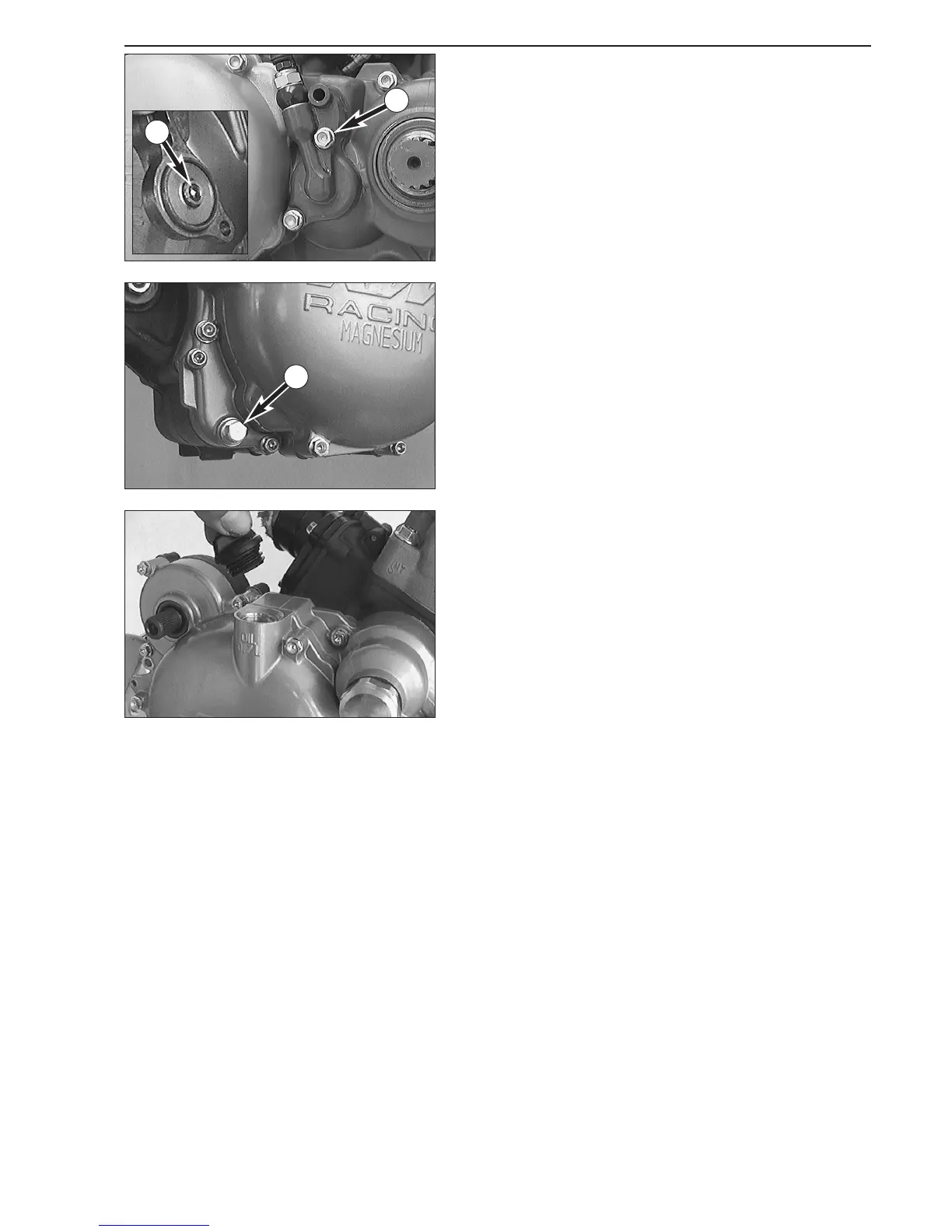

Mounting the clutch slave cylinder
–Verify that the ball 2 has been correctly mounted in the piston of the
clutch slave cylinder.
– Put a new gasket in place, and mount the clutch slave cylinder. Apply
Loctite 243 onto the bolt's
1 thread.
NOTE: to make shure the clutch works well, the correct thickness of the
clutch slave cylinder gasket is to be measured - see dimension Y.
Filling in the gear oil
– Mount the oil drain plug with a new seal ring and tighten with 15 Nm
(11 ft.lb.).
– Remove the plug at the clutch cover and fill in 0.70 l oil (see
spezifications chapter 9).
– Mount the plug and check the engine for leaks.
– Mount kickstart and shift lever.
3
1
2
