KTM 125 Repair Manual

2-6C
Repair manual KTM 125 / 200
Art No 3.206.005 -E

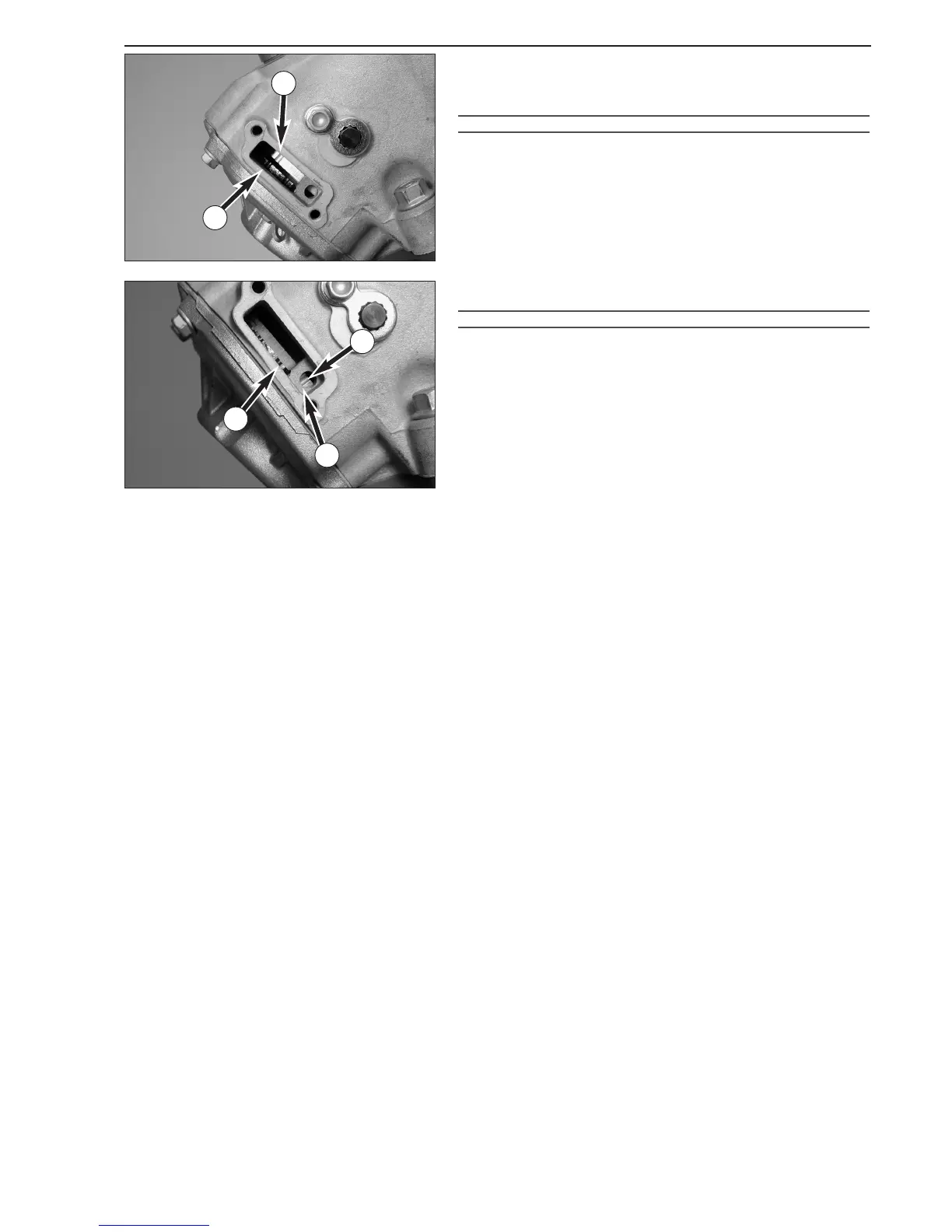

Check of the exhaust control (engine running)
– Remove the left side cover from the cylinder.
– Start engine.
– Mark
1 of the control segment is near by mark 2 of the guide plate.
! CAUTION !
B
ASE POSITION MUST BE ADJUSTED WITH A DEPTH GAUGE
- SHOWN IN CHAPTER
6-10 - DIMENSION „Z“.
– Open throttle flap, with increasing the revolutions mark
1 moves
downwards to the bore in the housing
3.
! CAUTION
!
–MARK 4 IS NOT USED.
–I
F MARK 1 DOES NOT REACH BORE 3 OR DOES NOT MOVE,
THE EXHAUST
CONTROL MECHANISM IS TO BE OVERHAULED
.
– Mount cover and tighten the bolts.
1
3
1
2
4

KTM 125 Specifications

General

Bore x Stroke	54 mm x 54.5 mm
Starter	Kickstarter
Transmission	6-speed
Engine Type	Single-cylinder, 2-stroke
Displacement	124.8 cm³
Cooling System	Liquid cooled
Fuel System	Carburetor
Lubrication	Premix (oil-fuel mixture)
