14 BRAKE SYSTEM 106
14.1 ABS/antilock brake system
401999-10

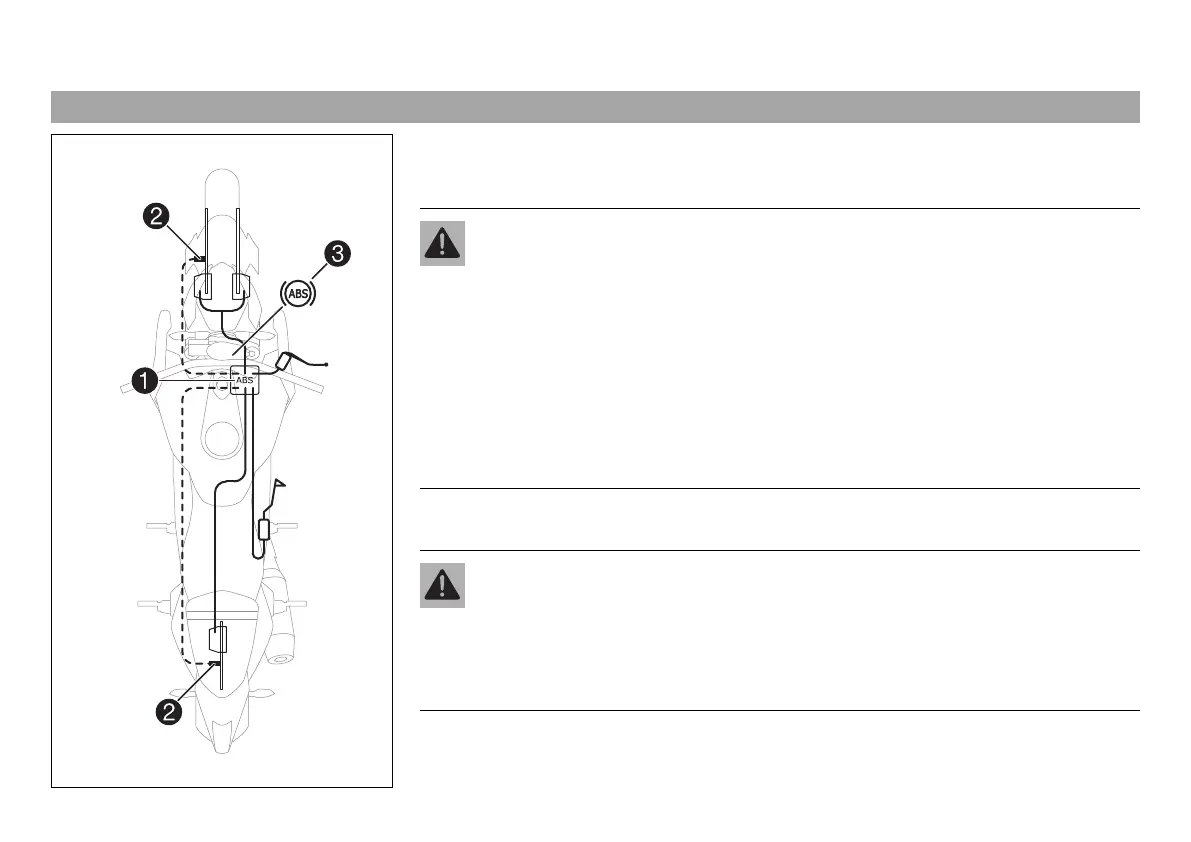

The ABS unit
, which consists of a hydraulic unit, brake electronics control unit, and
return pump, is installed on the right vehicle side below the fuel tank. A wheel speed sen-
sor
is located at the front and rear wheels.
Warning
Danger of accidents Functional limitations of the ABS
– The rear wheel may only be spun with the front brake applied (burn out) if the
ABS is switched off.
– If the vehicle has been modified, such as shortened or lengthened spring deflec-
tions, different rim diameters, different tires, the wrong tire air pressure, differ-
ent brake linings, etc., the ABS will not function optimally. Optimal function-
ing of the ABS is only ensured if the brake system only contains spare parts and
tires that have been approved and/or recommended by KTM.
– Service work and repairs must be performed properly. (Your authorized KTM
workshop will be glad to help.)
The ABS is a safety system that prevents locking of the wheels when driving straight ahead
without the influence of lateral forces.
Warning
Danger of accidents Vehicle rollover
– It is not always possible to prevent vehicle rollover in extreme riding situations
(e. g. luggage loaded with a high center of gravity, varying road surfaces, steep
descents, full braking without disengaging the gear). Adapt your riding style to
the road conditions and your riding ability.
ABS has two operating modes: the "ROAD" and "SUP MOT" ABS modes.
In the "ROAD" ABS mode, the ABS controls both wheels.
