8 ERGONOMICS 56

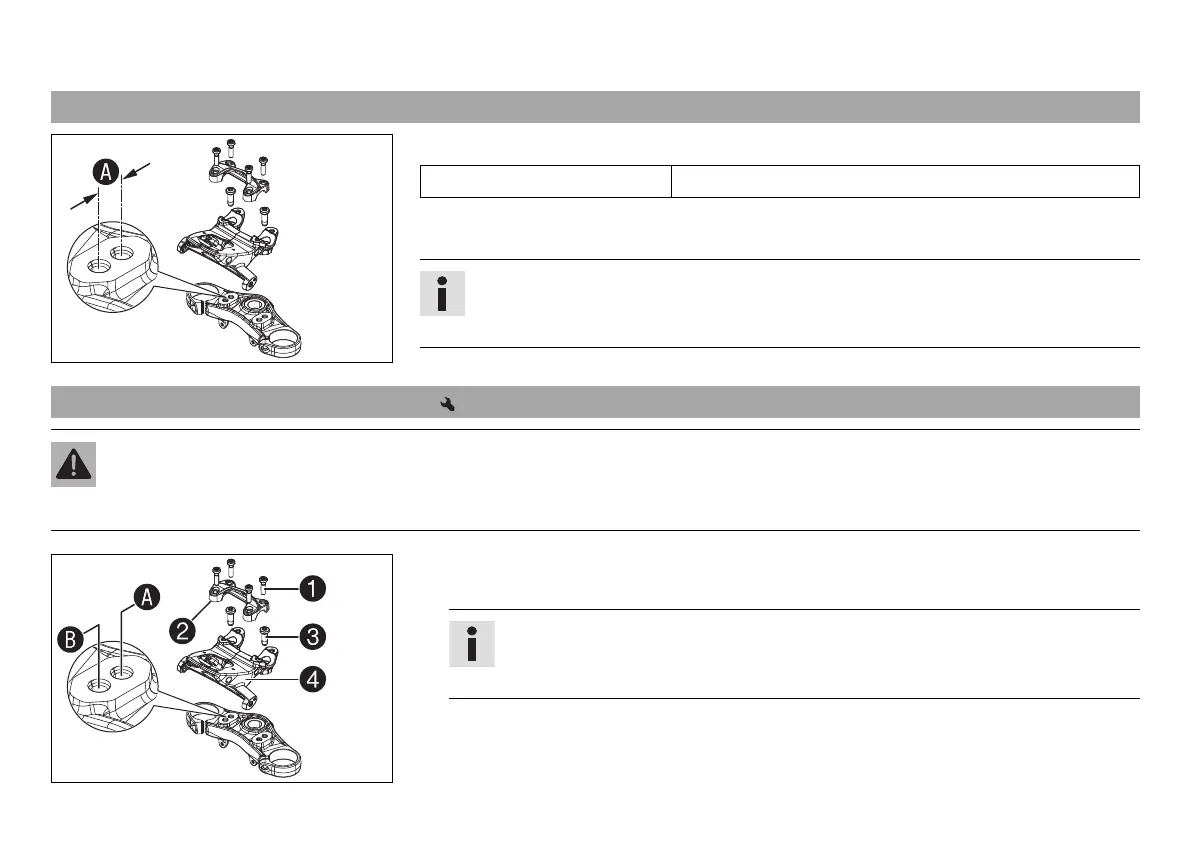

8.1 Handlebar position
402000-11
On the upper triple clamp there are two holes a distance of
apart.
Hole distance
15 mm (0.59 in)
The handlebar can be mounted in two different positions. In this way, the handlebar can be
mounted in the position that is most comfortable for the rider.
Info
KTM recommends the front handlebar position when using the vehicle on a race
track.
8.2 Adjusting the handlebar position
Warning
Danger of accidents Handlebar breakage.
– If the handlebar is bent or straightened it will cause material fatigue, and the handlebar can break. Always replace handlebar.
L01476-10
–
Remove screws
. Take off handlebar clamp
. Position the handlebar so that
screws
are accessible.
Info
Protect the components against damage by covering them.
Do not kink the cables and lines.
–
Remove screws
. Take off instrument support
.
–
Move the instrument support into the desired position
or
. Mount and tighten
screws
.
