16 ELECTRICAL SYSTEM 144
» If the boundary between light and dark does not meet specifications:
– Adjust the headlight range. ( p. 144)
16.9 Adjusting the headlight range
Preparatory work
– Check the headlight setting. ( p. 143)
L01451-10
Main work
–

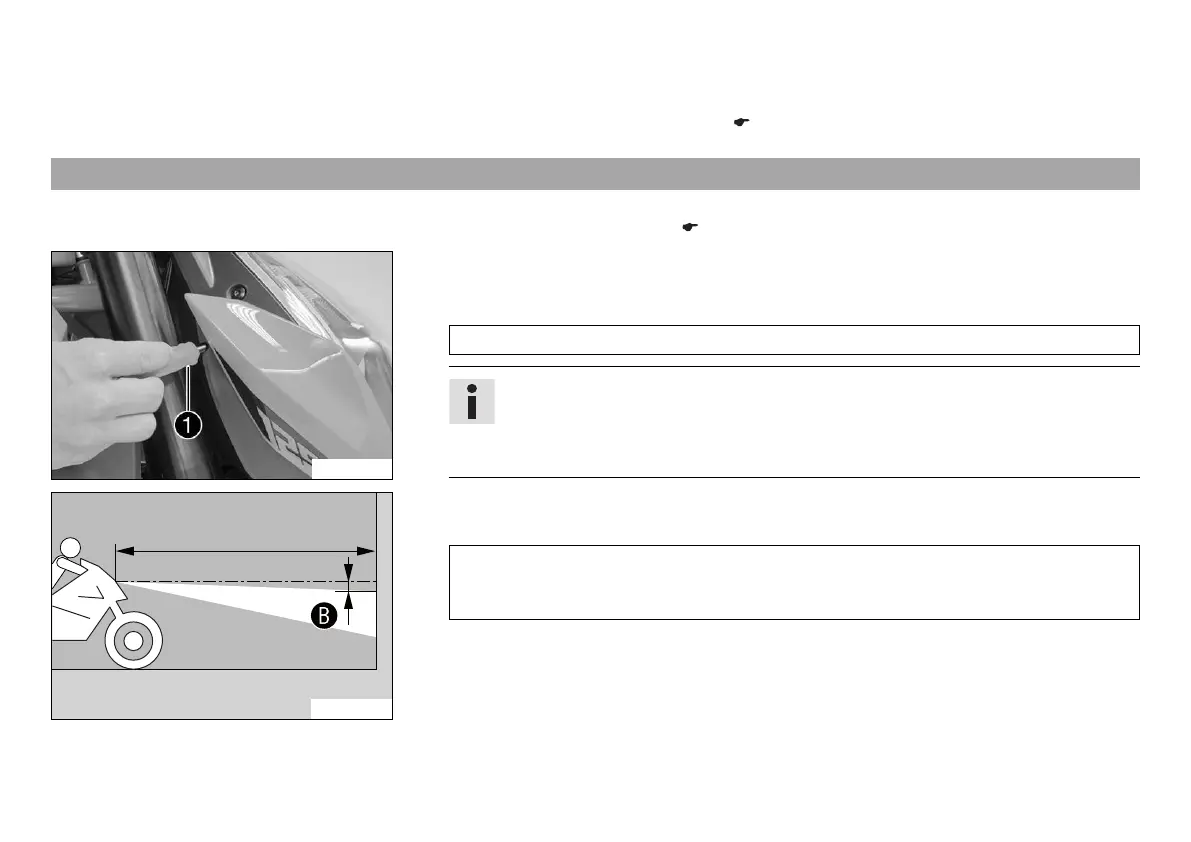

Using the cross-head screwdriver
from the tool set, adjust the headlight range of the
headlight.
Cross-head screwdriver (53012024100)
Info
Turn clockwise to increase the headlight range; turn counterclockwise to reduce
the headlight range.
If you have a payload, you may have to correct the headlight range.
400726-11
–
Set the headlight to marking
.
Guideline
The light-dark boundary must lie exactly on the lower mark
when the motorcycle
is ready to operate with the rider mounted along with any luggage and a passenger if
applicable.
