KTM 1290 Super Duke R EU 2015 - Setting the Step Plate of the Foot Brake Lever

8 ERGONOMICS 59
8.6 Setting the step plate of the foot brake lever

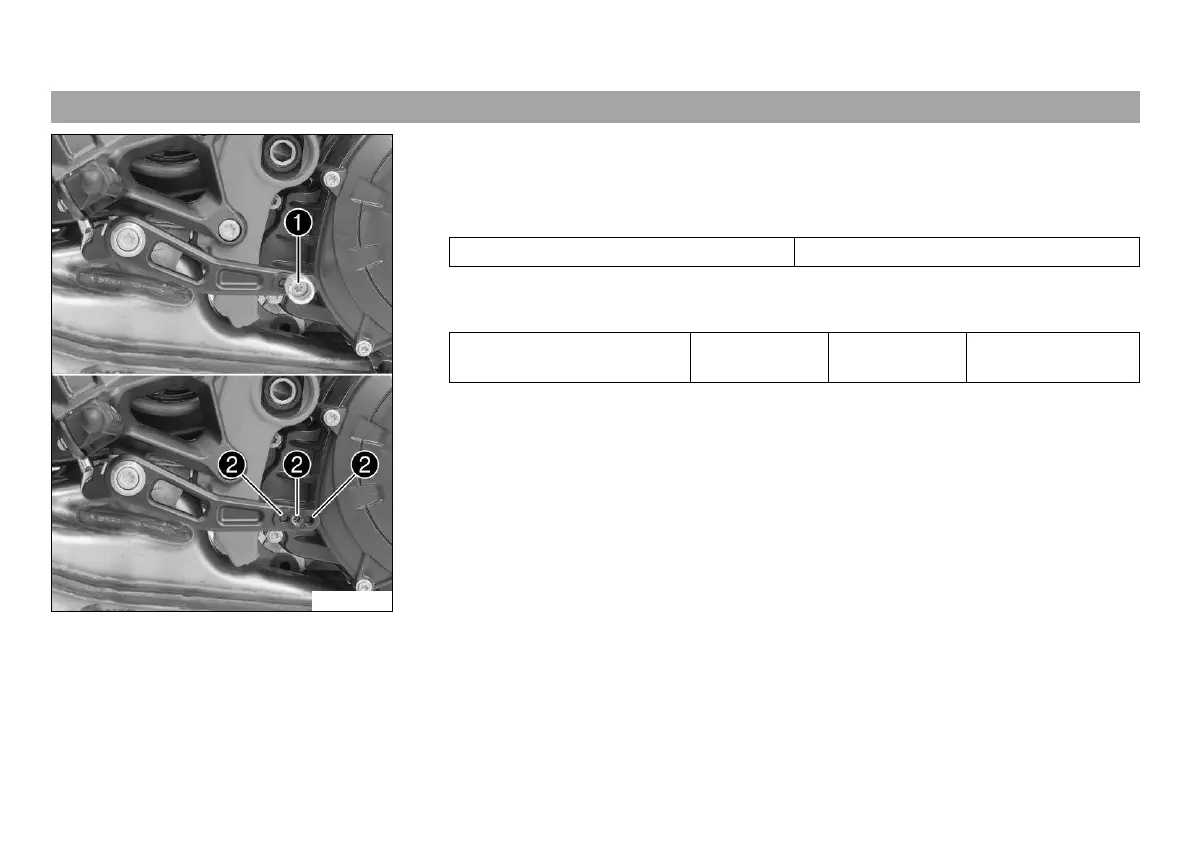

L01461-10
–
Remove screw

together with the foot plate of the foot brake lever.
– To adjust the length of the foot brake lever, position the step plate of the foot brake
lever using screw

in a drill hole

.
Guideline
Standard Middle hole
–
Tighten screw

.
Guideline
Screw, step plate for foot
brake lever
M6 10 Nm
(7.4 lbf ft)
Loctite
®
243™
