12 SUSPENSION SETTING 85
12.6 Adjusting the high-speed compression damping of the shock absorber
Caution
Danger of accidents Disassembly of pressurized parts can lead to injury.
– The shock absorber is filled with high density nitrogen. Adhere to the description provided. (Your authorized KTM workshop will
be glad to help.)
Info
The high-speed setting takes effect during the fast compression of the shock absorber.

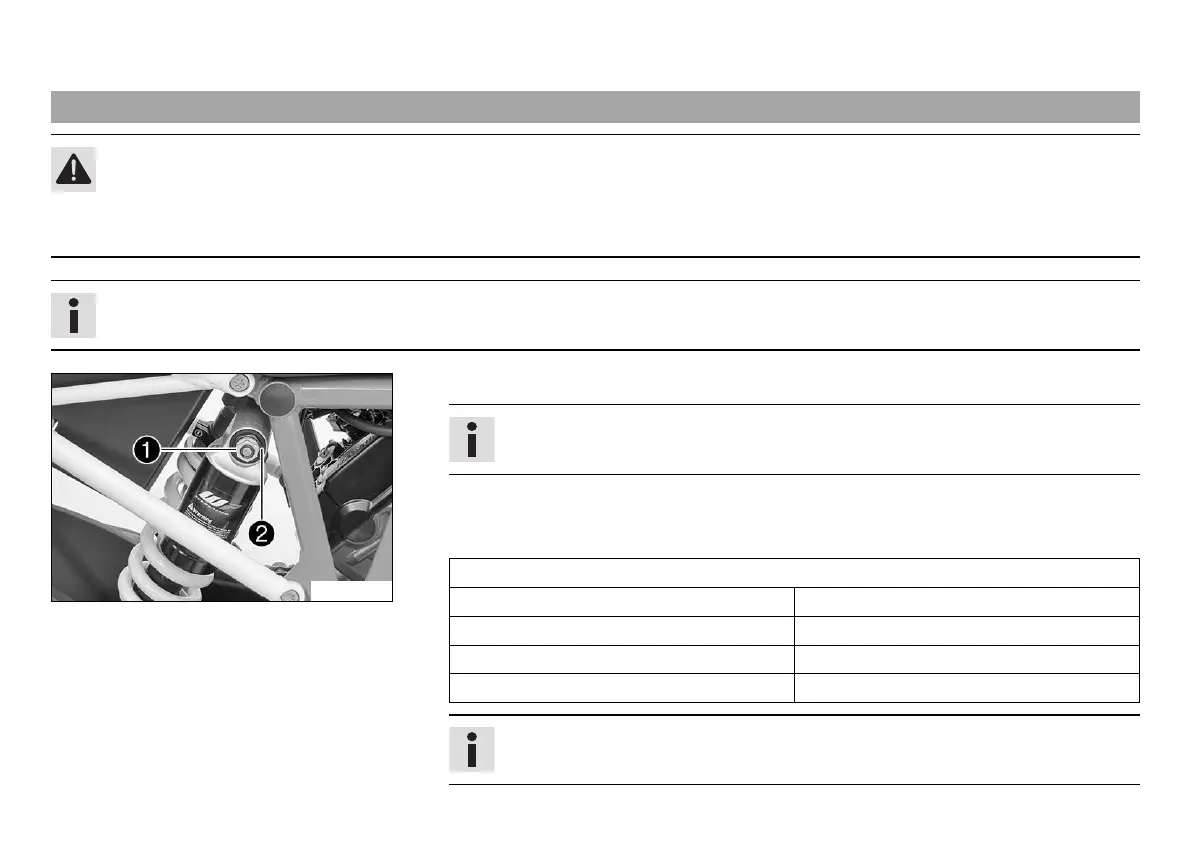

500314-10
–
Turn adjusting screw
all the way clockwise with a socket wrench.
Info
Do not loosen fitting
!
– Turn counterclockwise by the number of turns corresponding to the shock absorber
type.
Guideline
Compression damping, high-speed
Comfort 1.5 turns
Standard 1.5 turns
Sport 1 turn
Full payload 1 turn
Info
Turn clockwise to increase damping; turn counterclockwise to reduce damping.
