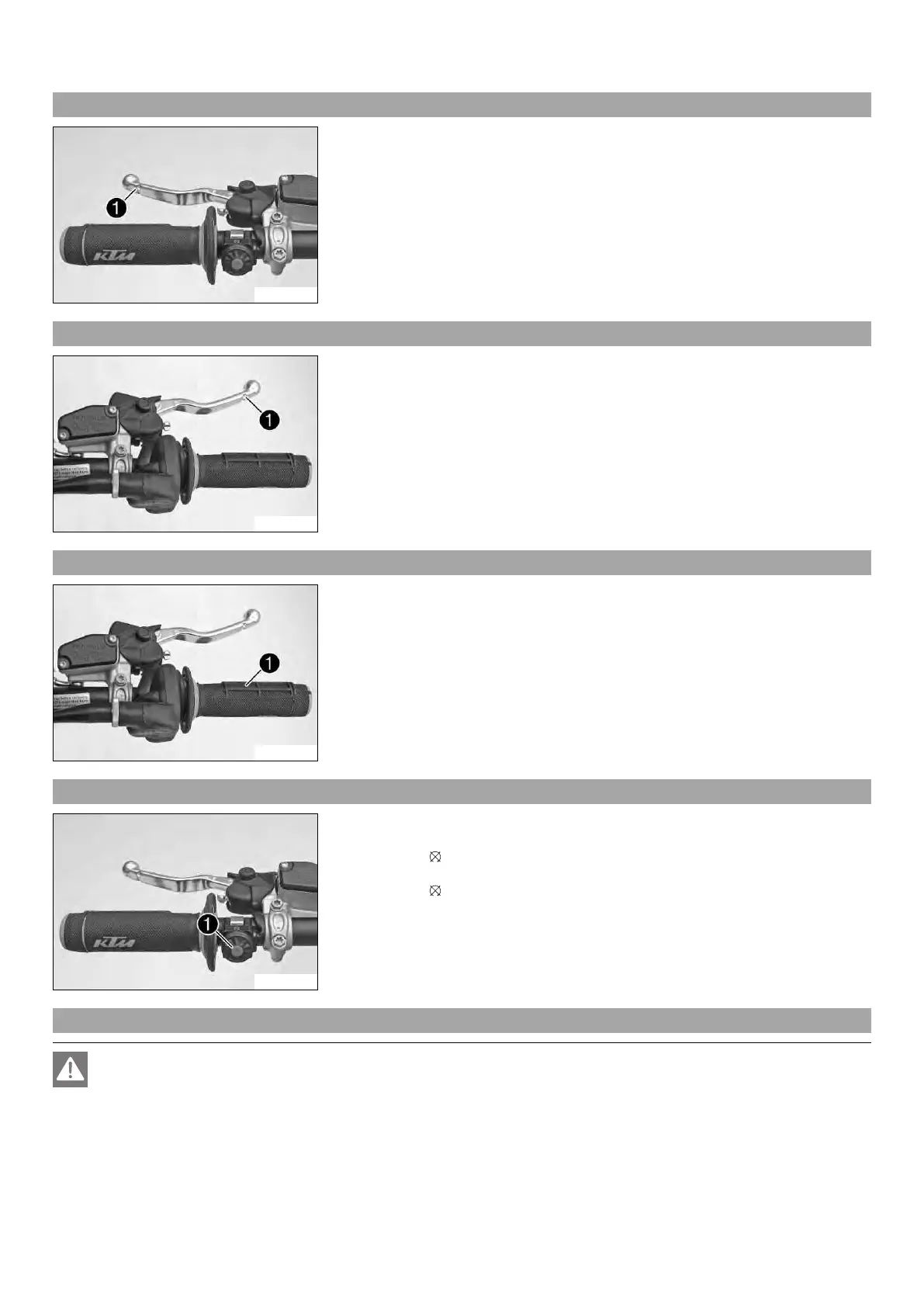

6 CONTROLS 11
6.1 Clutch lever
602653-10
The clutch lever 1 is fitted on the left side of the handlebar.
The clutch is hydraulically operated and self-adjusting.
6.2 Hand brake lever
602654-10
Hand brake lever 1 is fitted on the right side of the handlebar.
The hand brake lever is used to activate the front brake.
6.3 Throttle grip
602654-11
Throttle grip 1 is fitted on the right side of the handlebar.
6.4 Kill switch
602653-12
Kill switch 1 is fitted on the left side of the handlebar.
Possible states
• Kill switch in basic position – In this position, the ignition circuit is closed, and
the engine can be started.
• Kill switch pressed – In this position, the ignition circuit is interrupted, a run-
ning engine stops, and a non-running engine will not start.
6.5 Opening the filler cap
Danger
Fire hazard Fuel is highly flammable.
– Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no
fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
– The fuel in the fuel tank expands when warm and may emerge if overfilled. Follow the instructions on refueling.
