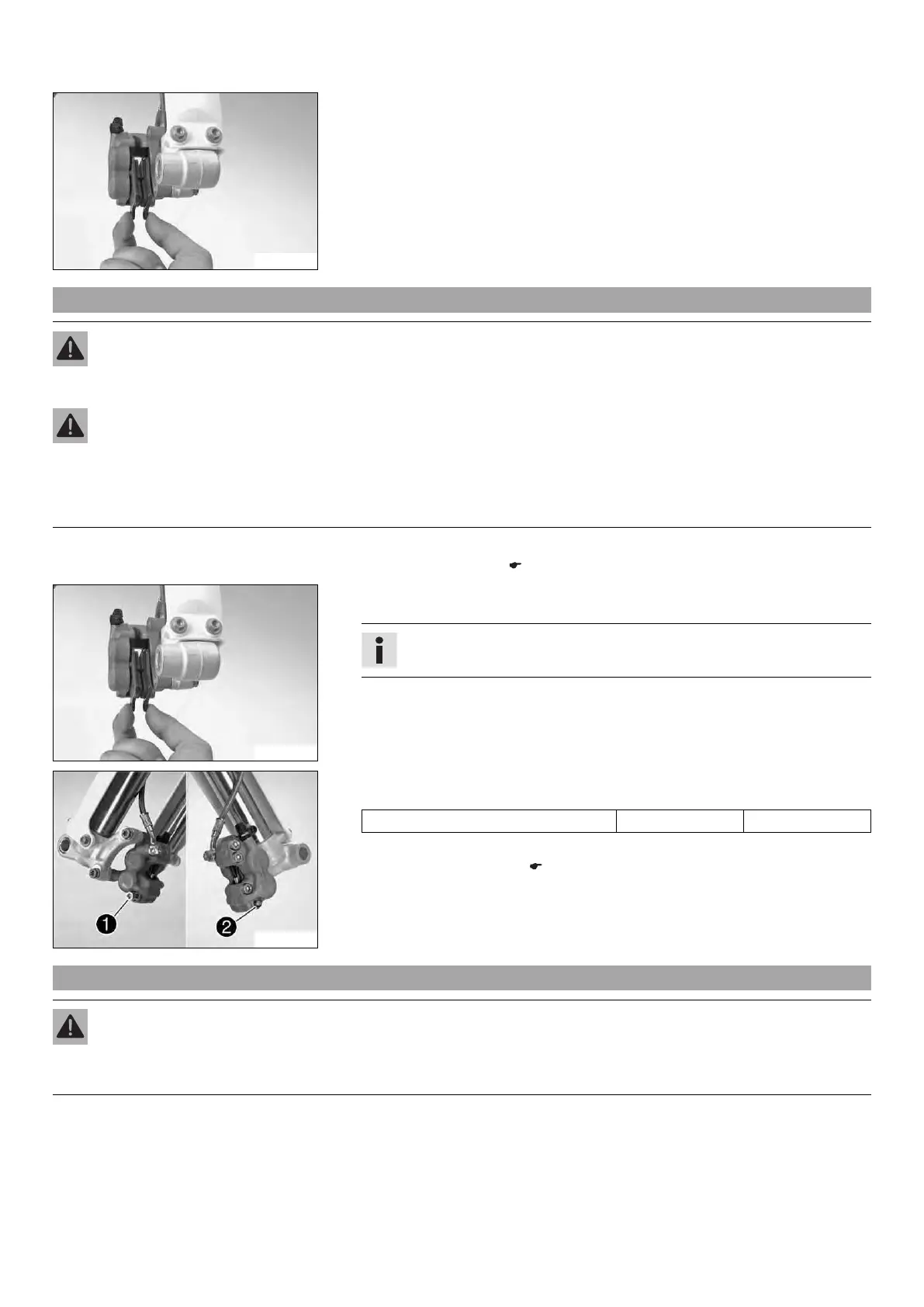

12 BRAKE SYSTEM 52
C00032-01
– Remove the brake linings.
– Clean brake caliper and brake caliper support.
12.9 Installing the front brake linings x
Warning
Danger of accidents Reduced braking efficiency due to oil or grease on the brake discs.
– Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary.
Warning
Danger of accidents Reduced braking efficiency due to use of non-approved brake linings.
– Brake linings available from accessory suppliers are often not tested and approved for use on KTM vehicles. The construc-
tion and friction factor of the brake linings and therefore the brake power can differ considerably from the original KTM
brake linings. If brake linings are used that differ from the originals, there is no guarantee that they comply with the origi-
nal license. The vehicle no longer corresponds to the condition at delivery, and the warranty is no longer valid.
Preparatory work
– Check the brake discs. ( p. 48)
C00032-01
Main work
– Insert the brake linings.
Info
Ensure that the brake linings are correctly positioned in the retaining spring.
C00034-10
– Mount and tighten screw 1.
Guideline
Screw, brake linings M6 10 Nm (7.4 lbf ft)
– Mount lock washer 2.
–
Install the front wheel. x ( p. 58)
12.10 Checking the free travel of the foot brake lever
Warning
Danger of accidents Brake system failure.
– If there is no free travel on the foot brake lever, pressure builds up on the rear brake circuit. The rear brake can fail due to
overheating. Adjust the free travel on foot brake lever according to specifications.
