KTM 65 SX - Removing the Shock Absorber; Installing Shock Absorber

11 SERVICE WORK ON THE CHASSIS 35

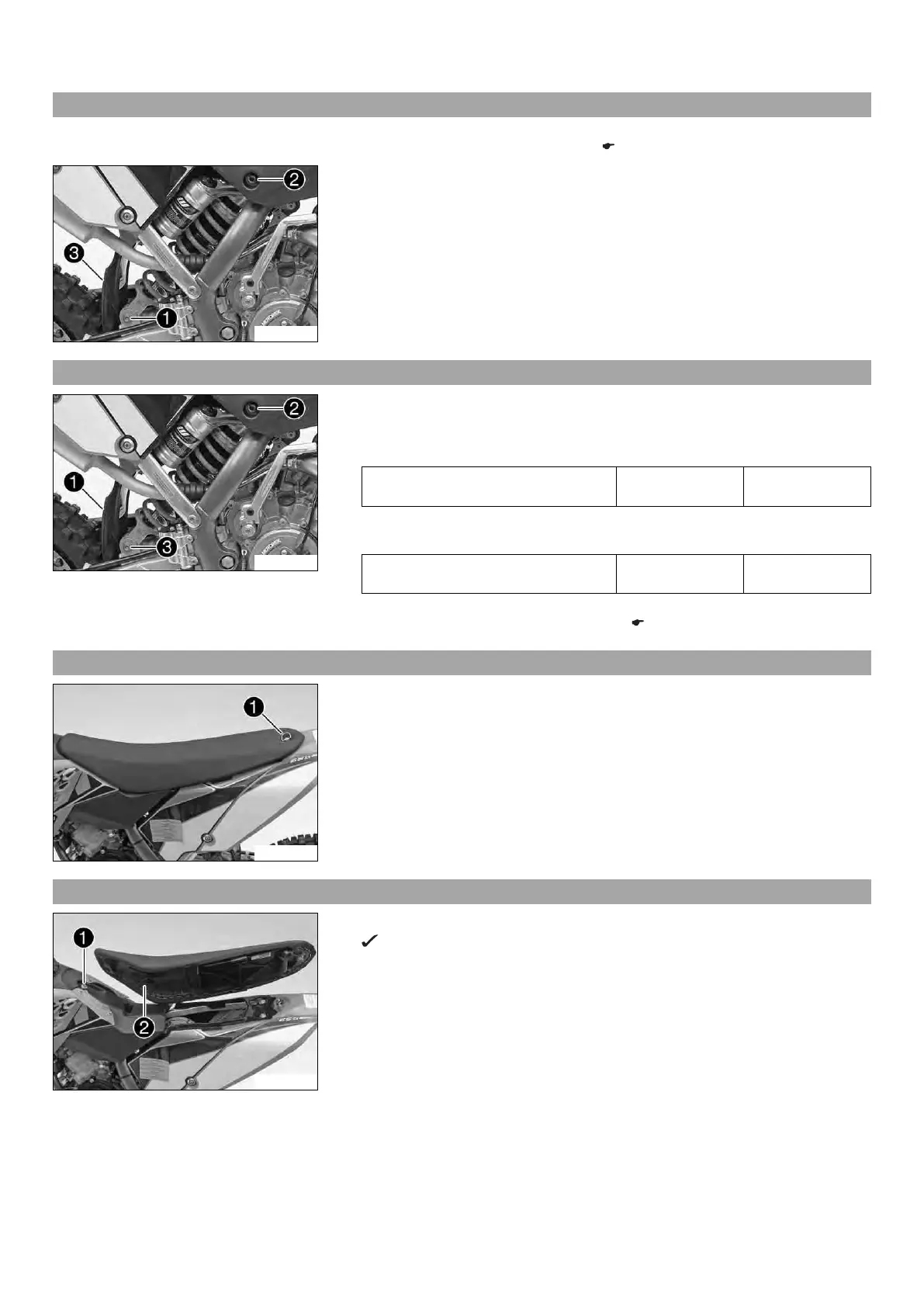

11.18 Removing the shock absorber x
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 27)
602676-10
Main work
– Remove screw 1 and lower the rear wheel with the swingarm as far as possible
without blocking the rear wheel. Fix the rear wheel in this position.
– Remove screw 2, push splash protector 3 to the side, and remove the shock
absorber.
11.19 Installing shock absorber x
602676-11
Main work
– Push splash protector 1 to the side and position the shock absorber. Mount and
tighten screw 2.
Guideline
Screw, top shock absorber M10 45 Nm
(33.2 lbf ft)
– Mount and tighten screw 3.
Guideline
Screw, bottom shock absorber M10 45 Nm
(33.2 lbf ft)
Finishing work
– Remove the motorcycle from the lift stand. ( p. 27)
11.20 Removing the seat
602681-10
– Open quick release 1 and raise the rear of the seat.
– Pull back the seat and remove it.
11.21 Mounting the seat
602682-10
– Hook the seat onto screw 1 and lower the seat at the rear while pushing it forward.
Projection 2 hooks into the fuel tank.
