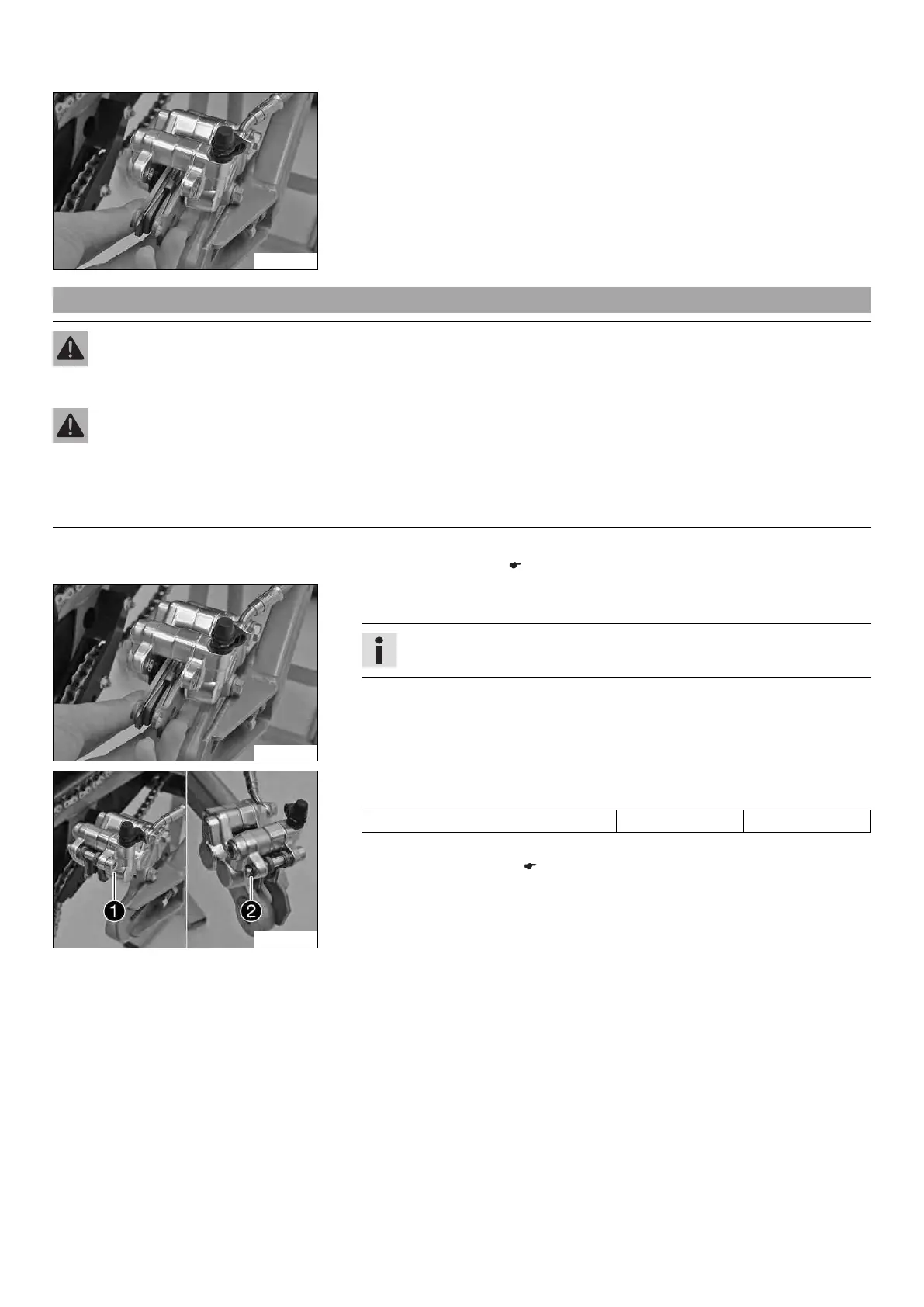

12 BRAKE SYSTEM 57
700430-01
– Remove the brake linings.
– Clean brake caliper and brake caliper support.
12.18 Installing the rear brake linings x
Warning
Danger of accidents Reduced braking efficiency due to oil or grease on the brake discs.
– Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary.
Warning
Danger of accidents Reduced braking efficiency due to use of non-approved brake linings.
– Brake linings available from accessory suppliers are often not tested and approved for use on KTM vehicles. The construc-
tion and friction factor of the brake linings and therefore the brake power can differ considerably from the original KTM
brake linings. If brake linings are used that differ from the originals, there is no guarantee that they comply with the origi-
nal license. The vehicle no longer corresponds to the condition at delivery, and the warranty is no longer valid.
Preparatory work
– Check the brake discs. ( p. 48)
700430-01
Main work
– Insert the brake linings.
Info
Ensure that the brake linings are correctly positioned in the retaining spring.
700429-01
– Mount screw 1.
Guideline
Screw, brake linings M6 10 Nm (7.4 lbf ft)
– Mount lock washer 2.
–
Install the rear wheel. x ( p. 59)
– Operate the foot brake lever repeatedly until the brake linings lie on the brake disc
and there is a pressure point.
