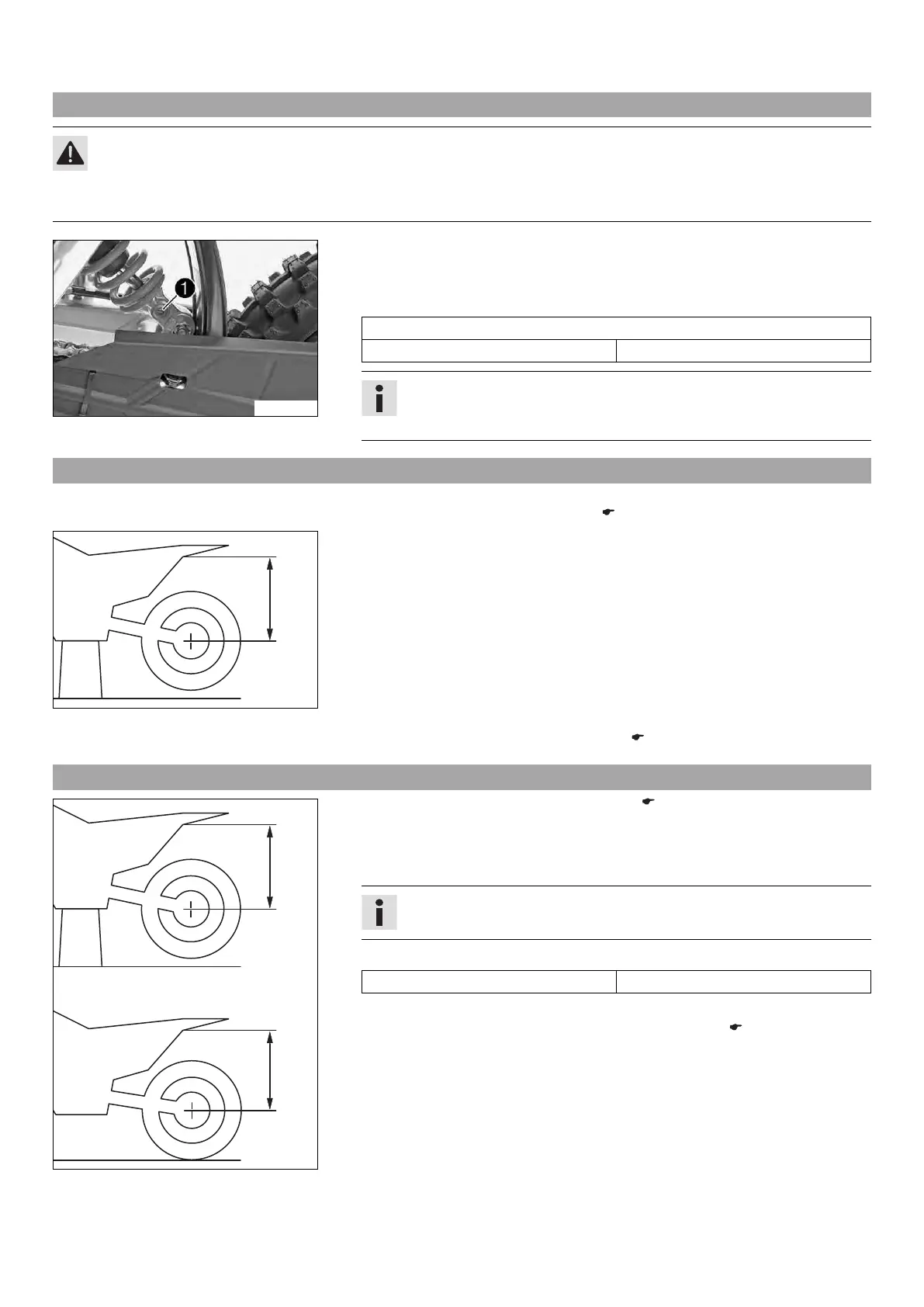

10 TUNING THE CHASSIS 23
10.4 Adjusting the rebound damping of the shock absorber
Caution
Danger of accidents Disassembly of pressurized parts can lead to injury.
– The shock absorber is filled with high density nitrogen. Adhere to the description provided. (Your authorized KTM workshop
will be glad to help.)
602660-10
– Turn adjusting screw 1 clockwise up to the last perceptible click.
– Turn back counterclockwise by the number of clicks corresponding to the shock
absorber type.
Guideline
Rebound damping
Standard 12 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce damp-
ing.
10.5 Measuring rear wheel sag unloaded
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 27)
0
0
A
A
400988-10
Main work
– Measure the distance – as vertical as possible – between the rear axle and a fixed
point, for example, a mark on the side cover.
– Make a note of the value as measurement A.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 27)
10.6 Checking the static sag of the shock absorber
0
0
A
A
0
0
BB
400989-10
– Measure distance A of rear wheel unloaded. ( p. 23)
– Hold the motorcycle in a vertical position with the assistance of another person.
– Measure the distance between the rear axle and the fixed point again.
– Make a note of the value as measurement B.
Info
The static sag is the difference between measurements A and B.
– Check the static sag.
Static sag 33 mm (1.3 in)
» If the static sag is less or more than the specified value:
–
Adjust the spring preload of the shock absorber. x ( p. 24)
