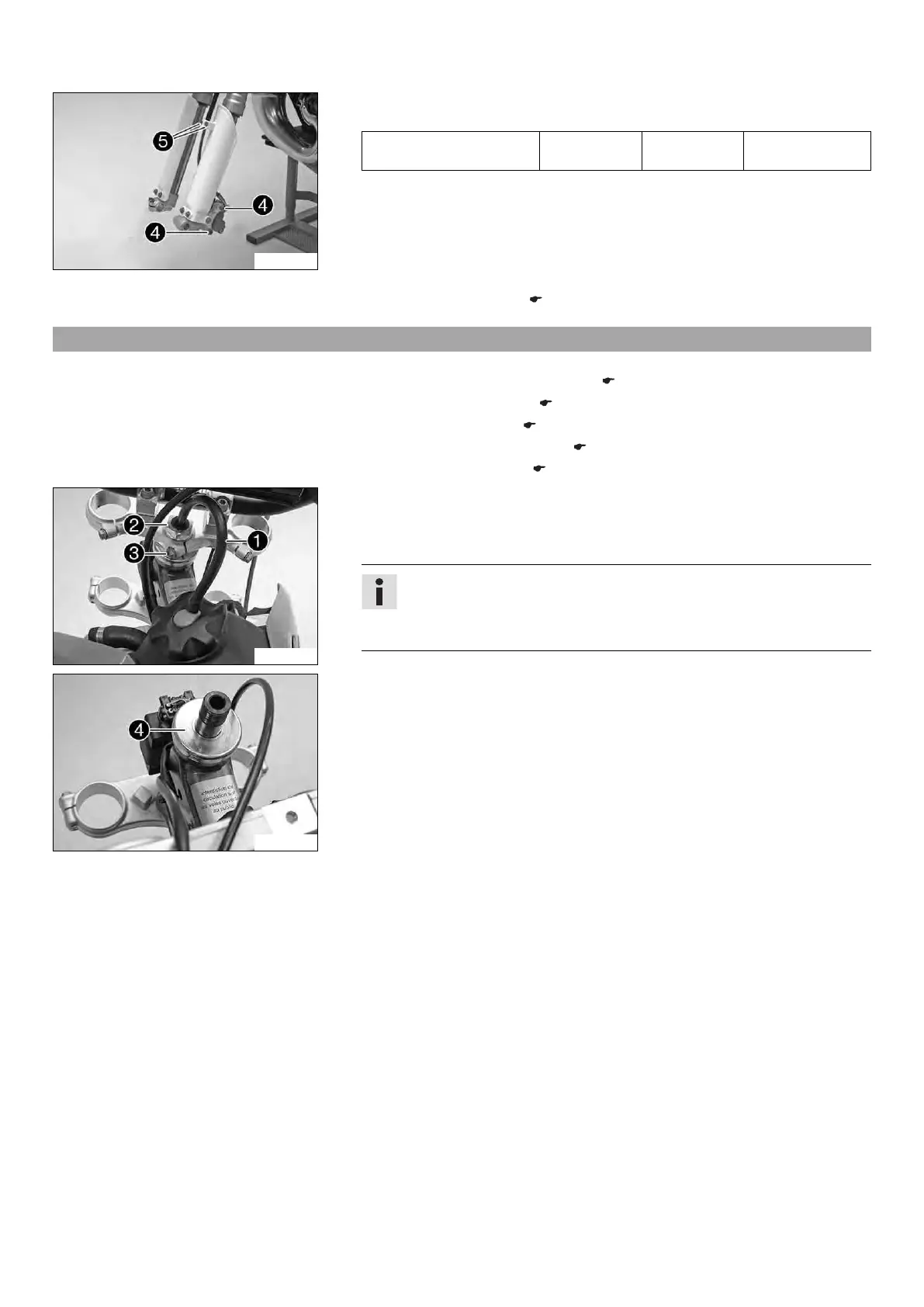

11 SERVICE WORK ON THE CHASSIS 30
C00006-11
– Position brake caliper, mount and tighten screws 4.
Guideline
Screw, brake caliper M8 20 Nm
(14.8 lbf ft)
Loctite
®
243™
– Position the brake line. Mount the clamp and screws 5.
Finishing work
–
Install the front wheel. x ( p. 58)
11.9 Removing the lower triple clamp x
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 27)
–
Remove the front wheel. x ( p. 58)
–
Remove the fork legs. x ( p. 29)
– Dismount the start number plate. ( p. 33)
– Dismount the front fender. ( p. 34)
602680-10
Main work
– Remove fuel tank breather 1.
– Remove nut 2. Remove screw 3, take off top triple clamp with the handlebar and
place it on one side.
Info
Protect the motorcycle and its attachments against damage by covering
them.
Do not bend the cables and lines.
602665-10
– Remove protective ring 4.
– Remove the lower triple clamp with the steering stem.
– Remove the upper steering head bearing.
