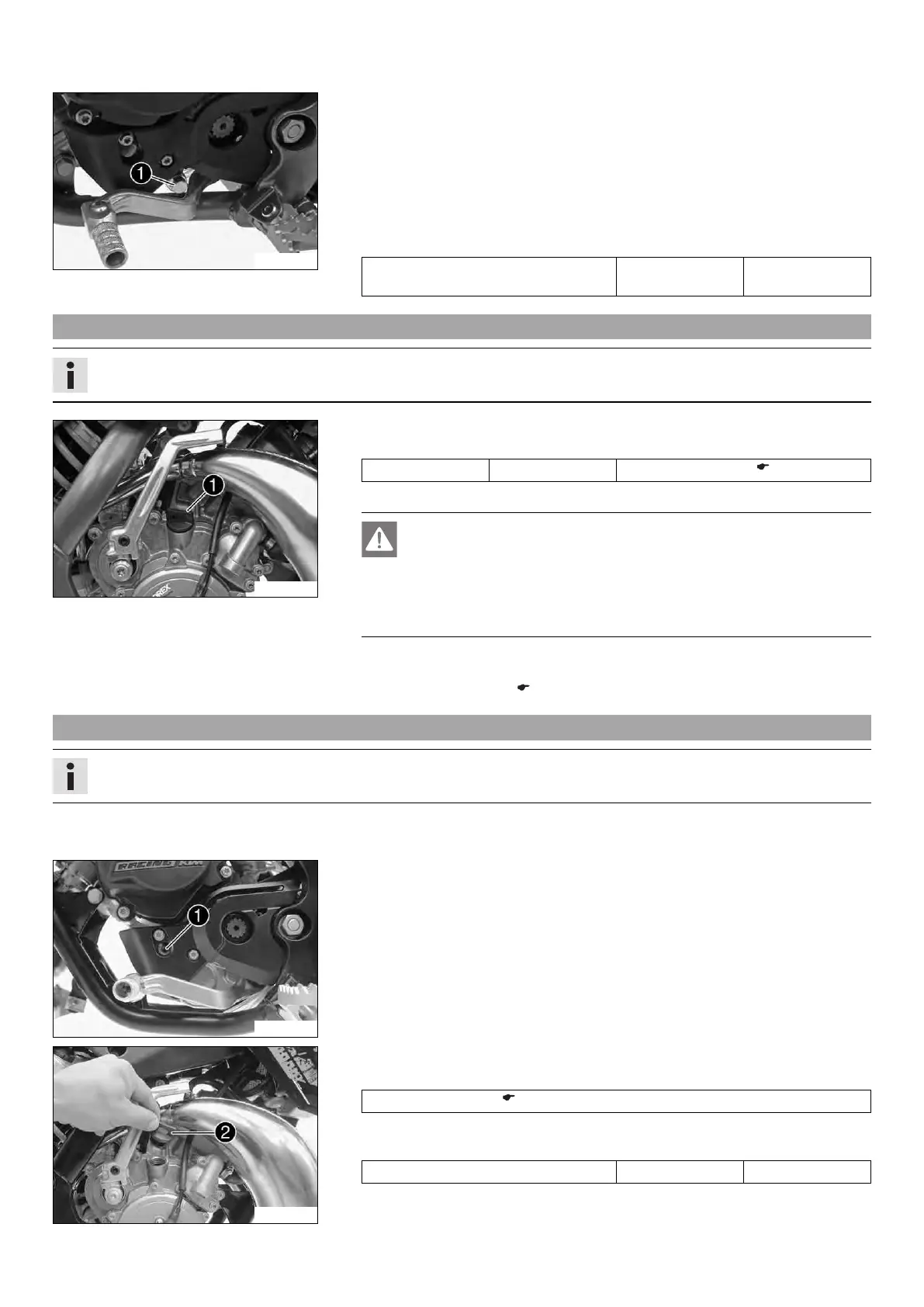

16 SERVICE WORK ON THE ENGINE 69
601967-10
Main work
– Place a suitable container under the engine.
– Remove gear oil drain plug 1 with magnet.
– Completely drain the gear oil.
– Clean the gear oil drain plug with the magnet thoroughly.
– Clean the sealing surface on the engine.
– Mount the gear oil drain plug with magnet and the seal ring and tighten it.
Guideline
Oil drain plug with magnet M12x1.5 20 Nm
(14.8 lbf ft)
16.4 Filling up with gear oil x
Info
Too little gear oil or poor-quality oil results in premature wear of the transmission.
601968-10
Main work
– Remove screw cap 1 and fill up with gear oil.
Gear oil 0.50 l (0.53 qt.) Engine oil (15W/50) ( p. 81)
– Mount and tighten screw cap.
Danger
Danger of poisoning Exhaust gases are toxic and inhaling them may result
in unconsciousness and/or death.
– When running the engine, always make sure there is sufficient ventila-
tion, and do not start or run the engine in an enclosed space without an
effective exhaust extraction system.
– Start the engine and check that it is oil-tight.
Finishing work
– Check the gear oil level. ( p. 68)
16.5 Adding gear oil x
Info
Too little gear oil or poor-quality gear oil results in premature wear of the transmission.
Preparatory work
– Stand the motorcycle upright on a horizontal surface.
300661-10
Main work
– Remove the screw 1 from the opening used to check the gear oil level.
300660-11
– Remove screw cap 2.
– Add gear oil until it flows out of the bore of the gear oil level screw.
Engine oil (15W/50) ( p. 81)
– Mount and tighten the screw in the opening used to check the gear oil level.
Guideline
Screw, gear oil level check M6 6 Nm (4.4 lbf ft)
– Mount and tighten screw cap 2.
