11 SERVICE WORK ON THE CHASSIS 36
602681-11
– Close quick release 3.

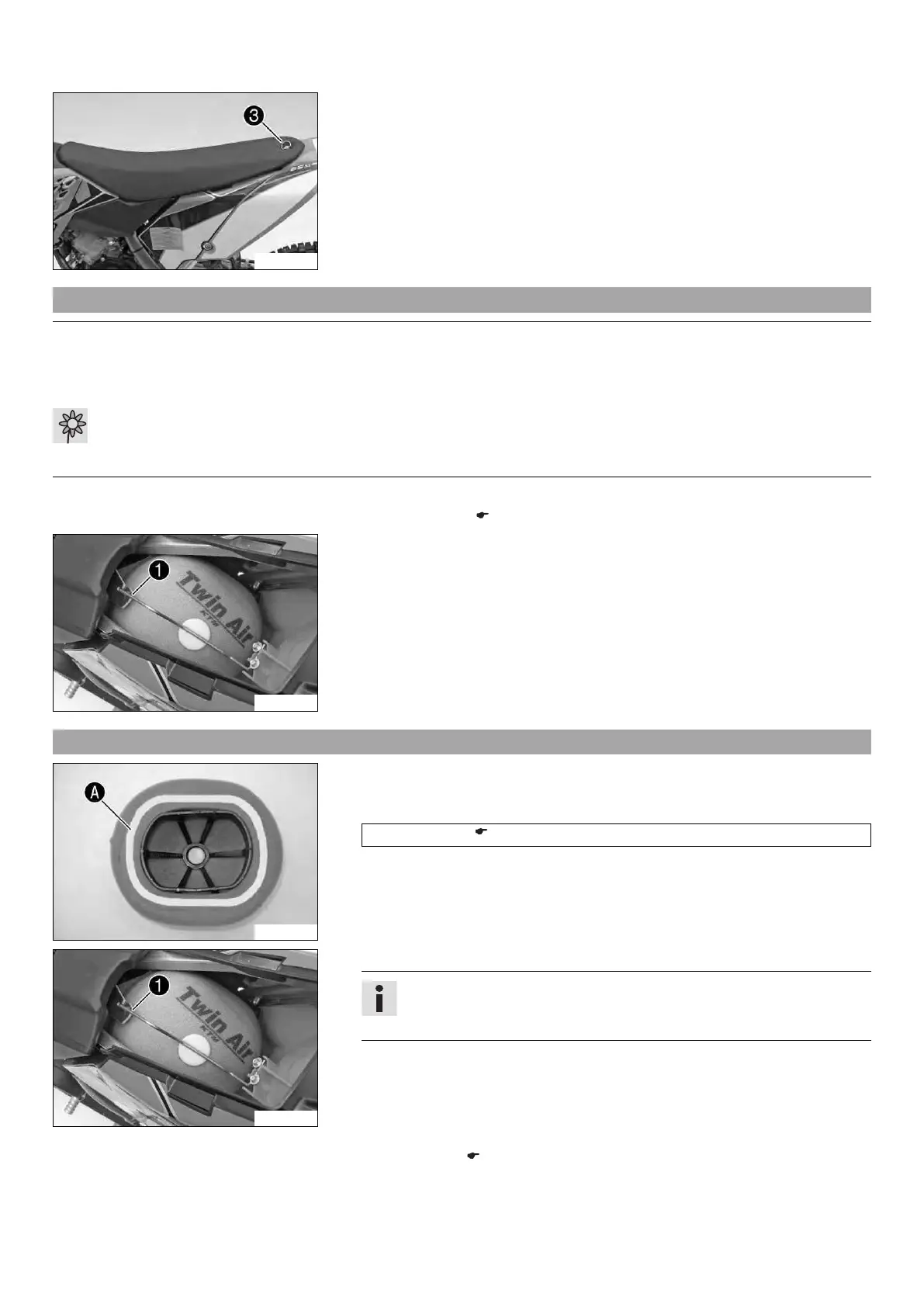

11.22 Removing the air filter x
Note
Engine failure Unfiltered intake air has a negative effect on the service life of the engine.
– Never ride the vehicle without an air filter since dust and dirt can get into the engine and result in increased wear.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Preparatory work
– Remove the seat. ( p. 35)
602683-10
Main work
– Unhook the air filter holder 1 and swing it to the side. Remove the air filter with
the air filter support.
– Remove the air filter from the air filter support.
11.23 Installing the air filter x
100818-10
Main work
– Mount the clean air filter onto the air filter support.
– Grease the air filter in area A.
Long-life grease ( p. 83)
602683-10
– Put in both parts together, position them and fix them with the air filter support 1.
Info
If the air filter is not correctly mounted, dust and dirt can enter the engine
and cause damage.
Finishing work
– Mount the seat. ( p. 35)
