MAINTENANCE WORK ON CHASSIS AND ENGINE 59
600074-11

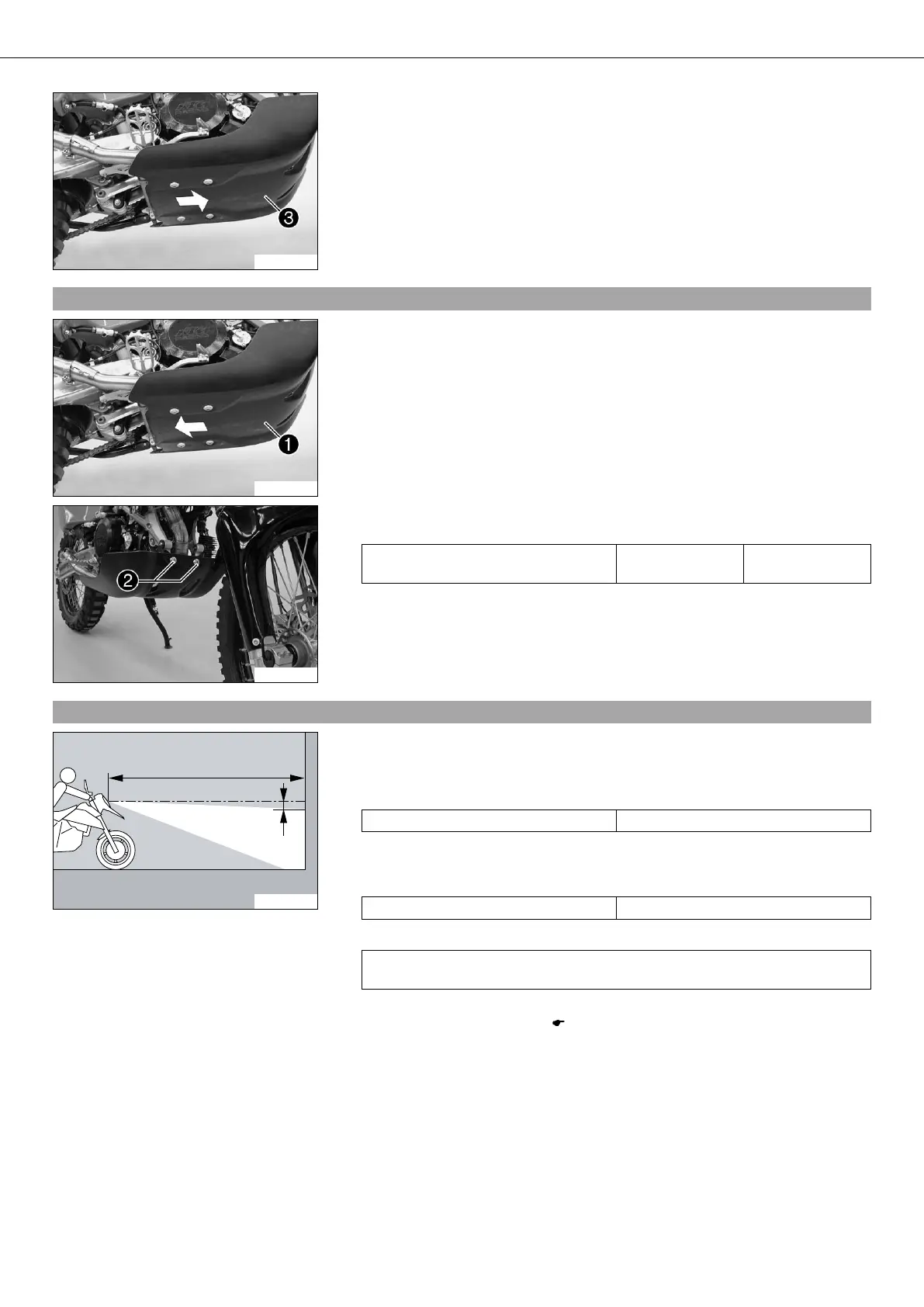

– Pull the motor guard  forward out of the frame.
8.68Mounting the motor guard
600074-10
– Check parts for damage and wear. Replace damaged or worn parts.
– Insert the motor guard  into the frame.
600073-11
– Fully tighten screw .
Specification
Screw, motor guard M8 25 Nm
(18.44 lbf ft)
8.69Checking the headlamp setting
400355-10
– On a light-colored wall in front of which there is a horizontal surface, make a mark
at the height of the center of the low beam headlamp.
– Make another mark at a distance  below the first mark.
Specification
Distance  5 cm (1.97 in)
– Position yourself with the motorcycle at a distance  in front of the wall and
switch the low beam on.
Specification
Distance  5 m (16.4 ft)
– Check the headlamp setting.
For a ready-to-operate motorcycle with a rider, the light-dark boundary must lie
exactly on the lower mark.
» If the light-dark boundary does not meet specifications:
– Adjust the headlamp. ( P. 60)
