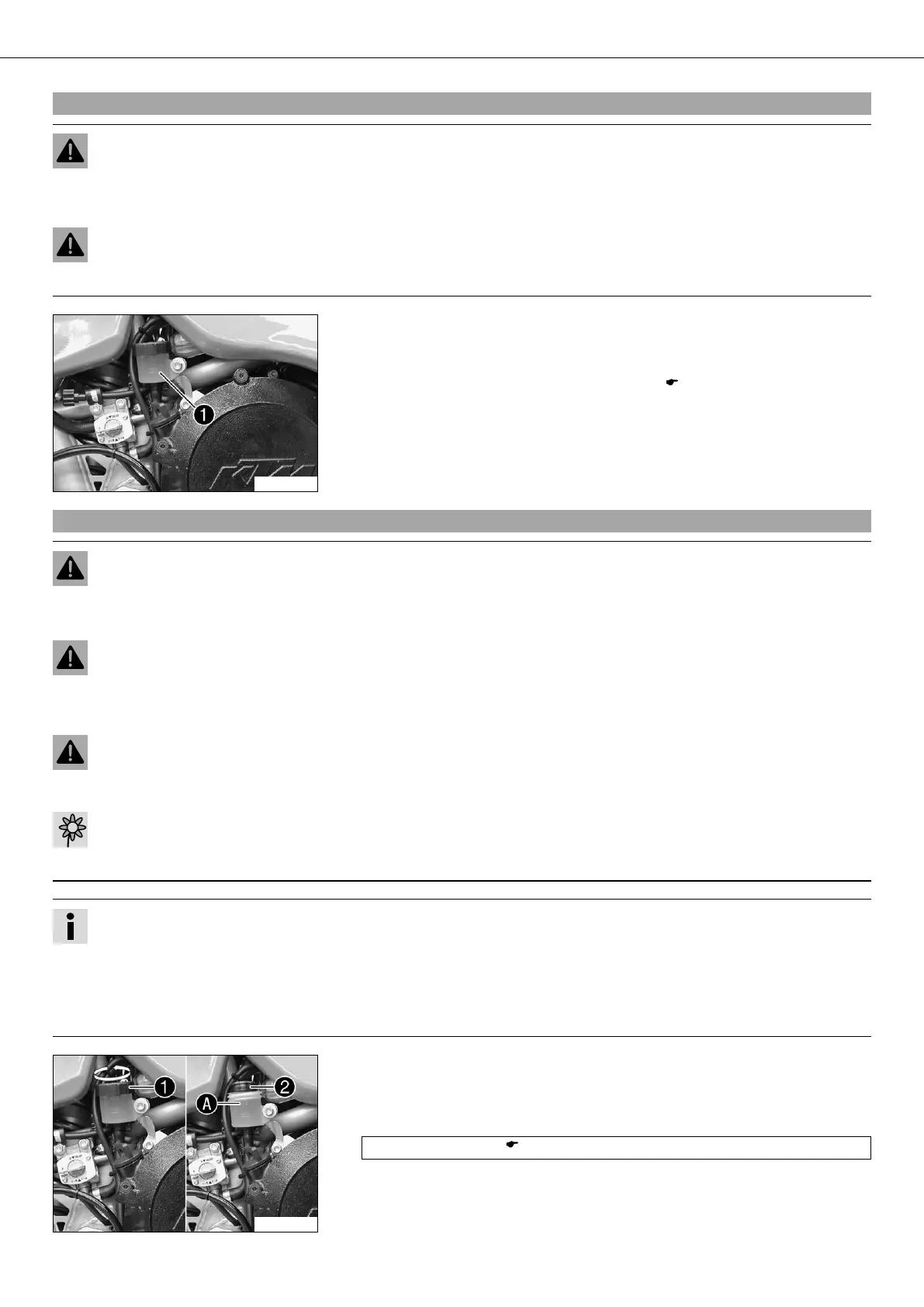

KTM 690 - Checking Rear Brake Fluid Level; Topping up Brake Fluid of Front Brake

MAINTENANCE WORK ON CHASSIS AND ENGINE 47
8.46Checking rear brake fluid level
Warning
Danger of accidents Brake system failure.
– If the brake fluid level falls below the MIN mark, this indicates a leakage in the brake system or worn-out brake linings.
Have the brake system checked in an authorized KTM workshop, and do not ride any further.
Warning
Danger of accidents Reduced braking due to old brake fluid.
– Have the front and rear brake fluid replaced according to the service plan in an authorized KTM workshop.
600060-10
– Stand the vehicle upright.
– Check the brake fluid level in the brake fluid reservoir .
» When the fluid level reaches the MIN mark :
– Top up the brake fluid of the rear brake. ( P. 47)
8.47Topping up brake fluid of front brake x
Warning
Danger of accidents Brake system failure.
– If the brake fluid level falls below the MIN mark, this indicates a leakage in the brake system or worn-out brake linings.
Have the brake system checked in an authorized KTM workshop, and do not ride any further.
Warning
Skin irritations Brake fluid can cause skin irritation on contact.
– Avoid contact with skin and eyes, and keep out of the reach of children.
– If brake fluid gets into your eyes, rinse thoroughly with water and contact a doctor immediately.
Warning
Danger of accidents Reduced braking due to old brake fluid.
– Have the front and rear brake fluid replaced according to the service plan in an authorized KTM workshop.
Warning
Environmental hazard Problem materials cause environmental damage.
– Dispose of oil, grease, filters, fuel, cleaning substances, brake fluid, batteries, etc. according to regulations.
Info
KTM recommends DOT 5.1 brake fluid from Motorex
®
. This has a higher wet boiling point than DOT 4 brake fluid and provides
greater safety for high demands.
Never user DOT 5 brake fluid! This is based on silicone oil and is colored purple. Oil seals and brake lines are not designed for
DOT 5 brake fluid.
Avoid contact between brake fluid and painted parts. Brake fluid attacks paint!
Use only clean brake fluid from a sealed container!
600061-10
– Stand the vehicle upright.
– Turn the brake fluid cap  in the direction of the arrow and remove it with mem-
brane .
– Top up the brake fluid to level .
Brake fluid DOT 5.1 ( P. 96)
– Check parts for damage and wear. Replace damaged or worn parts.
– Insert the membrane  into the brake fluid reservoir and mount the brake fluid
cap .
– Clean up overflowed or spilt brake fluid immediately with water.
