KTM 690 - Cleaning the Oil Screen

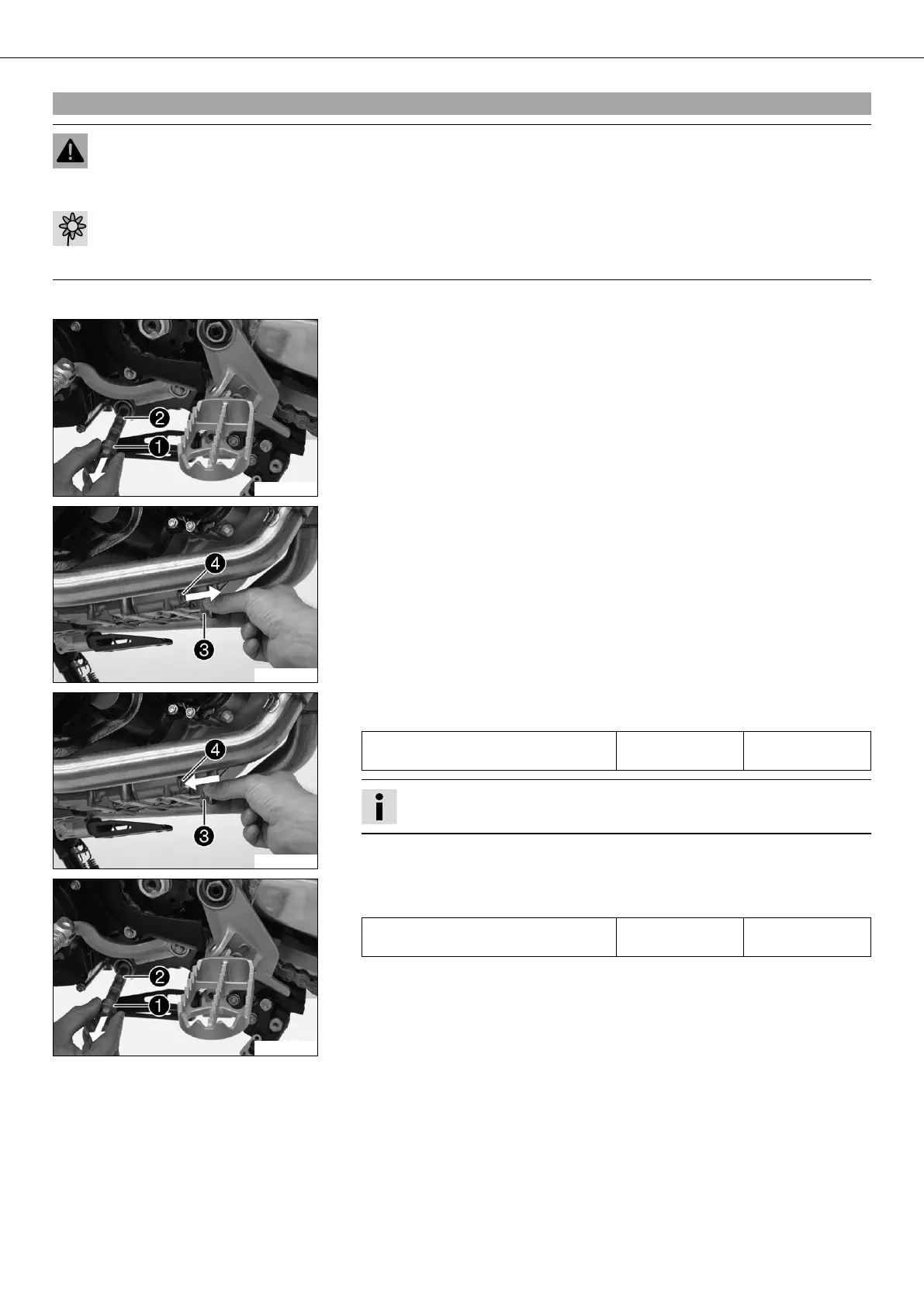

MAINTENANCE WORK ON CHASSIS AND ENGINE 69
8.87Cleaning the oil screen x
Warning
Danger of scalding Engine oil and gear oil get very hot when the motocycle is driven.
– Wear suitable protective clothing and gloves. If you scald yourself, hold the affected area under cold water immediately.
Warning
Environmental hazard Problem materials cause environmental damage.
– Dispose of oil, grease, filters, fuel, cleaning substances, brake fluid, batteries, etc. according to regulations.
– Place a suitable container under the engine.
600077-10
– Remove plug  with oil screen  and O-ring.
600079-10
– Remove plug  with oil screen  and O-ring.
– Completely drain the remaining engine oil.
– Thoroughly clean parts and sealing areas.
– Check parts for damage and wear. Replace damaged or worn parts.
600079-11
– Fit and tighten plug  with oil screen  and O-ring.
Specification
Plug, oil screen M20x1.5 15 Nm
(11.06 lbf ft)
Info
Plugs  and  and oil screens  and  are identical.
600077-10
– Fit and tighten plug  with oil screen  and O-ring.
Specification
Plug, oil screen M20x1.5 15 Nm
(11.06 lbf ft)
