KTM 890 ADVENTURE R 2023 - Installing the Battery Cover; Removing Left Fuel Tank Spoiler

SERVICE WORK ON THE CHASSIS 13
103

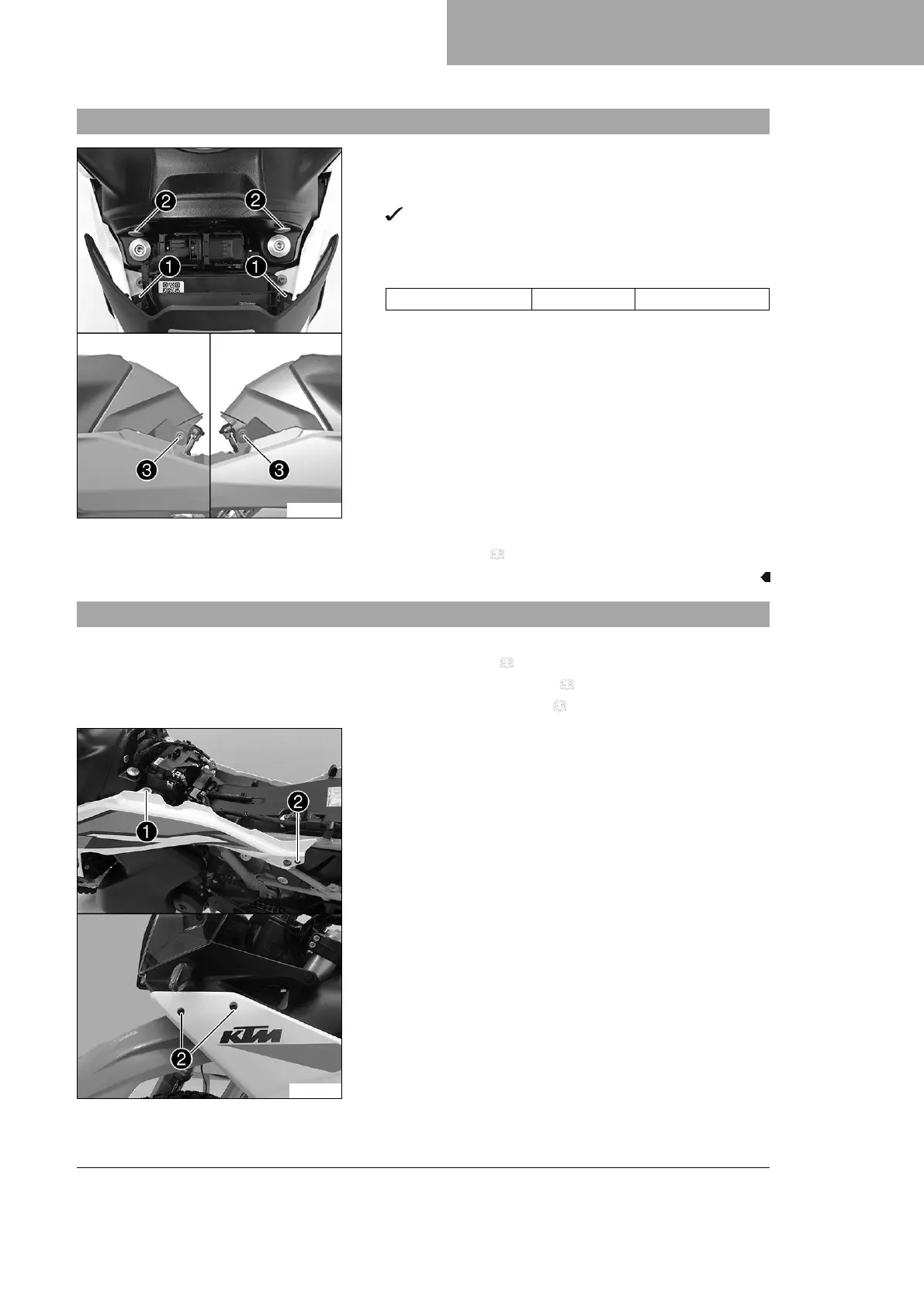

13.17 Installing the battery cover
Z03265-10
Main work
–
Position the battery cover with holding lugs
1
on
bushings
2
and push downward.
The battery cover engages on the left and right under the
fuel tank spoiler.
–
Mount screws
3
with the bushings and tighten.
Guideline
Screw, seat fixing M6 6 Nm (4.4 lbf ft)
Finishing work
– Mount the seat. ( p. 95)
13.18 Removing left fuel tank spoiler
Preparatory work
– Remove the seat. ( p. 95)
– Remove the left side cover. ( p. 100)
– Remove the battery cover. ( p. 102)
I00300-10
Main work
–
Remove screw
1
.
–
Remove screws
2
.
