ELECTRICAL SYSTEM 16
137
Tip
Insert spare fuse
4
in the fuse box so that it is
available if needed.
Mount the protection cap.
Finishing work
Mount the seat. ( p. 95)

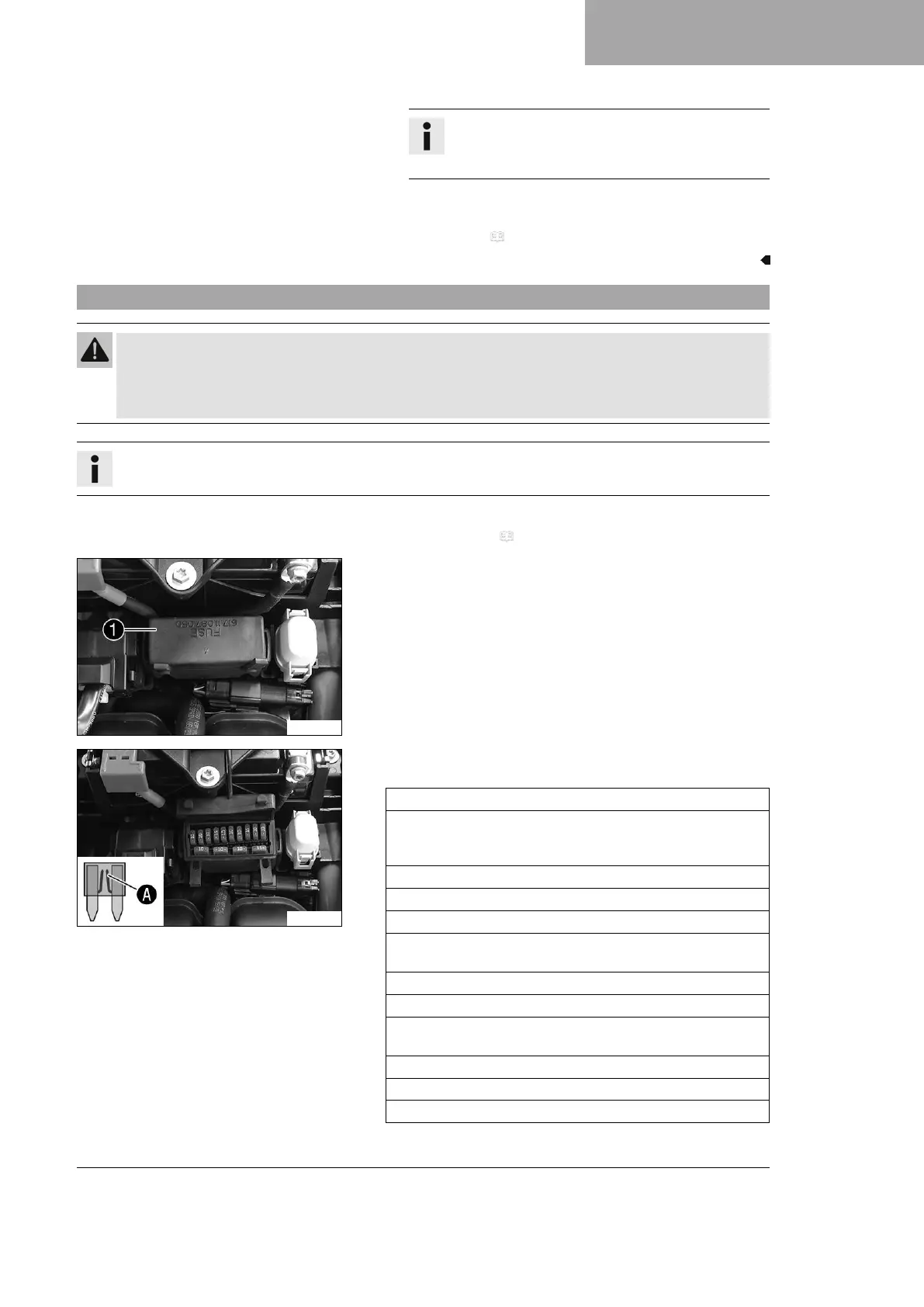

16.7 Changing the fuses of individual electrical power consumers
Warning
Fire hazardIncorrect fuses overload the electrical system.
Only use fuses with the required ampere value.
Do not bypass or repair fuses.
Info
The fuse box containing the fuses of individual electrical power consumers is located under the seat.
Preparatory work
Remove the seat. ( p. 95)
F03305-10
Main work
Open fuse box cover
1
.
F03306-10
Remove the faulty fuse.
Guideline
Fuse 1 - 10 A - ignition, alarm system (optional)
Fuse 2 - 10 A - ignition, engine control unit, electronic fuel
injection, fuel vapor retention system, lambda sensor, immo-
bilizer
Fuse 3 - 10 A - fuel pump
Fuse 4 - 15 A - radiator fan
Fuse 5 - 10 A - horn, combination instrument, brake light
Fuse 6 - 10 A - high beam, low beam, position light, tail
light, license plate lamp
Fuse 7 - 10 A - ACC1
Fuse 8 - 15 A - ACC2, HCU (optional)
Fuse 9 - 10 A - ABS control unit, diagnostics connector, 5D
sensor, TPMS (function optional)
Fuse 10 - 10 A - light control unit
Fuse SPARE - 10 A - spare fuses
Fuse SPARE - 15 A - spare fuses

Table of Contents

Other manuals for KTM 890 ADVENTURE R 2023

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the KTM 890 ADVENTURE R 2023 and is the answer not in the manual?

KTM 890 ADVENTURE R 2023 Specifications

General IconGeneral
Engine Type2-cylinder, 4-stroke, parallel twin
Displacement889 cc
Transmission6-speed
Front SuspensionWP XPLOR-USD, Ø 48 mm
Bore x Stroke90.7 mm x 68.8 mm
Compression Ratio13.5:1
Fuel SystemElectronic Fuel Injection
Final DriveChain
Front Tire90/90-21
Rear Tire150/70-18
CoolingLiquid cooled
LubricationForced oil lubrication with 2 oil pumps
FrameChromium-Molybdenum-Steel frame using the engine as stressed element, powder coated
Power105 hp (77 kW) @ 8, 000 rpm
Torque100 Nm
Fuel Tank Capacity20 liters
Seat Height880 mm (34.6 in)
Dry Weight196 kg (432 lb)
Rear SuspensionWP XPLOR PDS shock absorber
Front Brake2x radially mounted 4-piston calipers
Rear Brake2-piston floating caliper
ABSBosch 9.1 MP (incl. Cornering-ABS and offroad mode)
Wheels Front21"
Wheels Rear18"
Chain520
Steering Head Angle63.5°
Ground Clearance263 mm
