KTM 890 ADVENTURE R 2023 User Manual

BRAKE SYSTEM 14
119
A00666-10

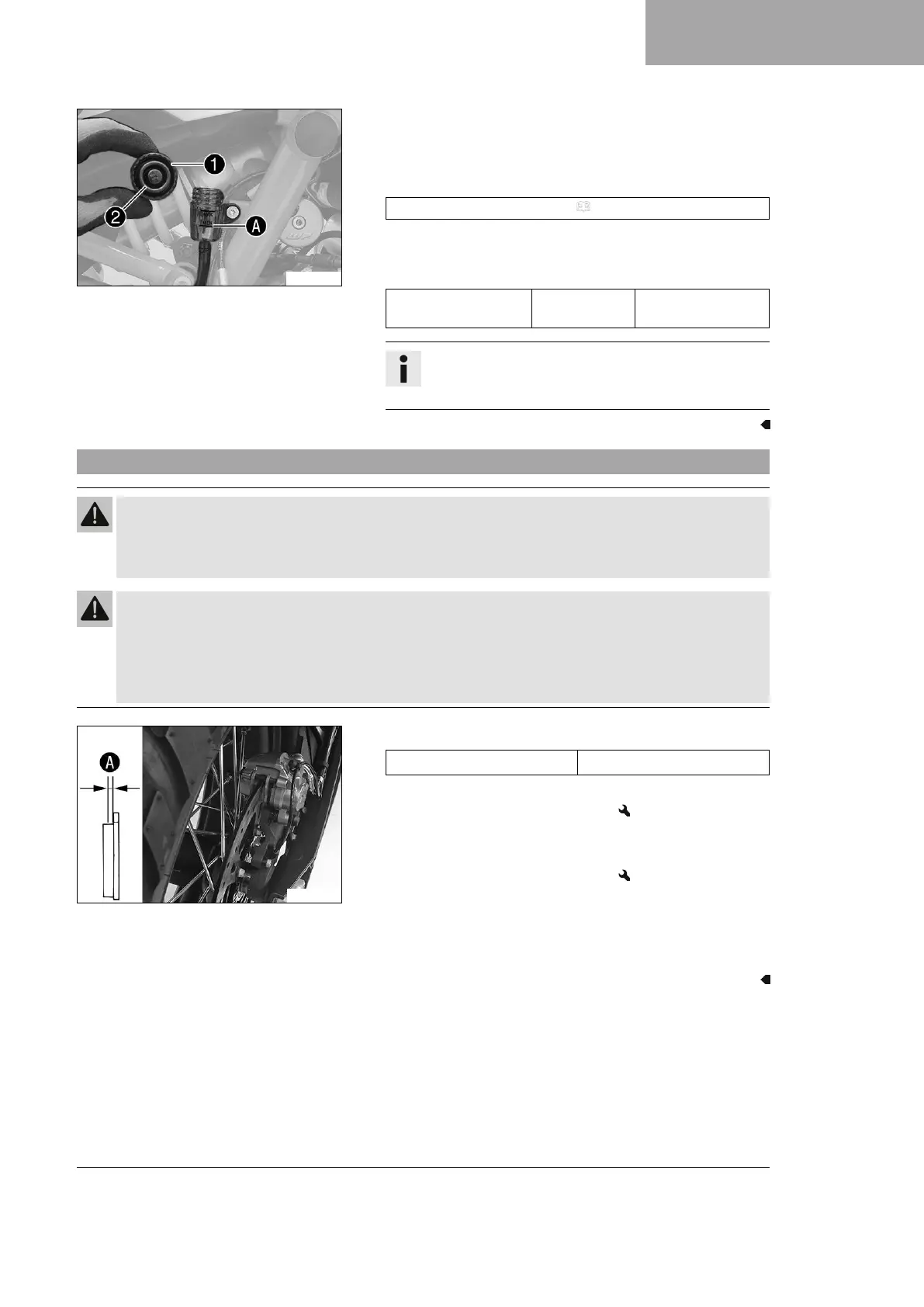

Main work
– Position the vehicle vertically.
–
Remove screw cover
1
with insert and membrane
2
.
–
Add brake fluid up to the MAX marking
A
.
Brake fluid DOT 4 / DOT 5.1 ( p. 170)
–
Mount and tighten screw cover
1
with the insert and mem-
brane
2
.
Guideline
Brake fluid reservoir
cover, rear
- 1.5 Nm
(1.11 lbf ft)
Info
Use water to immediately clean up any brake fluid that
has overflowed or spilled.
14.9 Checking that the brake linings of the rear brake are secured
Warning
Danger of accidents Worn-out brake linings reduce the braking effect.
– Ensure that worn-out brake linings are replaced immediately. (Your authorized KTM workshop will be
glad to help.)
Warning
Danger of accidents Damaged brake discs reduce the braking effect.
If the brake linings are not changed in time, the brake lining carriers grind against the brake disc. As a
consequence, the braking effect is greatly reduced and the brake discs are destroyed.
– Check the brake linings regularly.
F02096-10
–
Check the brake linings for minimum thickness
A
.
Minimum thickness
A
≥ 1 mm (≥ 0.04 in)
» If the minimum thickness is less than specified:
– Change the rear brake linings.
– Check the brake linings for damage and cracking.
» If there is damage or cracking:
– Change the rear brake linings.
– Check that the brake linings are secured.
» If the brake linings are not secured correctly:
– Secure brake linings, replace with new parts if neces-
sary.

KTM 890 ADVENTURE R 2023 Specifications

General

Engine Type	2-cylinder, 4-stroke, parallel twin
Displacement	889 cc
Transmission	6-speed
Front Suspension	WP XPLOR-USD, Ø 48 mm
Bore x Stroke	90.7 mm x 68.8 mm
Compression Ratio	13.5:1
Fuel System	Electronic Fuel Injection
Final Drive	Chain
Front Tire	90/90-21
Rear Tire	150/70-18
Cooling	Liquid cooled
Lubrication	Forced oil lubrication with 2 oil pumps
Frame	Chromium-Molybdenum-Steel frame using the engine as stressed element, powder coated
Power	105 hp (77 kW) @ 8, 000 rpm
Torque	100 Nm
Fuel Tank Capacity	20 liters
Seat Height	880 mm (34.6 in)
Dry Weight	196 kg (432 lb)
Rear Suspension	WP XPLOR PDS shock absorber
Front Brake	2x radially mounted 4-piston calipers
Rear Brake	2-piston floating caliper
ABS	Bosch 9.1 MP (incl. Cornering-ABS and offroad mode)
Wheels Front	21"
Wheels Rear	18"
Chain	520
Steering Head Angle	63.5°
Ground Clearance	263 mm
