KTM 890 ADVENTURE R 2023 User Manual

12 TUNING THE CHASSIS
92

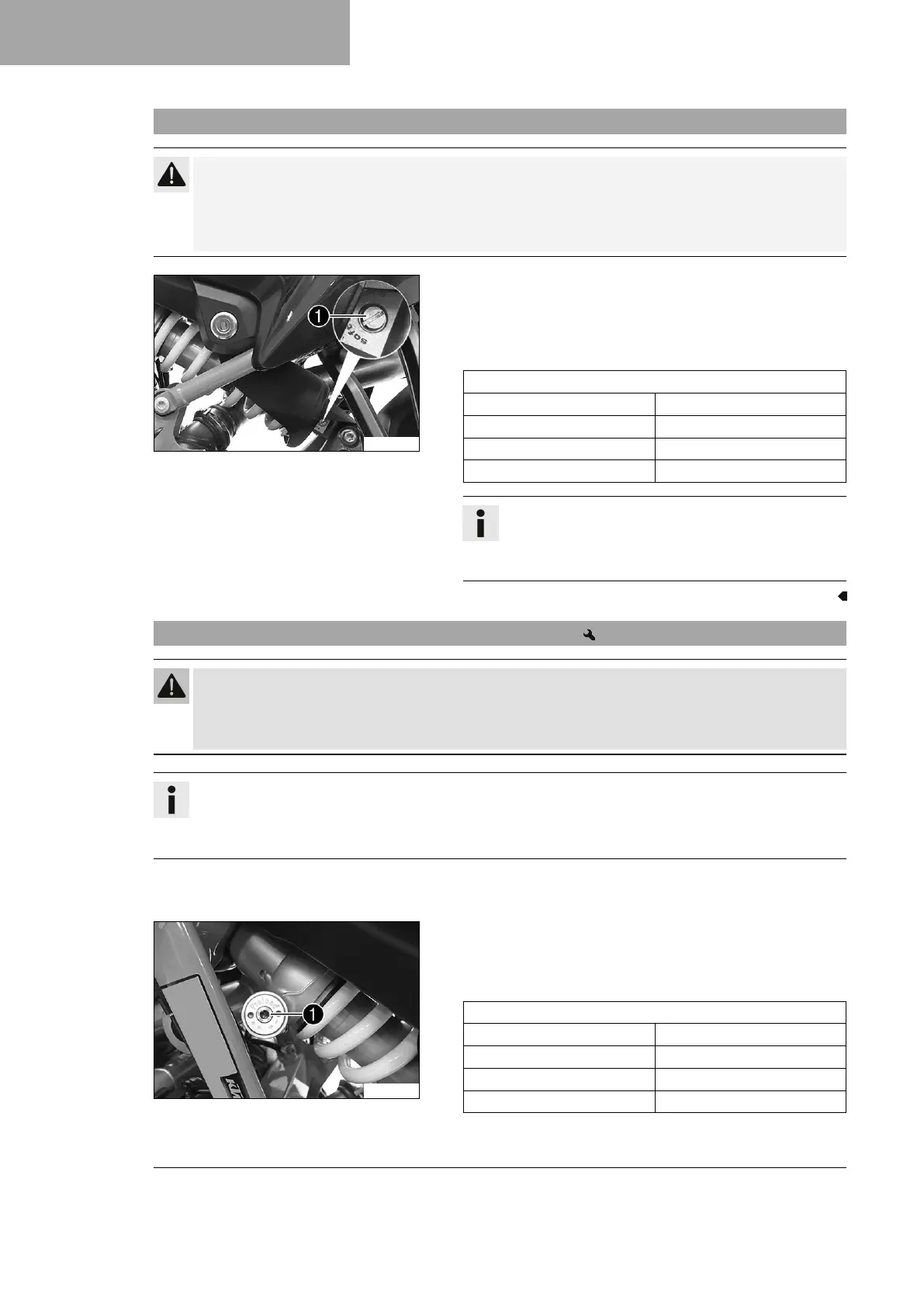

12.8 Adjusting the rebound damping of the shock absorber
Caution
Risk of injury Parts of the shock absorber will move around if the shock absorber is detached incorrectly.
The shock absorber is filled with highly compressed nitrogen.
– Please follow the description provided. (Your authorized KTM workshop will be glad to help.)
F02027-10
–
Turn adjusting screw
1
clockwise up to the last perceptible
click.
– Turn counterclockwise by the number of clicks corresponding
to the shock absorber type.
Guideline
Rebound damping
Comfort 23 clicks
Standard 15 clicks
Sport 12 clicks
Full payload 5 clicks
Info
Turn clockwise to increase the damping; turn counter-
clockwise to reduce damping when the shock absorber
rebounds.
12.9 Adjusting the spring preload of the shock absorber
Warning
Danger of accidents Modifications to the suspension setting may seriously alter the handling characteris-
tic.
– Ride slowly to start with after making adjustments to get the feel of the new handling characteristic.
Info
The spring preload defines the initial status of the spring operation on the shock absorber.
The best spring preload setting is achieved when it is set for the weight of the rider and that of any lug-
gage and a passenger, thus ensuring an ideal compromise between handling and stability.
Condition
The link fork is relieved of weight.
F02028-10
–
Turn adjusting screw
1
counterclockwise all the way.
– Turn it clockwise by the number of turns corresponding to the
shock absorber type and use.
Guideline
Spring preload - Preload Adjuster
Comfort 4 turns
Standard 4 turns
Sport 4 turns
Full payload 10 turns

KTM 890 ADVENTURE R 2023 Specifications

General

Engine Type	2-cylinder, 4-stroke, parallel twin
Displacement	889 cc
Transmission	6-speed
Front Suspension	WP XPLOR-USD, Ø 48 mm
Bore x Stroke	90.7 mm x 68.8 mm
Compression Ratio	13.5:1
Fuel System	Electronic Fuel Injection
Final Drive	Chain
Front Tire	90/90-21
Rear Tire	150/70-18
Cooling	Liquid cooled
Lubrication	Forced oil lubrication with 2 oil pumps
Frame	Chromium-Molybdenum-Steel frame using the engine as stressed element, powder coated
Power	105 hp (77 kW) @ 8, 000 rpm
Torque	100 Nm
Fuel Tank Capacity	20 liters
Seat Height	880 mm (34.6 in)
Dry Weight	196 kg (432 lb)
Rear Suspension	WP XPLOR PDS shock absorber
Front Brake	2x radially mounted 4-piston calipers
Rear Brake	2-piston floating caliper
ABS	Bosch 9.1 MP (incl. Cornering-ABS and offroad mode)
Wheels Front	21"
Wheels Rear	18"
Chain	520
Steering Head Angle	63.5°
Ground Clearance	263 mm
