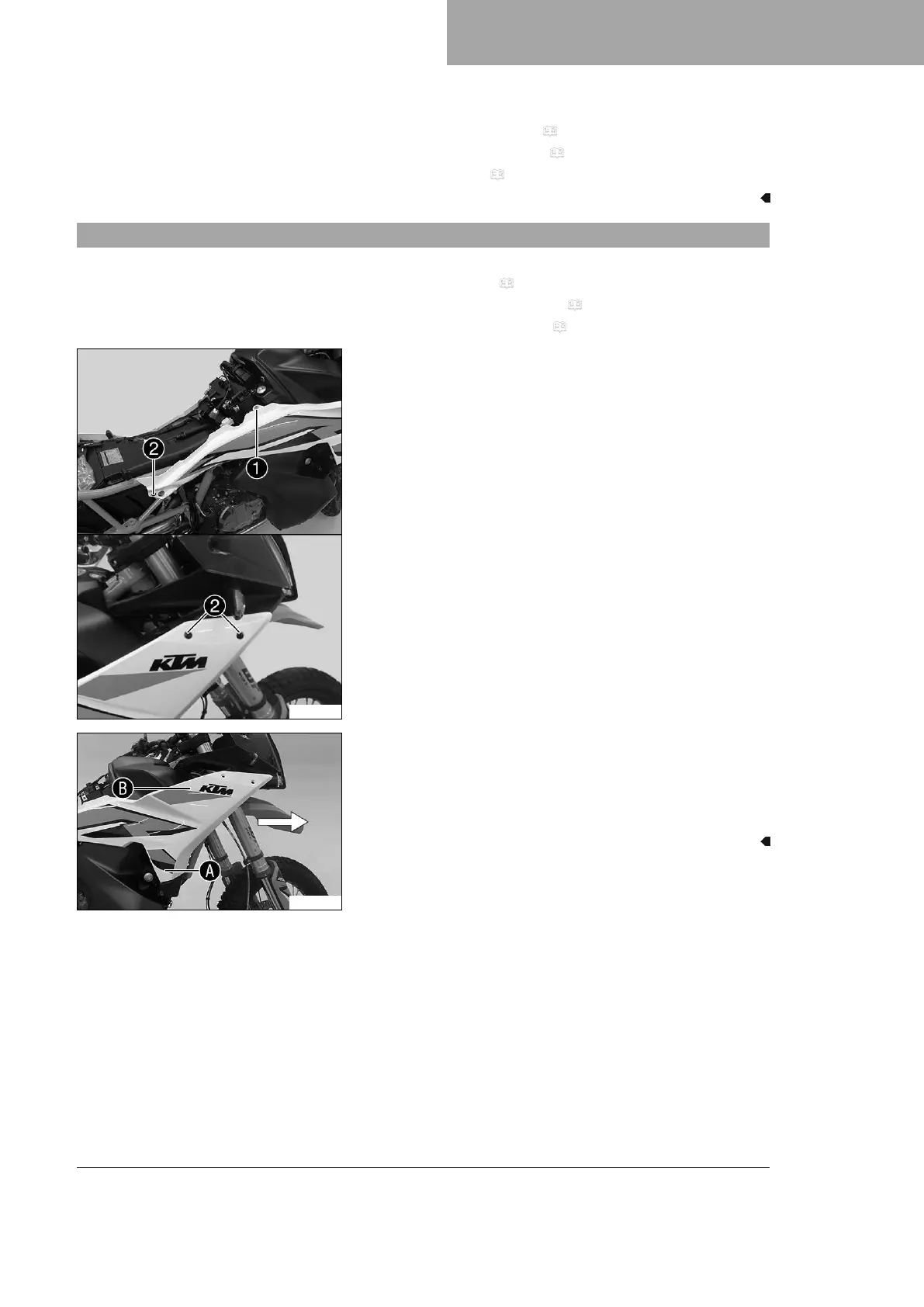

13.20 Removing the right fuel tank spoiler
Preparatory work
– Remove the seat. ( p. 95)
– Remove the right side cover. ( p. 101)
– Remove the battery cover. ( p. 102)
I00304-10
Main work
–
Remove screw
1
.
–
Remove
2
screws.
I00305-10
– Remove the fuel tank spoiler from the rubber bushing in
area
A
.
–
Pull the right fuel tank spoiler in area
B
out of the bracket.
– Pull off the right fuel tank spoiler sideways and take off toward
the front.
