KTM 890 ADVENTURE R 2023 - Installing the Left Fuel Tank Spoiler

13 SERVICE WORK ON THE CHASSIS
104
I00301-10
– Remove the left fuel tank spoiler from the rubber bushing in
area
A
.
–
Pull the left fuel tank spoiler in area
B
out of the bracket.
– Pull off the left fuel tank spoiler sideways and take off toward
the front.

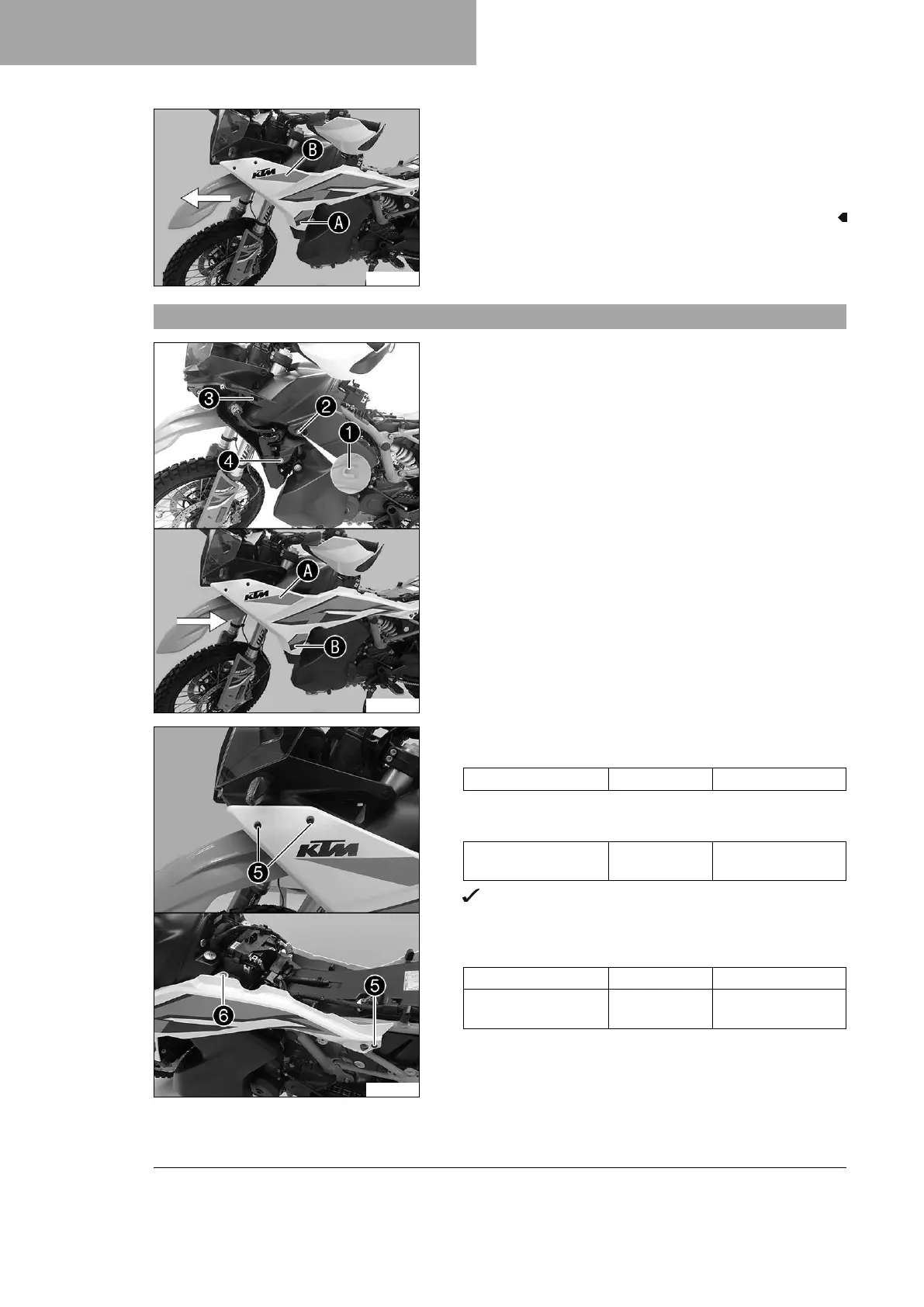

13.19 Installing the left fuel tank spoiler
I00302-10
Main work
–
Position the left fuel tank spoiler with holding lug
1
on bush-
ing
2
and push backward laterally.
–
Press the left fuel tank spoiler into bracket
3
in area
A
.
–
Press the left fuel tank spoiler into rubber bushing
4
in
area
B
.
I00303-10
–
Mount screws
5
, but do not tighten yet.
Guideline
Screw, trim M5 3 Nm (2.2 lbf ft)
–
Mount screw
6
, but do not tighten it yet.
Guideline
Screw, fuel tank
spoiler
M6 5 Nm (3.7 lbf ft)
The front edge of the left fuel tank spoiler is evenly
aligned.
– Tighten all the screws of the left fuel tank spoiler.
Guideline
Screw, trim M5 3 Nm (2.2 lbf ft)
Screw, fuel tank
spoiler
M6 5 Nm (3.7 lbf ft)
