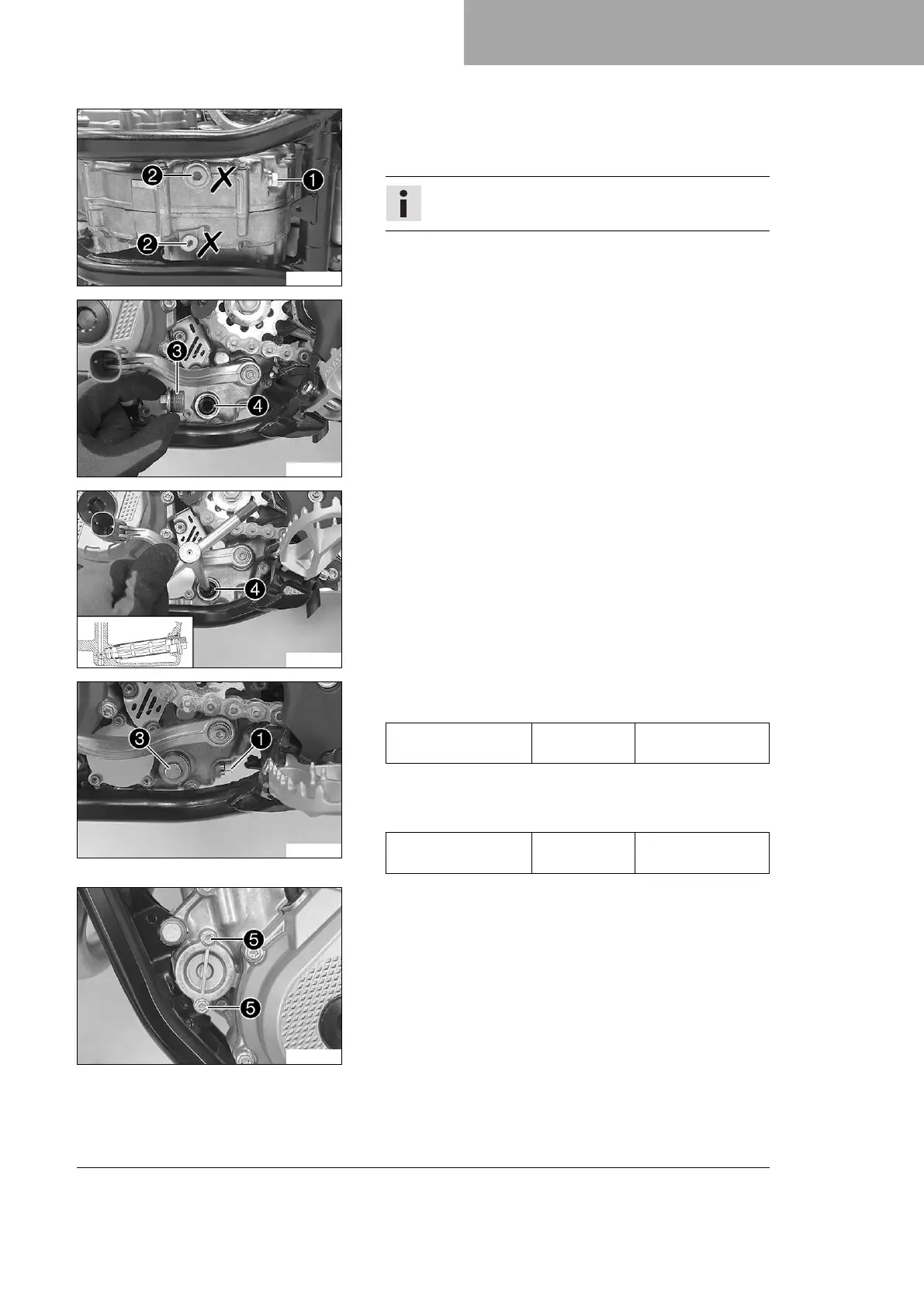

SERVICE WORK ON THE ENGINE 17
117
E01240-10
Main work
– Place a suitable container under the engine.
–
Remove oil drain plug
1
with the magnet and seal ring.
Info
Do not remove screws
2
.
E01241-10
–
Remove screw plug
3
with oil screen
4
and the O-rings.
– Completely drain the engine oil.
– Thoroughly clean the parts and sealing surfaces.
E01242-10
–
Position oil screen
4
with the O-rings on a pin wrench.
– Position the pin wrench through the drill hole of the screw plug
in the opposite section of the engine case.
– Push the oil screen all the way into the engine case.
E01243-10
–
Mount and tighten screw plug
3
with the O-ring.
Guideline
Screw plug, oil
screen
M20x1.5 15 Nm (11.1 lbf ft)
–
Mount and tighten oil drain plug
1
with the magnet and a
new seal ring.
Guideline
Oil drain plug with
magnet
M12x1.5 20 Nm (14.8 lbf ft)
E01244-10
–
Remove screws
5
. Remove the oil filter cover with the O-ring.
